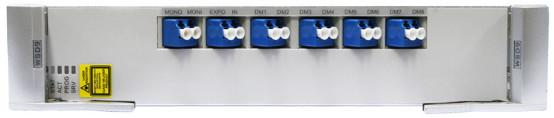

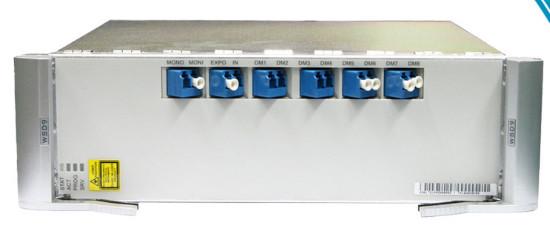

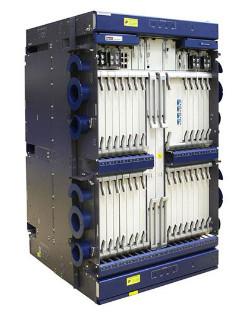

OptiX OSN 8800 TN13WSD9 9-port wavelength selective switching demultiplexing board-- OSN8800

Functions and Features

The WSD9 board is used to dynamically groom wavelengths, monitor online optical performance, and monitor alarms and performance events.

For detailed functions and features, refer to Table 1.

Table 1 Functions and features of the WSD9 board
Function and Feature Description
Basic function Configures any wavelengths to any interfaces. A node on the ring or chain network can output any wavelength combination to any interface to achieve the dynamic allocation of wavelengths.
WDM specification Supports the DWDM specification.
Online optical performance monitoring

Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Alarm and performance event monitoring

Detects the optical power and reports the alarms and performance events for the board.
Optical power adjustment Provides the function to adjust the optical power of each channel.
Optical-layer ASON Supported

WSD9 Specifications

Specifications include optical specifications, dimensions, weight, and power consumption.

Optical Specifications

Table 1 Optical specifications of the WSD9 board
Item Unit Value
Type - TN11WSD9/ TN12WSD9/TN17WSD9 TN13WSD9 TN16WSD9
Optical channels - 40 80 80
Adjacent channel spacing GHz 100 50 50
Insertion loss

IN-DMxa

IN-EXPO

 dB <= 8b <= 8b <= 8b
Maximum channel insertion loss difference dB 1.5 1.5 1.5
Operating wavelength range nm 1529-1561 1529-1561 1529-1561
-1dB spectral width nm > 0.32 > 0.16 > 0.20
Port isolation dB > 25 > 25 > 25
Adjacent channel isolation dB > 25 > 25 > 25
Non-adjacent channel isolation dB > 30 > 30 > 30
Extinction ratio dB >= 35 >= 35 >= 35
Reconfiguration time s <= 3 <= 3 <= 3
Maximum reflectance dB -40 -40 -40
Directivity dB 35 35 35
Polarization dependence loss dB <= 1 <= 1 <= 1
Attenuation range of each of dropping wavelengths dB 0-15 0-15 0-15
Attenuation precision of each of dropping wavelengths dB

<= 1 (0 to 10 dB)

<= 1.5 (>10 dB)

<= 1 (0 to 10 dB)

<= 1.5 (>10 dB)

<= 1 (0 to 10 dB)

<= 1.5 (>10 dB)
NOTE:

a: DMx represents the DM1-DM8 interface.

b: This value is obtained when the attenuation of the VOA is set to 0 dB.

Mechanical Specifications

Dimensions of front panel:
  • TN11WSD9 (H x W x D): 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
  • TN12WSD9/TN16WSD9/TN17WSD9 (H x W x D): 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
  • TN13WSD9 (H x W x D): 264.6 mm (10.4 in.) x 76.2 mm (3.0 in.) x 220 mm (8.7 in.)
Weight:
  • TN11WSD9: 2.2 kg (4.9 lb.)
  • TN12WSD9: 2.7 kg (5.94 lb.)
  • TN13WSD9/TN16WSD9: 2.9 kg (6.38 lb.)
  • TN17WSD9: 3.2 kg (7.05 lb.)

Power Consumption

Board Typical Power Consumption (W) Maximum Power Consumptiona (W)
TN11WSD9 17.0 18.7
TN12WSD9 25.4 28.5
TN13WSD9 25.4 28.5
TN16WSD9 25.0 27.5
TN17WSD9 25.0 27.5
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
