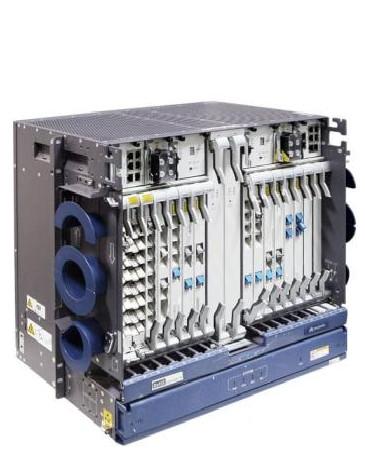

OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800
OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800
OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800
OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800
OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800
OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800
OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800
OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800
Specifications
Model Number :
TN11M40V
Place of Origin :
China
TN11M40V :
40-channel multiplexing board with VOA
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX OSN 8800 TN11M40V 40-channel multiplexing board with VOA-- OSN8800

Functions and Features

The M40V board is mainly used to multiplex signals, monitor performance of optical signals, monitor alarms and performance events, and adjust optical power.

For detailed functions and features, refer to Table 1.

Table 1 Functions and features of the M40V board
Function and Feature Description
Basic function Multiplexes a maximum of 40 signals into one multiplexed signal and adjusts the input optical power of each channel.
  • M40V01: multiplexes 40 C_EVEN wavelength signals into one multi-wavelength signal.
  • M40V02: multiplexes 40 C_ODD wavelength signals into one multi-wavelength signal.
Online optical performance monitoring

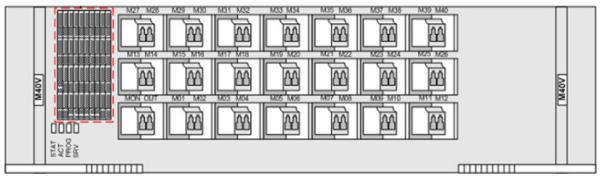

Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Alarms and performance events monitoring

Detects the optical power and reports the alarms and performance events for the board.
Optical power adjustment Adjusts the optical power of each signal before multiplexing.
Optical-layer ASON Supported

M40V Specifications

Specifications include optical specifications, dimensions, weight, and power consumption.

Optical Specifications

Table 1 lists the optical specifications of the M40V board.

Table 1 Optical specifications of the M40V board
Item Unit Value
Adjacent channel spacing GHz 100
Insertion loss dB <= 8a
Reflectance dB < -40
Operating wavelength range nm 1529-1561
Adjacent channel isolation dB > 22
Non-adjacent channel isolation dB > 25
Attenuation range dB 0-15
Loss accuracy dB <= 1 (0 to 10 dB)
<= 1.5 (>10 dB)
Polarization dependent loss dB <= 0.5
Maximum channel insertion loss difference dB <= 3a
NOTE:

a: This value can be reached when the attenuation of the VOA is set to 0 dB. It includes the inherent insertion loss of the MUX board and VOA unit.

Mechanical Specifications

  • Dimensions of front panel:
    • TN11M40V (H x W x D): 264.6 mm (10.4 in.) x 76.2 mm (3.0 in.) x 220 mm (8.7 in.)
    • TN12M40V (H x W x D): 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
  • Weight:
    • TN11M40V: 2.3 kg (5.1 lb.)
    • TN12M40V: 2.3 kg (5.1 lb.)

Power Consumption

Board Typical Power Consumption (W) Maximum Power Consumptiona (W)
TN11M40V 20.0 25.0
TN12M40V 16.0 26.0
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
