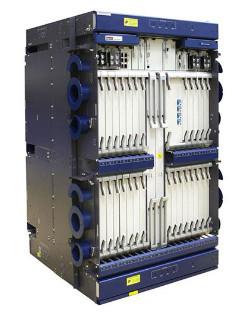

OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800
Specifications
Model Number :
TN11TDC01
Place of Origin :
China
TN11TDC01 :
Compensates for dispersion of DQPSK and ODB optical modules.
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800

Functions and Features

The TDC board compensates for the dispersion in a single channel and reports information.

For detailed functions and features, refer to Table 1.

Table 1 Functions and features of the TDC board

Function and Feature

Description

Basic function

The TDC board is used for C-band optical signals.

Compensates for the dispersion in the single channel. The dispersion is adjustable.

Information report

Reports the ambient temperature and alarm information about the board.
Optical-layer ASON Supported by TN11TDC01.

TDC Specifications

Specifications include optical specifications, laser safety level, mechanical specifications and power consumption.

Optical Specifications

Table 1 lists the optical specifications of the TDC board.

Table 1 Optical specifications of the TDC board

Parameter

Unit

Value

Optical channels

 - 80

Dispersion tuning range

 ps/nm

±400

Dispersion tuning speed

 sec

<15
Input power range dBm -13 to 0

Dispersion accuracy

 ps/nm

±10

Output optical power

 dBm The output optical power should be close to the input power, with an error range of ±1.5 dB.

Mechanical Specifications

The mechanical specifications of the board are as follows:

  • Dimensions of front panel (H x W x D): 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
  • Weight: 1.14 kg (2.51 lb.)

Power Consumption

Board Typical Power Consumption (W) Maximum Power Consumptiona (W)
TN11TDC 13 15
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options Estimated Delivery Time
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800DHL 3-5 business days
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800 Fedex 3-5 business days
OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800 By Sea 10-20 business days

OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800Deliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800Deliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800 Free Technical Support:

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


OptiX OSN 8800 TN11TDC01 single-wavelength tunable-dispersion compensation board-- OSN 8800 Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed product: 1 Year

The Support Contacts:

If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.

Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
