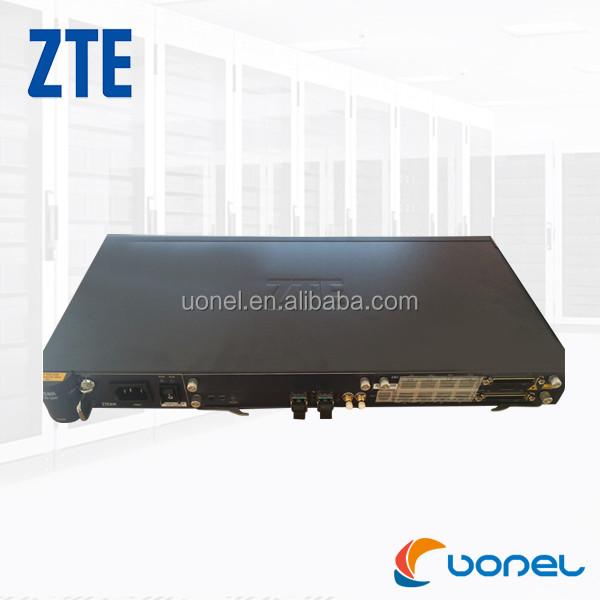

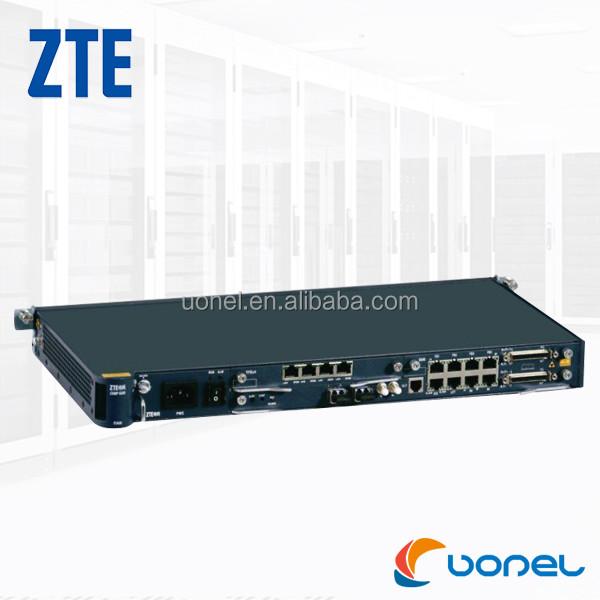

ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform
ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform
ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform
ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform
Specifications
Model Number :
ZTE ZXMP S200, ZTE ZXMP S200
Place of Origin :
China
Brand Name :
Huawei
Switching capacity :
64*64VC-4 ; 2037*2037 VC-12
Key words :
ZXMP S200 IBB
Dimension :
45*442*240mm
Packaging Details :
Export carton package
Port :
Shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

ZTE ZXMP S200 SDH MSTP

device Compact Integrated Service Access Platform

Contact Us

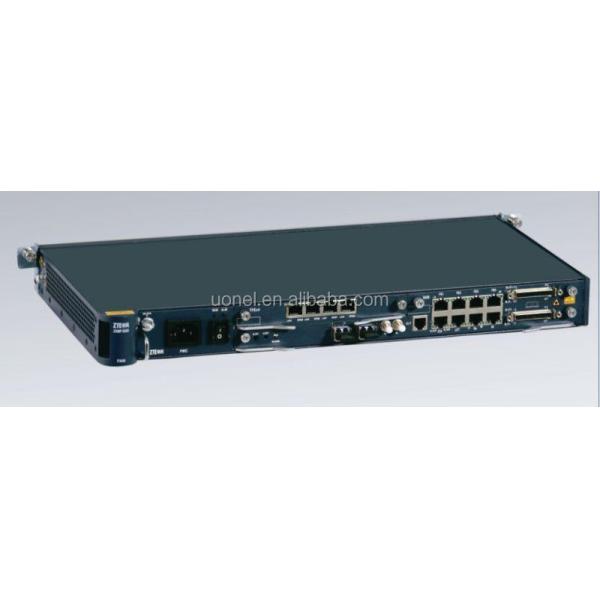

ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform

ZXMP S200 is a compact STM-4/STM-1 multi-service access equipment that implements transmission and management of STM-4, STM-1, E3/T3, E1/T1, FE, N×64k, SHDSL and 2/4-line VF services. Features high level of integration, flexible installation and multiple power supply access methods, ZXMP S200 is suitable for telecom operators and private networks to deliver terminal access services with lowered operational cost.

ZXMP S200 boards list:

PWB
PWC
IBB
PWA
Box-A
FAN(H)
FAN(M)
PDB(back)
PDB(back,blue)
RACK-SET-S-2.0m-300mm-B(Blue)
RACK-SET-S-2.0m-600mm-B
RACK-SET-S-2.2m-300mm-B(Blue)
RACK-SET-S-2.2m-600mm-B
Lug-back
ETSI Lug-front
IEC Lug-front
BOX(H)
BOX(M)
PDB(front)
PDB(front,blue)
Wall-mounted bracket
ET1-120
ET1-75
SMC*D100E(2*L-1.1,LC)
SMC*D100E(2*L-1.2,LC)
SMC*D100E(2*L-4.1,LC)
SMC*D100E(2*L-4.2,LC)
SMC*D100E(2*S-1.1,LC)
SMC*D100E(2*S-4.1,LC)
SMC*D120E(2*L-1.1,LC)
SMC*D120E(2*L-1.2,LC)
SMC*D120E(2*L-4.1,LC)
SMC*D120E(2*L-4.2,LC)
SMC*D120E(2*S-1.1,LC)
SMC*D120E(2*S-4.1,LC)
SMC*D120T(2*L-1.1,LC)
SMC*D120T(2*L-1.2,LC)
SMC*D120T(2*L-4.1,LC)
SMC*D120T(2*L-4.2,LC)
SMC*D120T(2*S-1.1,LC)
SMC*D120T(2*S-4.1,LC)
SMC*D75E(2*L-1.1,LC)
SMC*D75E(2*L-1.2,LC)
SMC*D75E(2*L-4.1,LC)
SMC*D75E(2*L-4.2,LC)
SMC*D75E(2*S-1.1,LC)
SMC*D75E(2*S-1.1-1310nm Tx/1550nm Rx,LC)
SMC*D75E(2*S-1.1-1550nm Tx/1310nm Rx,LC)
SMC*D75E(2*S-4.1,LC)
SMC*D75T(2*L-1.1,LC)
SMC*D75T(2*L-1.2,LC)
SMC*D75T(2*L-4.1,LC)
SMC*D75T(2*L-4.2,LC)
SMC*D75T(2*S-1.1,LC)
SMC*D75T(2*S-1.1-1310nm Tx/1550nm Rx,LC)
SMC*D75T(2*S-1.1-1550nm Tx/1310nm Rx,LC)
SMC*D75T(2*S-4.1,LC)
SMC*F100E(2*L-1.1+2*L-4.1,LC)
SMC*F100E(2*L-1.2+2*L-4.2,LC)
SMC*F100E(2*S-1.1+2*S-4.1,LC)
SMC*F100E(4*L-1.1,LC)
SMC*F100E(4*L-1.2,LC)
SMC*F100E(4*L-4.1,LC)
SMC*F100E(4*L-4.2,LC)
SMC*F100E(4*S-1.1,LC)
SMC*F100E(4*S-4.1,LC)
SMC*F100T(2*L-1.1+2*L-4.1,LC)
SMC*F100T(2*L-1.2+2*L-4.2,LC)
SMC*F100T(2*S-1.1+2*S-4.1,LC)
SMC*F100T(4*L-1.1,LC)
SMC*F100T(4*L-1.2,LC)
SMC*F100T(4*L-4.1,LC)
SMC*F100T(4*L-4.2,LC)
SMC*F100T(4*S-1.1,LC)
SMC*F100T(4*S-4.1,LC)
SMC*F120E(2*L-1.1+2*L-4.1,LC)
SMC*F120E(2*L-1.2+2*L-4.2,LC)
SMC*F120E(2*S-1.1+2*S-4.1,LC)
SMC*F120E(4*L-1.1,LC)
SMC*F120E(4*L-1.2,LC)
SMC*F120E(4*L-4.1,LC)
SMC*F120E(4*L-4.2,LC)
SMC*F120E(4*S-1.1,LC)
SMC*F120E(4*S-4.1,LC)
SMC*F120T(2*L-1.1+2*L-4.1,LC)
SMC*F120T(2*L-1.2+2*L-4.2,LC)
SMC*F120T(2*S-1.1+2*S-4.1,LC)
SMC*F120T(4*L-1.1,LC)
SMC*F120T(4*L-1.2,LC)
SMC*F120T(4*L-4.1,LC)
SMC*F120T(4*L-4.2,LC)
SMC*F120T(4*S-1.1,LC)
SMC*F120T(4*S-4.1,LC)
SMC*F75E(2*L-1.1+2*L-4.1,LC)
SMC*F75E(2*L-1.2+2*L-4.2,LC)
SMC*F75E(2*S-1.1+2*S-4.1,LC)
SMC*F75E(4*L-1.1,LC)
SMC*F75E(4*L-1.2,LC)
SMC*F75E(4*L-4.1,LC)
SMC*F75E(4*L-4.2,LC)
SMC*F75E(4*S-1.1,LC)
SMC*F75E(4*S-1.1-1310nm Tx/1550nm Rx,LC)
SMC*F75E(4*S-1.1-1550nm Tx/1310nm Rx,LC)
SMC*F75E(4*S-4.1,LC)
SMC*F75T(2*L-1.1+2*L-4.1,LC)
SMC*F75T(2*L-1.2+2*L-4.2,LC)
SMC*F75T(2*S-1.1+2*S-4.1,LC)
SMC*F75T(4*L-1.1,LC)
SMC*F75T(4*L-1.2,LC)
SMC*F75T(4*L-4.1,LC)
SMC*F75T(4*L-4.2,LC)
SMC*F75T(4*S-1.1,LC)
SMC*F75T(4*S-1.1-1310nm Tx/1550nm Rx,LC)
SMC*F75T(4*S-1.1-1550nm Tx/1310nm Rx,LC)
SMC*F75T(4*S-4.1,LC)
TFE*4
TFE*4B(L-1.1,LC)
TFE*4B(L-1.2,LC)
TFE*4B(S-1.1,LC)
OBA14(external,input-6,SC)
OBA17(external,SC)
Manual for ZXMP S200(CH)
Manual for ZXMP S200(EN)

ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform

Product Feature

High level of integration and small size
 ZXMP S200 employs a "system board +plug-in board" structure, featuring high level of integration. In typical configuration, it is only 1U in height and 5.5kg in weight, and its power consumption is smaller than 30W. The system board is an integrated multi-service system, comprising service unit, network management unit, cross-connect unit, clock unit, power supply unit and auxiliary management interface. It implements all SDH NE basic functions on a single board. ZXMP S200 supports one extension slot, enabling on-demand extension and upgrade via adding plug-in boards.

Plentiful service interfaces and flexible configuration
 Supported service types: SDH interface, PDH interface, Data interface, Auxiliary interface.
Employs SFP module, supports online upgrade of network equipment from 155M to 622M. Provides 64×64 VC-4 high-order cross-connect capability and 2037×2037 VC-12 lower-order cross-connect capability. It can be used as standard TM equipment, ADM equipment and REG equipment.
Perfect network protection mechanism
2-fiber bidirectional multiplex section protection ring
4-fiber bidirectional/unidirectional link multiplex section 1+1 or 1:1 protection
2-fiber path protection ring
Subnet connection protection
Dual-node interconnection protection mode

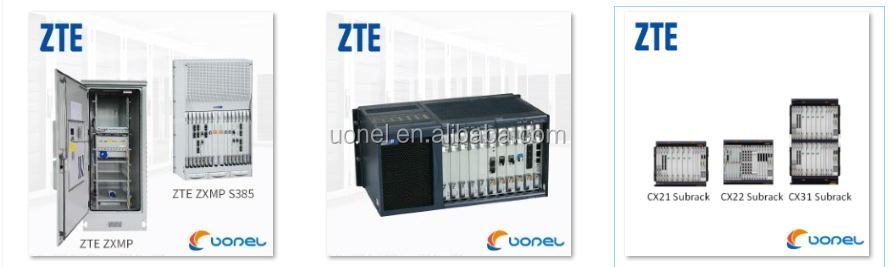

Related Products

ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access PlatformZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform

Warranty

ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform

ZTE ZXMP S200 SDH MSTP device Compact Integrated Service Access Platform

Company profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.

Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
