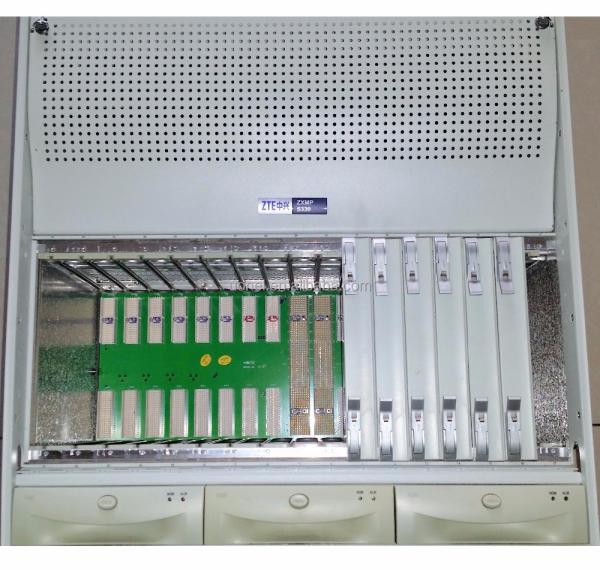

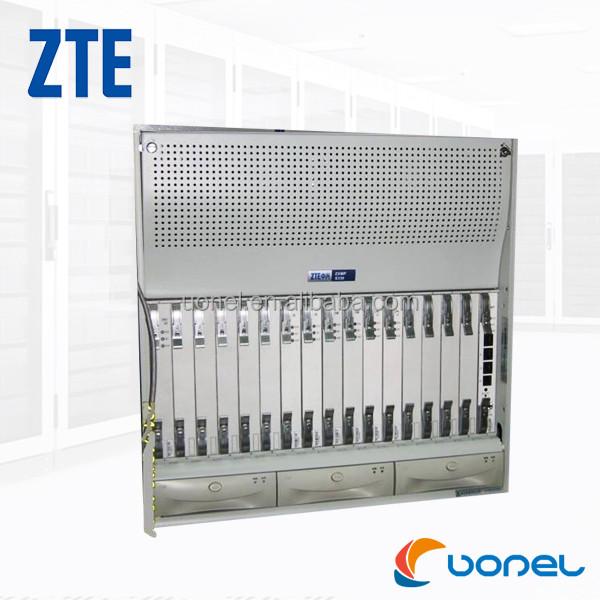

ZXMP S330 adopts complicated technologies and design ideas, absorbs ZTE’s patented technologies and experience in the SDH field, combines network service diversification and network structure change and endows SDH equipment with new technical connotation. Therefore, it is the enhanced STM-16/64 equipment integrating ADM, DXC and IP/ATM functions.
As the 2.5G/10G multiservice transmission platform, ZXMP S330 is the ideal broadband transmission network equipment due to powerful service cross & dispatching function, plentiful data service applications, excellent scalability and good protection mechanism. ZXMP S330 can make service interconnection and interworking with ZTE’s other MSTP equipments to implement high-efficiency service integration, and can be managed by NetNumen™ U31 just like other equipments so as to provide highest performance-cost-rate solution for carriers. ZXMP S330 is applied to LH backbone network or metro network backbone/convergence layer.

ZXMP S330 boards list:

MB
FAN
PDB(back)
PDB(back,blue)
2.0m-300mm-B(blue)
2.0m-600mm-B
2.2m-300mm-B(blue)
2.2m-600mm-B
RACK-SET-S-2.0m-300mm-B(Blue)
RACK-SET-S-2.0m-600mm-B
RACK-SET-S-2.2m-300mm-B(Blue)
RACK-SET-S-2.2m-600mm-B
ZJA(back mounted)
PDB(front)
PDB(front,blue)
ZJA(front mounted)
BIE1x21
BIE3*3
BIFE
BIS1
CSB
EIFE*4
EIFE*6
EP3*3
EPE1*21(120)
EPE1*21(75)
EPE1B*21
EPT1*21(TU11)
EPT1*21(TU12)
ESE1*21(120/100)
ESE1*21(75)
ESE3*3
ESS1*2
LP1*1
LP1*2
LP4*1
LP4*2
NCP
NCPI
OIS1*1(L-1.1,SC)
OIS1*1(L-1.2,SC)
OIS1*1(S-1.1,SC)
OIS1*2(L-1.1,SC)
OIS1*2(L-1.2,SC)
OIS1*2(S-1.1,SC)
OIS1*4(L-1.1,LC)
OIS1*4(L-1.2,LC)
OIS1*4(S-1.1,LC)
OIS1*6(L-1.1,LC)
OIS1*6(L-1.2,LC)
OIS1*6(S-1.1,LC)
OIS4*1(L-4.1,SC)
OIS4*1(L-4.2,SC)
OIS4*1(S-4.1,SC)
OIS4*2(L-4.1,SC)
OIS4*2(L-4.2,SC)
OIS4*2(S-4.1,SC)
OL1/4*4(2*L-1.1+2*L-4.1,LC)
OL1/4*4(2*L-1.2+2*L-4.2,LC)
OL1/4*4(2*S-1.1+2*S-4.1,LC)
OL1/4*4(3*L-1.1,LC)
OL1/4*4(3*L-1.2,LC)
OL1/4*4(3*L-4.1,LC)
OL1/4*4(3*L-4.2,LC)
OL1/4*4(3*S-1.1,LC)
OL1/4*4(3*S-4.1,LC)
OL1/4*4(4*L-1.1,LC)
OL1/4*4(4*L-1.2,LC)
OL1/4*4(4*L-4.1,LC)
OL1/4*4(4*L-4.2,LC)
OL1/4*4(4*S-1.1,LC)
OL1/4*4(4*S-1.1-1310nm Tx/1550nm Rx,LC)
OL1/4*4(4*S-1.1-1550nm Tx/1310nm Rx,LC)
OL1/4*4(4*S-4.1,LC)
OL16(CWDM-1470nm,LC)
OL16(CWDM-1490nm,LC)
OL16(CWDM-1510nm,LC)
OL16(CWDM-1530nm,LC)
OL16(L-16.1,LC)
OL16(L-16.2,LC)
OL16(L-16.2JE,LC)
OL16(L-16.2p,LC)
OL16(L-16.2U,LC)
OL16(S-16.1,LC)
PWR
SC
SCI-120
SCI-75
SED
SED(2*L-1.1,LC)
SED(2*L-1.2,LC)
SED(2*S-1.1,LC)
SFE*6(GFP)
SFE*6(PPP)
SFP-1.25G(L-G.1,LC)
SFP-1.25G(L-G.2,LC)
SFP-1.25G(M-G.8,LC)
SFP-1.25G(S-G.1,LC)
TFE*8
TFE*8(2*FE-L1.1,LC)
TFE*8(2*FE-L1.2,LC)
TFE*8(2*FE-S1.1,LC)
OBA12(mini,LC)
OBA14(external,input-6,SC)
OBA14(mini,LC)
OBA17(external,SC)
OBA17(mini,LC)
OBA19(mini,LC)
OPA38(mini,LC)
ZXMP S330 manual(ch)
ZXMP S330 manual(en)

Superior service access capability enabling eased and flexible service provision

• Optical interfaces contain STM-16/4/1 interfaces; electrical interfaces contain STM-1, E3/T3, E1/T1 TDM service interfaces. Offer agile service add/drop;
• EOS functions are available in full support of data service models including EPL, EVPL, EPLAN, EVPLAN, accommodating customers demands for delivering high bandwidth data services;
• Use embedded-RPR based on flexible logic subnetwork technology to build RPR ring, and the unique RPR span-ring feature breaks up the single ring restriction in RPR networking;
• Perfect QoS control enables traffic configuration based on IP priority, DSCP priority, TOS priority, COS priority and port priority;
• Provide embedded ATM function, support VP-VC switch, CAC control, CC, and PVC 1+1 protection.

Comprehensive and perfect protection capability ensuring highly reliable network

• ZXMP S330 offers 1+1 redundant protection for critical boards, such as clock board, cross-connect board. The system provides 1:Nredundant protection for service interfaces to protect E1/T1/E3/T3/FE/STM-1 (E) electrical tributaries. Single sub-rack can protect 4 groups of electrical tributaries simultaneously.
• ZXMP S330 employs dual power distribution system, all functional boards adopt distributed power supply mode, with little impact on power supplies among boards, and greatly erasing the effect on system during plugging/unplugging boards.
• ZXMP S330 has ITU-T-recommended networking characteristics. Protection modes include 1+1 multiplex section protection, 2-fiber bidirectional multiplex section protection ring, 4-fiber bidirectional multiplex section protection ring, dual node interconnection protection (DNI) and sub-network connection protection (SNCP).
• ZXMP S330 can also offer protection for data service layer. It supports Ethernet shared protection ring, RPR ring protection and ATM 1+1 protection.

Reliable timing synchronous processing capability boosting synchronous network performance

• ZXMP S330 employs advanced phase locked circuit, with synchronization to external clock, line clock and E1/T1 tributary clock for option.
• The system provides tributary re-timing function for E1 interface.
• The system support synchronous priority switching and SSM-based automatic switching, optimizing network timing and synchronization distribution, lowering the difficulties in synchronization planning, avoiding timing loop and ensuring to keep network synchronization the optimal state.

Eased maintenance & upgrade and lowered OPEX

• System operation adopts front-facing interfaces, easing maintenance.
• Separation of service interface board and processing board enables customer to select and replace interface board types on site according to service demands.
• Support online 2.5G optical power detection, facilitating rapid location of line problem and improving maintenance efficiency.
• High level of integration results in small footprint; low power consumption leads to reduced electricity charge.

Benefits

Robust RPR data features, in support of IP-based network evolution, future-oriented, investment protection

• Support efficient statistic multiplexing for data services;
• Support RPR span-ring, implement complex topological networking of crossing ring, tangent ring;
• Strong data service awareness, support classes of services configuration based on IP priority, DSCP priority, TOS priority and offer complete QoS ability;
• Multi-purpose board supports RoS, RoS+EoS, EoS application modes, enabling more flexible service configuration.

Support mixed insertion of slots, more flexible for equipment configuration and network planning & optimization

• Universal design for service boards cutting spare part cost

Share the common board and spare parts with ZXMP S325, leading to lowered spare part cost.

• Extensive applications, mature technology and high reliabilityAbout the Distribution:
