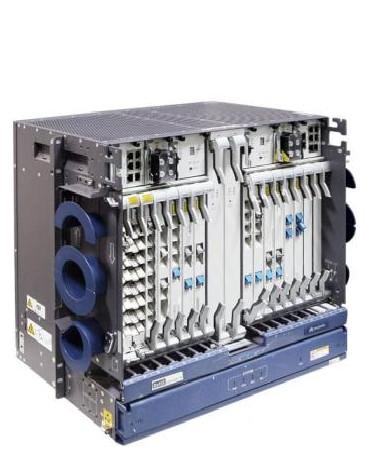

OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
Specifications
Model Number :
TN11ND2
Place of Origin :
China
TN11ND2 :
2 x 10G line service processing board
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800

Version Description

The available functional versions of the ND2 board are TN11, TN12, TN52, and TN53.

Mappings Between the Board and Equipment

The following provides the board(s) supported by the product. However, the availability of the board(s) is subject to PCNs. For PCN information, contact the product manager at your local office.

Board Initial Versiona General 8800 T64 Subrack Enhanced 8800 T64 Subrack General 8800 T32 Subrack Enhanced 8800 T32 Subrack 8800 T16 Subrack 8800 Universal Platform Subrack 6800 Subrack 3800 Chassis
TN11ND2 V100R004 N N N N N N Y N
TN12ND2

8800:V100R007C00

6800:V100R004C03

 N N N N N Y Y N
TN52ND2 V100R002C00 Y Y Y Y Y Y Y N
TN53ND2 V100R006C01 Y Y Y Y Y Y Y N
a: If there is a substitution relationship between two boards and one of the boards is used to replace the other board, the device initial version supported by the replaced board takes effect. For example, when you use TN53ND2 to replace TN52ND2 in 8800, TN53ND2 can be supported by V100R002C00.
NOTE:
The TN12ND2/TN52ND2/TN53ND2 board for the OptiX OSN 8800 universal platform subrack only supports relay mode.

Variants

The difference between the ND2 board variants lies in the WDM-side optical module.

Table 1 Available variants of the TN11ND2 board
Variant WDM-Side Fixed Optical Module
01M01 800 ps/nm-C Band (Odd & Even Wavelength)-Fixed Wavelength-NRZ-PIN
T01 800 ps/nm-C Band-Tunable Wavelength-NRZ-PIN
T02 800 ps/nm-C Band-Tunable Wavelength-(D)RZ-PIN
Table 2 Available variants of the TN12ND2 board
Variant WDM-Side Optical Module
T01 800 ps/nm-C Band-Tunable Wavelength-NRZ-PIN
T02 800 ps/nm-C Band-Tunable Wavelength-(D)RZ-PIN
B The WDM-side optical modules are pluggable. For details, see ND2 Specifications.
Table 3 Available variants of the TN52ND2 board
Variant WDM-Side Fixed Optical Module ODUflex Direct Mapping of ODU0 to ODU2 IEEE 1588v2 Physical-Layer Clock
T01 800 ps/nm-C Band-Tunable Wavelength-(D)RZ-PIN N N Y Y
T02 800 ps/nm-C Band-Tunable Wavelength-NRZ-PIN N N Y Y
T04 800 ps/nm-C Band-Tunable Wavelength-(D)RZ-PIN Y Y N N
Table 4 Available variants of the TN53ND2 board
Variant Description
01 The WDM-side optical modules are pluggable. For details, see ND2 Specifications.

Functions and Features

The ND2 board is mainly used to achieve cross-connection at the electrical layer, and to provide OTN interfaces and ESC.

For detailed functions and features, refer to Table 1 and Table 2.

NOTE:

Only the OptiX OSN 8800 supports ODU0/ODUflex.

Table 1 Functions and features of the ND2 board (Line Mode)
Function and feature Description
Basic function

The ND2 board converts signals as follows:

  • TN11ND2/TN12ND2:
    • 8 x ODU1/2 x ODU2<->2 x OTU2
    • 2 x ODU2e<->2 x OTU2e
  • TN52ND2T01/TN52ND2T02:
    • 16 x ODU0/8 x ODU1/2 x ODU2<->2 x OTU2
    • 2 x ODU2e<->2 x OTU2e
  • TN52ND2T04/TN53ND2:
    • 16 x ODU0/8 x ODU1/2 x ODU2/4 x ODUflex<->2 x OTU2
    • 2 x ODU2e<->2 x OTU2e

Supports hybrid transmission of the ODU0 signals, ODU1 signals , ODUflex signals and the ODU2/ODU2e signals.
Cross-connect capabilities

Supports cross-connections with cross-connect boards.

  • TN11ND2/TN12ND2: 8 x ODU1/2 x ODU2/2 x ODU2e
  • TN52ND2T01/TN52ND2T02: 16 x ODU0/8 x ODU1/2 x ODU2/2 x ODU2e
  • TN52ND2T04/TN53ND2: 16 x ODU0/8 x ODU1/4 x ODUflex/2 x ODU2/2 x ODU2e
OTN function
  • Supports the OTU2/OTU2e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU2 layer: supports the SM function.
  • ODUk (k=0, 1, 2) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
  • ODUflex layer: supports the PM function and PM non-intrusive monitoring functions.
NOTE:
Only the TN52ND2T04/TN53ND2 supports TCM and TCM non-intrusive monitoring for ODU0.
WDM specification

Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS function

Supports the PRBS function on the WDM side.

NOTE:

If the TN52ND2T04/TN53ND2 board interconnects with another line board, PRBS must be enabled for the TN52ND2T04/TN53ND2 board and the connected line board. In addition, the PRBS function can take effect on the boards only when the following condition is met:

The TN52ND2T04/TN53ND2 board works in standard mode and ODU0, ODU1, or ODUflex cross-connections are configured for the TN52ND2T04/TN53ND2 board, or the TN52ND2T04/TN53ND2 board works in compatible mode but no cross-connection is configured for it.
LPT function Not supported
FEC coding
TN11ND2:

  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.

  • Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC) on the WDM side.

TN12ND2/TN52ND2/TN53ND2:

  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.

  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.

NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Regeneration board

  • The WDM-side signals from one TN11ND2 board can be regenerated by another TN11LSXR board.

  • The WDM-side signals from one TN12ND2/TN52ND2/TN53ND2 board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function Not supported
Test frame Not supported
IEEE 1588v2

The TN12ND2/TN52ND2T01/TN52ND2T02/TN53ND2 board supports the BC and OC modes; it does not support the TC or TC+OC mode.
Physical clock The TN12ND2 board supports this feature only when ODU1 signals are cross-connected from the backplane.

The TN52ND2T01/TN52ND2T02 board supports this feature only when ODU0 or ODU1 signals are cross-connected from the backplane.

The TN53ND2 board supports this feature only when ODU0, ODU1, ODUflex signals are cross-connected from the backplane.
Optical-layer ASON Supported
Electrical-layer ASON Supported by the TN11ND2/TN12ND2/TN52ND2/TN53ND2
Protection scheme
  • Supports ODUk SNCP.
  • Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
  • Supports OWSP protection.
  • Supports ODUk SPRing protection.
  • Supports tributary SNCP protection.
NOTE:

When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection and ODUk SPRing protection.
Loopback Board WDM Side ODU0 Channel Loopback ODU1 Channel Loopback ODUflex Channel Loopback
TN11ND2 Supported Not supported Supported Not supported
TN12ND2 Supported Not supported Supported Not supported

TN52ND2T01

TN52ND2T02

 Supported Supported Supported Not supported

TN52ND2T04

TN53ND2

 Supported only when ODU2/ODU2e signals are received from the backplane. Supported Supported only when ODU1 signals are received from the backplane. Supported

Protocols or standards compliance

Protocols or standards for transparent transmission (non-performance monitoring)

IEEE 802.3u

IEEE 802.3z

IEEE 802.3ae

ITU-T G.707

ITU-T G.782

ITU-T G.783

GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic

NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI)

NCITS FIBRE CHANNEL LINK SERVICES (FC-LS)

NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2)

NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3)

NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3)

NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH)

NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2)

SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems

ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI)

SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface

NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON)

ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC)

ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY)

ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM)

Protocols or standards for service processing (performance monitoring)

ITU-T G.805

ITU-T G.806

ITU-T G.709

ITU-T G.872

ITU-T G.7710

ITU-T G.798

ITU-T G.874

ITU-T M.3100

ITU-T G.874.1

ITU-T G.875

ITU-T G.808.1

ITU-T G.841

ITU-T G.8201

ITU-T G.873.1

ITU-T G.694.1
NOTE:

The relay mode is supported only by the TN12ND2/TN52ND2/TN53ND2.

Table 2 Functions and features of the ND2 board (Relay Mode)
Function and feature Description
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate

OTU2: OTN service at a rate of 10.71 Gbit/s

OTU2e: OTN service at a rate of 11.1 Gbit/s or 11.3Gbit/s

NOTE:
Only the TN12ND2/TN52ND2 board equipped with "800 ps/nm-C Band-Tunable Wavelength-(D)RZ-PIN" optical module supports regeneration of 11.3 Gbit/s OTU2e.
OTN function
  • Provides the OTU2/OTU2e interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU2 layer: supports the SM function.
  • ODU2 layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
WDM specification

Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function
Supports tunable wavelength optical modules that provide for:
  • 40 wavelengths tunable in the C band with 100 GHz channel spacing
  • 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function Supported
PRBS test function Not supported
FEC coding
TN12ND2/TN52ND2/TN53ND2:

  • Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.

  • Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.

NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
ALS function Not supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
Electrical-layer ASON Not supported
Protection scheme Not supported
Loopback Not supported

Protocols or standards compliance

Protocols or standards for transparent transmission (non-performance monitoring)

-

Protocols or standards for service processing (performance monitoring)

ITU-T G.805

ITU-T G.806

ITU-T G.709

ITU-T G.872

ITU-T G.7710

ITU-T G.798

ITU-T G.874

ITU-T M.3100

ITU-T G.874.1

ITU-T G.875

ITU-T G.808.1

ITU-T G.841

ITU-T G.8201

ITU-T G.694.1
Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options Estimated Delivery Time
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800DHL 3-5 business days
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800 Fedex 3-5 business days
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800 By Sea 10-20 business days

OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800Deliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800Deliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800 Free Technical Support:

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800 Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed product: 1 Year

The Support Contacts:

If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.

Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.












Product tags

siemens step 7 download

,

msp430 evaluation board

,

api 5l x60 specification
Send your message to this supplier
Send Now

OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800

Ask Latest Price
Product Detail
Model Number :
TN11ND2
Place of Origin :
China
TN11ND2 :
2 x 10G line service processing board
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Contact Supplier
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800
OptiX OSN 8800 TN11ND2 2 x 10G line service processing board-- OSN8800

Uonel Co.Limtied

Site Member
5 Years
shenzhen
Since 2008
Business Type :
Distributor/Wholesaler, Agent, Importer, Exporter, Trading Company, Seller
Main Products :
Huawei Telecom Equipment, Huawei Telecom Router, Huawei Network Switches
Total Annual :
>100000000
Employee Number :
100~500
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Huawei DWDM
MachineU China Products Machinery Production line Other processing line
Contact Supplier
Submit Requirement
