Specifications
Model Number :
ZTE ZXMP M820
Place of Origin :
China
Brand Name :
Huawei
Number name :
ZTE ODU40
Certification :
CE FCC RoHS
Packaging Details :
Export carton package
Port :
Shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

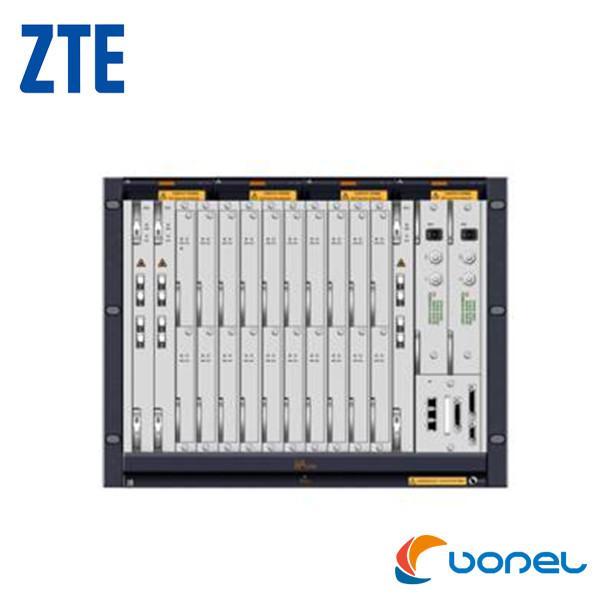

ZTE ZXMP M820 Metro DWDM ONT

Equipment MC-C-ODU40 (AWG,100G,C+,LC) ZTE ODU40

Contact Us

ZTE ZXMP M820 Metro DWDM ONT Equipment MC-C-ODU40 (AWG,100G,C+,LC) ZTE ODU40

ZXMP M820 is a member of iOTN series targeting metro optical transmission network applications.It enables access of a wide variety of services, multi-layered service scheduling and smooth upgrade of system, delivers flexible and mature protection schemes and supports OTN, ROADM and WASON and L2 functions.ZXMP M820 can construct hybrid network with ZXMP M820 series high-capacity electrical cross-connect equipment and employ unified network management system to provide operators with cost-effective high-quality metro OTN networks.

ZTE ZXMP M820 Metro DWDM ONT Equipment MC-C-ODU40 (AWG,100G,C+,LC) ZTE ODU40

The ZXMP M820 Equipment offers the following switch products:

MC-C-Rack
ZTE Rack
MC-C-WDM Subrack
MC-C-WDM
MC-C-SFANA
MC-C-Adaption Frame
MC-C-Blank Panel
MC-C-SNP
MC-C-SCC
MC-C-CSU
MC-C-CSUB
MC-C-SPWA
ZTE SPWA
MC-C-SPWA SFP
MC-C-M1PWE
MC-C-SEIA1
MC-C-SEIA2
MC-C-M3SEIA1
MC-C-M3SEIA2
MC-C-M1EIC
MC-C-SOSC
MC-C-M2SOSCB
MC-C-M1TIS
MC-C-SOSC SFP
ZTE SOSC SFP
MC-C-EOPM1

MC-C-EOPM4
MC-C-EOWM2
MC-C-SOP1
MC-C-SOP2
MC-C-SOPCS
MC-C-OMU08
MC-C-OMU16
MC-C-OMU40
MC-C-OMU
MC-C-ODU40
MC-C-OCI
MC-C-VMUX40
MC-C-SOAD4
ZTE SOAD4
MC-C-SSDMT
MC-C-SSDMR
MC-C-LACT
MC-C-LACG
MC-C-DRA
MC-C-EONA
MC-C-EONAH
MC-C-EOBAH
ZTE EOBAH
MC-C-SEOBA
ZTE SEOBA
MC-C-SEOPA

ZTE SEOPA
MC-C-DCU
MC-C-DCM10-2C
MC-C-DCM20-2C
MC-C-DCM40
MC-C-DCM60
MC-C-DCM80
MC-C-DCM100
MC-C-DCM
MC-C-DCM80-5C
MC-C-DCM100-5C
MC-C-DCM120-5C
MC-C-DCM240
MC-C-DCM2 Tray
MC-C-DCM Tray
Ring flange
MC-C-ASMA
MC-C-OTU
MC-C-SOTU
MC-C-SOTU2.5G
MC-C-SOTU10G
MC-C-EOTU10G
MC-C-EOTU
ZTE EOTU10G
ZTE EOTU
MC-C-EOTU10GB

ZTE EOTU10GB
MC-C-TD2C
MC-C-SRM42
MC-C-SRM41
MC-C-SDSA
ZTE SDSA
MC-C-FCA
ZTE FCA
MC-C-SMUBC
ZTE SMUBC
MC-C-SMUBL
MC-C-COM
MC-C-COMB
ZTE COMB
MC-C-CD2
MC-C-CQ2
MC-C-LS2
ZTE LS3
MC-C-LD2
MC-C-LQ2
MC-C-MOM2
ZTE MOM3
MC-C-MQA2
MC-C-MJA
MC-C-SFP-SX
MC-C-SFP

MC-C-SFP-LX
MC-C-SFP-LH1
MC-C-SFP-LH2
MC-C-SFP-ZX
MC-C-SFP-I16
MC-C-SFP-S4.1
MC-C-SFP-S16.1
MC-C-SFP-L16.1
MC-C-SFP-L16.2
ZTE XFP module
XFP module
DWDM module
MC-C-TST3
ZTE TST4
MC-C-MQT3
ZTE MQT4
MC-C-M2TS4
ZTE M2TS5
MC-C-M2MX2
MC-C-PDU
ZTE PDU
MC-C-WSUA
MC-C-WSUA/E4
MC-C-WSUA/E9
MC-C-WSUD
ZTE WSUD
MC-C-WSUD/E9
Product Feature

ZTE ZXMP M820 Metro DWDM ONT Equipment MC-C-ODU40 (AWG,100G,C+,LC) ZTE ODU40

  • Multiple service access and aggregation Service access:

ZXMP M820 can access a variety of services, including STM-N (N = 1, 4, 16, 64, 256), POS (Packet Over SDH), ATM (asynchronous transfer mode), GE, 10 GE, FC100/200/400/800/1200, ESCON, FICON, DVB and etc.

4 ´ STM-1/4 -->STM-16 l

4 ´ STM-16 --> OTU2 l

2 ´ GE/FC/FICON --> OTU1 l

8 ´ GE/FC/FICON --> OTU2 l

4 ´ FC2 / 2×FC4 --> OTU2 l

4 ´ STM-64/10GE/OTU2 --> OTU3 l

40GE/40G POS/ STM-256 --> OTU3 l

100GE --> OTU4

  • Strong transmission capability

ZXMP M820 uses a variety of transponder techniques like out-ofband Forward Error Correction (FEC), advanced FEC (AFEC), RZ modulation and adaptive receiving and amplification techniques like RAMAN amplifiers, high launched power EDFA and remote pumping optical amplifier (RPOA) to extend transmission distance.

For 10 Gbit/s and 2.5 Gbit/s systems: l

Single-Span: ZXMP M820 supports at most a single 45dB span without electrical regeneration. l

Multi-Span: ZXMP M820 supports18*22dB,14*22dB,8*22 dB,7*30dB,6*30dB, 3*30dB multi-span transmission without electrical regeneration.

For 40 Gbit/s system:

Single-Span: ZXMP M820 supports at most a single 45dB span without electrical regeneration. l

Multi-Span: ZXMP M820 supports 18 ´ 22 dB or 7 ´ 30 dB multi-span transmission without electrical regeneration.

For 100 Gbit/s system: l

Single-Span: ZXMP M820 supports at most a single 45dB span without electrical regeneration.

Multi-Span: ZXMP M820 supports 20´ 22 dB or 7 ´ 30 dB multispan transmission without electrical regeneration.

Strong transmission capabilities empower ZXMP M820 to easily meet the requirements of metro and local networks and even to be applied to provincial backbone network.

ZTE ZXMP M820 Metro DWDM ONT Equipment MC-C-ODU40 (AWG,100G,C+,LC) ZTE ODU40

  • System specification

Support 80/96x10G, 80/96x40G,80x100G and modular upgrade.

  • 100G performance

100Gb/s system adopts PM-QPSK modulation to support SD-FEC technology with good OSNR tolerance. Industry's most advanced DSP processing technology can support 60ps of PMD tolerance and +/-70,000ps/nm of chromatic dispersion tolerance. Transmission distance can reach over 5,000 kilometers without electrical relay, which saves the investments and facilitates the maintenance.

  • Three-dimensional traffic grooming

Support 2-9 degree ROADM, and offer l-level cross-connect scheduling function;

Support centralized cross connection at granularities of ODU0/1/2/2e/3/3e2/4/flex.

Support L2 switching functions, such as aggregation, VLAN, QinQ and L2 QoS.

Enable any service scheduling from electronic layer to photonic layer to enhance network flexibility.

  • Self-adaptive multi-service access

Support the client supports 100M-100G any service access: the access of STM-N, FE/GE/10GE/40GE/100GE, OTU1/2/3/4, DVB, ESCON and FC services.

The universal service access board enables hybrid transmission of the operator’s multiple services.

  • Complete network protection

Provide perfect photonic layer and electronic layer protection schemes, in which, the unique and patented path shared protection technique realizes higher system wavelength utilization and lowered network construction investment.

Photonic layer protection: path shared ring protection, multiplex section shared ring protection, sub-network connection protection, 1+1 multiplex section protection, optical line protection.

ODUk layer protection: ODUk sub-network connection protection, ODUk shared ring protection.

L2 protection: ESR Ethernet ring protection.

  • Highly reliable system architecture

Provide 1+1 backup for main control unit, power module unit, cross-connect unit, and common interface unit, and adopt high reliability design at sub-rack level and cross-sub-rack level.

  • WASON

Support GMPLS-based WASON control plane, and enable auto-discovery of network resources and topology, auto-routing and auto-switching of signaling, as well as auto-setup of service route, fast end-to-end service provisioning, traffic grooming and traffic control, boosting network survivability and improving network resource utilization.

  • Highly integrated and low power consumption

A single cabinet supports 80 wavelengths, resulting in equipment room space saving and power consumption reduction and greatly lowering operation & maintenance expense.Average power is 29.105W per wavelengt.

  • Smooth upgrade of system

Support smooth upgrade from 10G system to 100G system.

Support smooth upgrade of 100GHz->50GHz spacing.

  • PIC (photonic integrated circuit)

Single sub-rack can support service access, cross-connection, MUX/DEMUX, optical amplification, clock processing and transmission functions. By adopting PIC technology, lower power consumption and cost-effective can be realized.

  • Synchronization

Support out band 1588V2 transmission and synchronous Ethernet transmission.

  • Intelligent management of system

Support APO automatic performance optimization to keep the system in optimal performance, drive down maintenance cost, and automatically adapt to changes of environmental parameters.

Provide IWF, the patented centralized wavelength control technique to ensure wavelength stability in 50GHz- and 25GHz-spacing systems.

ECC/DCC supports OSPF protocol, realizing auto-discovery of NE and automatic routing configuration and achieving good network scalability.
