Specifications
Model Number :
ZTE ZXCTN 6500
Place of Origin :
China
Brand Name :
Huawei
Number name :
ZXCTN 6500 PCGA
Application :
FTTH FTTB FTTX Network
Certification :
CE FCC RoHS
Color :
Metal Chasis
Packaging Details :
Export carton package
Port :
Shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

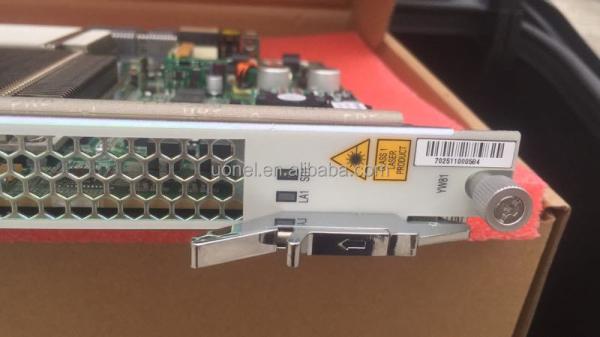

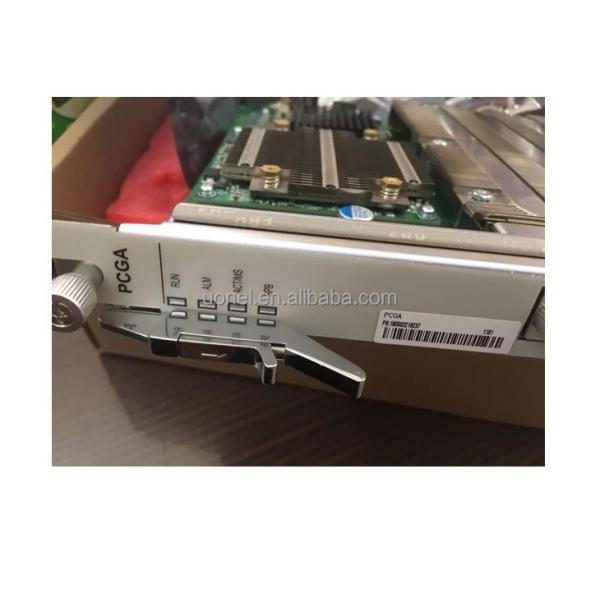

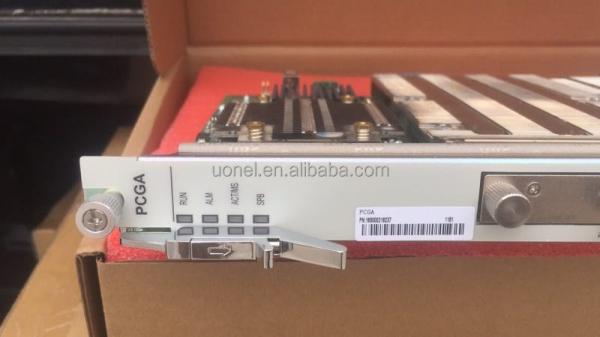

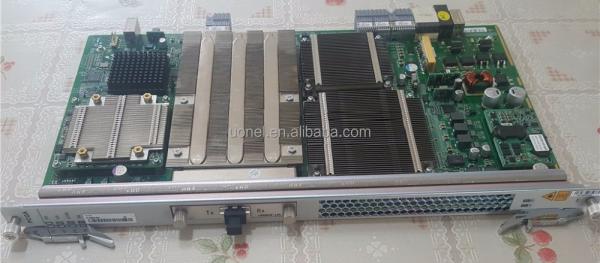

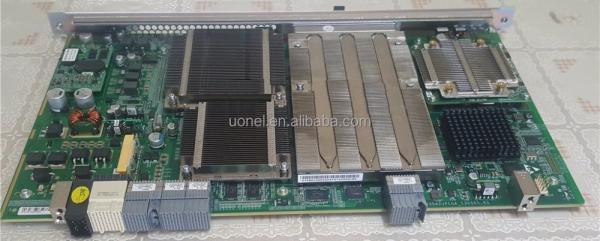

ZTE PCGA 100GE CFP 10KM SFP 1port Data

Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500

Contact Us

ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500

ZTE deeply studies development trends of bearer network technologies and launches a new generation of flagship packet transport product ZXCTN 6500 series in combination with the features of enterprise customers and telecommunications service transport. The ZTE ZXCTN 6500 is the industry's first 100GE/100G channelized product. With the unified switching, it can transmit MPLS-TP packet services and CBR (TDM) services at the same time and support such service interfaces as E1, ch/CEP STM 1/4, FE, GE, 10GE, 40GE and 100GE/OTU4. It also supports the unified and efficient transport of L1/L2/L3 services and SDN-oriented control architecture. The ZXCTN 6500 series has T-level large capacity, 300mm depth, high/low-rate slot partition and de-coupling design, and provides all-round protection, high-precision 1588V2 time synchronization and other functions. It effectively solves the problems of bearer network in IP, bandwidth and integrated service directions.ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500

Product Feature

ZXCTN 6500 series

ZXCTN 6500-8

ZXCTN 6500-16

ZXCTN 6500-32

Standards

ITU-T and IEEE standards

L2 services

Jumbo frame (9K), VLAN and QinQ, link aggregation (LAG/LACP), FE/GE/10GE/40GE/100GE interfaces, MAC/VLAN/IP-based load balancing, broadcasting storm suppression, L2 broadcasting IGNP snooping V1/V2 and static L2 VPN.

L3 services

Basic services: ARP, IPv4 unicast route forwarding, static route, ECMP, ICMP, VRRP and IP FRR.

Static L3 VPN: VRF, L3VPN tunnel and VPN FRR services, etc.

Service slots

18 (8 high speed slot+10 low speed slot)

44 (16 high speed slot+28 low speed slot)

32 (32 high speed slot)

Access capabilities

800G

1.92T

3.84T

100GE/OTU4 interfaces

8

16

32

10GE interfaces

80

192

384

Subrack sizes (H×W×D)

531*441*285mm³

1022*497* 285mm³

1553*441*285mm³

Typical power consumption

(10GE/100GE)

650W/1400W

1050W/2600W

2050W/5800W

Device-level protection

Main control switching unit: 1+1 protection

Power supply unit: 1+1 protection

Switching unit: 2+1 protection

Main control unit: 1+1 protection

Power supply unit: 2 groups of 1+1 protection

Switching unit: 4+2 protection

Main control unit: 1+1 protection

Power supply unit: 4 groups of 1+1 protection

Main performance

Service interfaces:

TDM E1/ch.STM-1/ch.STM-4, CEP STM-1/STM-4, FE (O/E), GE (O/E), 10GE, 40GE, 100GE and PO channelized interfaces

Network-level protection:

LSP/PW 1+1/1:1 protection, ring protection (including shared ring), dual-homing protection, SD-based inspection protection, FRR protection, VRRP protection and MSP protection.

Cabinet sizes

2000/2200*600*300mm³

Power supply

DC: -48V

MTBF/MTTR

>300000 hours/ <0.5hour

Temperature and humidity

Working temperature: 0°C -+45°C

Working humidity: 5%~95%

Altitude

<4000 m

Earthquake resistance level

Level 9

Solutions

Core and Aggregation Platform - ZTE Enterprise

The ZXCTN 6500 mainly transmits wireless backhaul, VIP and OLT services. It is applied to national backbone, provincial backbone and metro core/aggregation layers.ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500

Wireless backhaul transport: Wireless backhaul services adopts MPLS-TP over ODUk, 2G/3G services L2VPN, LTE services L2VPN+L3VPN, and core/aggregation-layer services L3VPN.

VIP service transport: Enterprise customers/ordinary VIP IP private-line/private network services and TDM private-line services are transmitted in the L2VPN OVER MPLS-TP over ODUk mode. Enterprise customers transmit CBR services in the L1 OVER ODUk mode.

OLT service transport: OLT services adopt L1 OVER ODUk. After reaching core/aggregation POTN nodes, they are sent to the corresponding SR/BRAS.

Warranty

ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500

ZTE PCGA 100GE CFP 10KM SFP 1port Data Communication ZXCTN 6500-8 ZXCTN6500-16 6500-32 ZTE PTN 6500

Company profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.

Our Services

Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
