Specifications
Model Number :

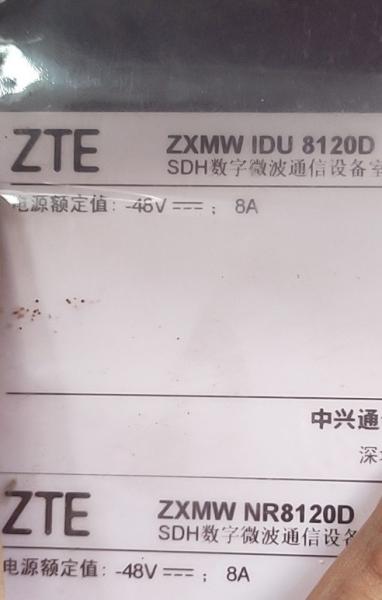

ZTE ZXMW NR8120D
Place of Origin :
China
Brand Name :
Huawei
Product name :
ZXMW NR8120D
Type :
Wireless
Application :
Microwave
Warranty :
1 Year
Packaging Details :
Export carton package
Port :
Shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120

Contact Us

ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120

Overview

With the rapid development of broadband data traffic requirement from mobile subscriber, the transmission service type in mobile backhaul network has been changed from 2G’s TDM network to 3G (as well as WiMax and LTE)’s all IP network, For the change of requirements of backhaul network, the MW transmission equipment has being evolved from traditionalTDM to Hybrid and continued to All Packet modal.

ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120

ZXMW NR8120 is unique microwave equipment which can meet the current and the future requirement of mobile backhaul network in tail access or east-west repeat scenario. It provides rich service interfaces, such as Native TDM E1 interface, CES E1 interface and Native Ethernet (FE/GbE) interface. Meanwhile, it supports smooth evolution to ALL Packet Network.

Benefits

  • High-Quality Transmission Services

ACM & ATPC Technologies to Enhance the Service Availability

Intelligent QoS Mechanism for Service Monitoring

Network and Equipment Protection

Maximize Throughput with Header Compression Technique

  • Low TCO

1 U Height, Easy Installation, Save Space

Diversified Synchronization Methods without GPS ,Low Cost Solution

ACM Technology Reduces TCO

  • Smooth Evolution for Future

Convergent Architecture for Smooth Evolution

Unified NMS

ZTE unified network management system, which integrates MW, RAN, CN, OTN and Power platform, saves investment & improves the maintenance efficiency.

Summary

ZTE can offer our global customer future-oriented and high-efficiency wireless total solutions.

ZTE MW Radio System will continue your success in mobile broadband era by cooperating with you in ZXMW NR8120.

Product Feature
Radio Core Cross & Modem Unit C

RCMUC

Lead code:

180000304392 Core Main Control Switching Modulation and Demodulation Board C

180000340163 NR8120A IDU (RCMUC, without daughter card or fan)

180000340164 NR8120A IDU (RCMUC+RTEA, no fan)

180000340165 NR8120A IDU (RCMUC+RTEB (PWE3/CES/Native 16*E1), no fan)

180000334052 Core Main Control Switching Modulation and Demodulation Board E

180000360149 NR8250D IDU (RCMUC+RTEA, with fan RFAF)

180000360150 NR8250D IDU (RCMUC+RTEC, with fan RFAF)

180000417239 NR8120A IDU (RCMUC+RTEB (PWE3/Native 16*E1), no fan)

Lead-free code:

180000343206 NR8120A IDU (RCMUC, no daughter card, no fan)

180000343208 NR8120A IDU (RCMUC+RTEB (PWE3/CES/Native 16*E1), no fan)

180000356649 NR8250D IDU (RCMUC+RTEC, RFAF with fans, lead free)

180000355974 NR8120A IDU (RCMUC+RTEC, no fan)

180000356648 NR8250D IDU (RCMUC+RTEA, RFAF with fans, lead free)

180000343207 NR8120A IDU (RCMUC+RTEA, no fan)

180000417241 NR8120A IDU (RCMUC+RTEB (PWE3/Native 16*E1), no fan)
RCMUC2

180000342040 NR8120A IDU (RCMUC2, without daughter card and fan)

180000342041 NR8120A IDU (RCMUC2+RTEA, no fan)

180000417240 NR8120A IDU (RCMUC2+RTEB (PWE3/Native 16*E1), no fan)

180000355976 NR8120A IDU (RCMUC2+RTEC, no fan)

180000343210 NR8120A IDU (RCMUC2+RTEA, no fan)

180000342042 NR8120A IDU (RCMUC2+RTEB (PWE3/CES/Native 16*E1), no fan)
Radio Modem Unit H RMUH
180000191611 Modulation and demodulation board H
180000129029 Modulation and demodulation board H
RMUN
180000373296 Modulation and demodulation board N

Radio Modem Unit HT RMUHT
180000253313 RMUHT

RMUNT board
180000369665 Modulation and demodulation board RMUNT

Radio Traffic Unit C RTUC
Lead code: 180000070656 transmission service board C (32*E1) RTUC
Lead-free code: 180000342993 transmission service board C (32*E1) RTUC
RTUA/RTUD
Lead: 180000007873 transmission service board A (16*E1)
Lead-free: 180000342991 transmission service board A (16*E1)
180000415864 Transmission service board D (PWE3/Native 16*E1)
Radio Fan B RFAB
Lead code: 180000070653 fan unit B
Lead-free code: 180000343008 fan unit B
RFAG
180000380213 Fan unit G
Radio Fan BT RFABT
Lead code: 180000253314 fan unit RFABT
Lead-free code: 180000343224 fan unit RFABT
RFAGT board
180000380215 Fan unit RFAGT
ZXMW NR8150 Radio FAN Unit C RFAC
180000241659 NR8150 fan unit C
180000343194 NR8150 fan unit C
RFAH
180000380214 Fan unit H
SRU V1.3 7G(QPSK-1024QAM 7-56MHz)
Lead code: 180000207833 outdoor unit SRU (7G, QPSK-1024QAM)
Lead-free code: 180000343013 outdoor unit SRU (7G, QPSK-1024QAM)
SRU V1.3 7G (QPSK-2048QAM 7-56 MHz) instead
Lead code: 180000291472 outdoor unit SRU (7G, QPSK-2048QAM)
Lead-free code: 180000343031 outdoor unit SRU (7G, QPSK-2048QAM)
SRU V1.3 8G(QPSK-1024QAM 7-56MHz)
Lead code: 180000207834 outdoor unit SRU (8G, QPSK-1024QAM)
Lead-free code: 180000343014 outdoor unit SRU (8G, QPSK-1024QAM
SRU V1.3 8G (QPSK-2048QAM 7-56 MHz) instead
Lead code: 180000291473 outdoor unit SRU (8G, QPSK-2048QAM)
Lead-free code: 180000343032 outdoor unit SRU (8G, QPSK-2048QAM)
SRU V1.3 13G(QPSK-1024QAM 7-56MHz)
Lead code: 180000194992 outdoor unit SRU (13 G, QPSK-1024QAM)
Lead-free code: 180000343017 outdoor unit SRU (13 G, QPSK-1024QAM)
SRU V1.3 13 G (QPSK-2048QAM 7-56 MHz) instead
Lead code: 180000291476 outdoor unit SRU (13 G, QPSK-2048QAM)
Lead-free code: 180000343035 outdoor unit SRU (13 G, QPSK-2048QAM)
SRU V1.3 15G(QPSK-1024QAM 7-56MHz)
Lead code: 180000194991 outdoor unit SRU (15 G, QPSK-1024QAM)
Lead-free code: 180000343018 outdoor unit SRU (15 G, QPSK-1024QAM)
SRU V1.3 15 G (QPSK-2048QAM 7-56 MHz) instead
General code with lead and without lead: 180000343036 outdoor unit SRU (15 G, QPSK-2048QAM)
SRU V1.3 18G(QPSK-1024QAM 7-56MHz)
Lead code: 180000207836 outdoor unit SRU (18 G, QPSK-1024QAM)
Lead-free code: 180000343019 outdoor unit SRU (18 G, QPSK-1024QAM)
SRU V1.3 23 G (QPSK-2048QAM 7-56 MHz) instead
General code with lead and without lead: 180000343038 outdoor unit SRU (23 G, QPSK-2048QAM)
SRU V1.3 26 GHz(QPSK-1024QAM 7-56MHz)
Lead code: 180000312772 outdoor unit SRU (26 G, QPSK-1024QAM, self-developed)
Lead-free code: 180000345047 outdoor unit SRU (26 G, QPSK-1024QAM, self-developed)
SRU V1.3 26 G (QPSK-2048QAM 7-56 MHz) instead
Lead code: 180000312773 outdoor unit SRU (26 G, QPSK-2048QAM, self-developed)
Lead-free code: 180000345048 outdoor unit SRU (26 G, QPSK-2048QAM, self-developed)
SRU V1.3 38 GHz(QPSK-1024QAM 7-56MHz)
Lead code: 180000312775 outdoor unit SRU (38 G, QPSK-1024QAM, self-developed)
Lead-free code: 180000345049 outdoor unit SRU (38 G, QPSK-1024QAM, self-developed)
SRU V1.3 38 G (QPSK-2048QAM 7-56 MHz) instead
Lead code: 180000312776 outdoor unit SRU (38 G, QPSK-2048QAM, self-developed)
Lead-free code: 180000345050 outdoor unit SRU (38 G, QPSK-2048QAM, self-developed)
SRU(26G, QPSK-1024QAM,ODM)
Lead code: 180000207838 outdoor unit SRU (26 G, QPSK-1024QAM, ODM)
Lead-free code: 180000343021 outdoor unit SRU (26 G, QPSK-1024QAM, ODM)
SRU (26 G, QPSK-2048QAM, ODM)
Device substitution
Lead code: 180000291480 outdoor unit SRU (26 G, QPSK-2048QAM, ODM)
Lead-free code: 180000343039 outdoor unit SRU (26 G, QPSK-2048QAM, ODM)
SRU(38G, QPSK-1024QAM 7-56MHz,ODM)
Lead code: 180000207841 outdoor unit SRU (38 G, QPSK-1024QAM, ODM)
Lead-free code: 180000343024 outdoor unit SRU (38 G, QPSK-1024QAM, ODM)
SRU (38 G, QPSK-2048QAM, ODM)
Device substitution
Lead code: 180000343042 outdoor unit SRU (38 G, QPSK-2048QAM, ODM)
Lead-free code: 180000343042 outdoor unit SRU (38 G, QPSK-2048QAM, ODM)
SRU V1.5 13G(QPSK-4096QAM 7-56MHz)
Lead code: 180000372161 outdoor unit SRU1.5 (13 G, QPSK-4096QAM)
Lead-free code: 180000373293 outdoor unit SRU1.5 (13 G, QPSK-4096QAM)
SRU2 (13 G, QPSK-4096QAM, 7-56 MHz)
Device substitution
180000378192 Outdoor unit SRU2 (13 G, QPSK-4096QAM, A)
180000422581 Outdoor unit SRU2 (13 G, QPSK-4096QAM, B)
SRU V1.5 15G(QPSK-4096QAM 7-56MHz)
Lead code: 180000372162 outdoor unit SRU1.5 (15 G, QPSK-4096QAM)
Lead-free code: 180000373294 outdoor unit SRU1.5 (15 G, QPSK-4096QAM)
SRU2 (15 G, QPSK-4096QAM, 7-56 MHz)
Device substitution
180000368765 Outdoor unit SRU2 (15 G, QPSK-4096QAM, A)
180000422582 Outdoor unit SRU2 (15 G, QPSK-4096QAM, B)
SRU V1.5 23 GHz(QPSK-4096QAM 7-56MHz)
Lead code: 180000373290 outdoor unit SRU1.5 (23 G, QPSK-4096QAM)
Lead-free code:180000373292 Outdoor unit SRU1.5 (23 G, QPSK-4096QAM)
SRU2 (23 G, QPSK-4096QAM, 7-56 MHz)
Device substitution
180000350171 Outdoor unit SRU2 (23 G, QPSK-4096QAM, A)
180000422580 Outdoor unit SRU2 (23 G, QPSK-4096QAM, B)
HRU V1.3 6GHz(QPSK-1024QAM 7-56MHz ODM)
Lead code: 180000138291 outdoor unit HRU (6G, QPSK-1024QAM)
Lead-free code: 180000343026 outdoor unit HRU (6G, QPSK-1024QAM)
HRU V1.3 6 GHz (QPSK-2048QAM 7-56 MHz ODM)
Device substitution
180000333606 Outdoor unit HRU (6G, QPSK-2048QAM)
HRU V1.3 7GHz(QPSK-1024QAM 7-56MHz ODM)
Lead code: 180000138292 outdoor unit HRU (7G, QPSK-1024QAM)
Lead-free code: 180000343027 outdoor unit HRU (7G, QPSK-1024QAM)
HRU V1.3 7 GHz (QPSK-2048QAM 7-56 MHz ODM)
180000333607 Outdoor unit HRU (7G, QPSK-2048QAM)
HRU V1.3 8GHz(QPSK-1024QAM 7-56MHz ODM)
Lead code: 180000138293 outdoor unit HRU (8G, QPSK-1024QAM)
Lead-free code: 180000343028 outdoor unit HRU (8G, QPSK-1024QAM)
HRU V1.3 8 GHz (QPSK-2048QAM 7-56 MHz ODM)
Device substitution
180000333608 Outdoor unit HRU (8G, QPSK-2048QAM)
HRUTV1.3 6GHz(QPSK-1024QAM28/40/56MHzODM)
180000253853 outdoor unit HRUT (6G, QPSK-1024QAM)
HRUT V1.3 6 GHz (QPSK-2048QAM 28/40/56 MHz ODM)
Device substitution
180000380932 Outdoor unit HRUT (6G, QPSK-2048QAM)
HRUTV1.3 7GHz(QPSK-1024QAM28/40/56MHzODM)
180000253854 outdoor unit HRUT(7G,QPSK-1024QAM)
HRUT V1.3 7 GHz (QPSK-2048QAM 28/40/56 MHz ODM)
Device substitution
180000380933 Outdoor unit HRUT (7G, QPSK-2048QAM)
HRUT V1.3 8GHz(QPSK-1024QAM 28/40/56MHz ODM)
180000253855 outdoor unit HRUT(8G,QPSK-1024QAM)
HRUT V1.3 8 GHz (QPSK-2048QAM 28/40/56 MHz ODM)
Device substitution
180000380934 Outdoor unit HRUT (8G, QPSK-2048QAM)
HRUT V1.3 11GHz(QPSK-1024QAM 28/40/56MHz ODM)
180000253856 outdoor unit HRUT(11G,QPSK-1024QAM)
HRUT V1.3 11 GHz (QPSK-2048QAM 28/40/56 MHz ODM)
Device substitution
180000391218 Outdoor unit HRUT (11 G, QPSK-2048QAM)
NR8950 7 GHz(QPSK-1024QAM 7-56MHz XPIC)
Lead code: 180000312752 NR8950 (7G, 1024QAM, XPIC)
Lead-free code: 180000343226 NR8950 (7G, 1024QAM, XPIC)
NR8950 7 GHz (QPSK-2048QAM 7-56 MHz XPIC)
Device substitution
Lead code: 180000312765 NR8950 (7G, 2048QAM, XPIC)
Lead-free code: 180000343239 NR8950 (7G, 2048QAM, XPIC)
NR8950 8 GHz(QPSK-1024QAM 7-56MHz XPIC)
Lead code:180000312753 NR8950(8G,1024QAM,XPIC)
Lead-free code:180000343227 NR8950(8G,1024QAM,XPIC)
NR8950 8 GHz (QPSK-2048QAM 7-56 MHz XPIC)
Device substitution
Lead code: 180000312766 NR8950 (8G, 2048QAM, XPIC)
Lead-free code: 180000343240 NR8950 (8G, 2048QAM, XPIC)
NR8950 13 GHz(QPSK-1024QAM 7-56MHz XPIC)
Lead code:180000312756 NR8950(13G,1024QAM,XPIC)
Lead-free code:180000343230 NR8950(13G,1024QAM,XPIC)
NR8950 13 GHz (QPSK-2048QAM 7-56 MHz XPIC)
Device substitution
Lead code: 180000312767 NR8950 (13 G, 2048QAM, XPIC)
Lead-free code: 180000343242 NR8950 (13 G, 2048QAM, XPIC)
NR8950 15 GHz(QPSK-1024QAM 7-56MHz XPIC)
PN:180000312757 NR8950(15G,1024QAM,XPIC)
Lead-free code:180000343231 NR8950(15G,1024QAM,XPIC)
NR8950 15 GHz (QPSK-2048QAM 7-56 MHz XPIC)
Device substitution
Lead code: 180000312768 NR8950 (15 G, 2048QAM, XPIC)
Lead-free code: 180000343243 NR8950 (15 G, 2048QAM, XPIC)
NR8950 18 GHz(QPSK-1024QAM 7-56MHz XPIC)
Lead code:180000312758 NR8950(18G,1024QAM,XPIC)
Lead-free code:180000343232 NR8950(18G,1024QAM,XPIC)
NR8950 18 GHz (QPSK-2048QAM 7-56 MHz XPIC)
Device substitution
Lead code: 180000312769 NR8950 (18 G, 2048QAM, XPIC)
Lead-free code: 180000343244 NR8950 (18 G, 2048QAM, XPIC)
NR8950 23 GHz(QPSK-1024QAM 7-56MHz XPIC)
Lead code:180000312759 NR8950(23G,1024QAM,XPIC)
Lead-free code:180000343233 NR8950(23G,1024QAM,XPIC)
NR8950 23 GHz (QPSK-2048QAM 7-56 MHz XPIC)
Device substitution
Lead code: 180000312770 NR8950 (23 G, 2048QAM, XPIC)
Lead-free code: 180000343245 NR8950 (23 G, 2048QAM, XPIC)
Warranty

ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120

ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120

Company profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.

Our Services

Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.











































































































































































































































Product tags

rf 868mhz

,

toshiba transistor radio

,

panasonic clock radio
Send your message to this supplier
Send Now

ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120

Ask Latest Price
Product Detail
Model Number :
ZTE ZXMW NR8120D
Place of Origin :
China
Brand Name :
Huawei
Product name :
ZXMW NR8120D
Type :
Wireless
Application :
Microwave
Contact Supplier
ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120
ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120
ZTE ZXMW NR8120D ZTE ZXMW NR8000 SDH Digital Microwave System ZTE ZXMW NR8120

Uonel Co.Limtied

Site Member
5 Years
shenzhen
Since 2008
Business Type :
Distributor/Wholesaler, Agent, Importer, Exporter, Trading Company, Seller
Main Products :
Huawei Telecom Equipment, Huawei Telecom Router, Huawei Network Switches
Total Annual :
>100000000
Employee Number :
100~500
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Huawei SDH
MachineU China Products Consumer Electronic TV Receivers & Accessories Radio & TV Broadcasting Equipment
Contact Supplier
Submit Requirement
