Specifications
Model Number :
ZTE C320
Type :
Fiber fusion splicer, OLT
Place of Origin :
China
Brand Name :
Huawei
Product name :
ZTE OLT C320 Optical Access Equipment
Application :
FTTH FTTB FTTX Network
Name :
OLT C320
Power supply :
Dual DC: 48V/60V AC: 100V~240V
Sevice card :
GTGO(8*GPON) /GTGH(16*GPON
Capacity :
GPON up to 32 ports
Dimension :
86.1 mm (height) x 482.6 mm x 270mm
Packaging Details :
Export carton package
Port :
Shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

ZTE Network Access GPON EPON OLT C320 Mini 10GE OLT

Contact Us

ZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLT

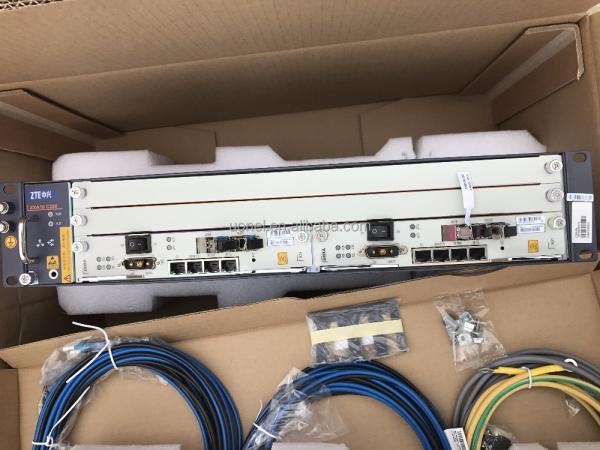

ZXA10 C320 Full-Service Optical Access Platform

ZXA10 C320, a compact design, full-service optical access platform, with the advantages of flexible and fast deployment, provides carrier-class QoS and reliable network for small-scale implementation of FTTx services.

The ZXA10 C320 is a converged all-service optical access platform with small capacity, high density for the next generation of optical access. It supports GPON, EPON, P2P.

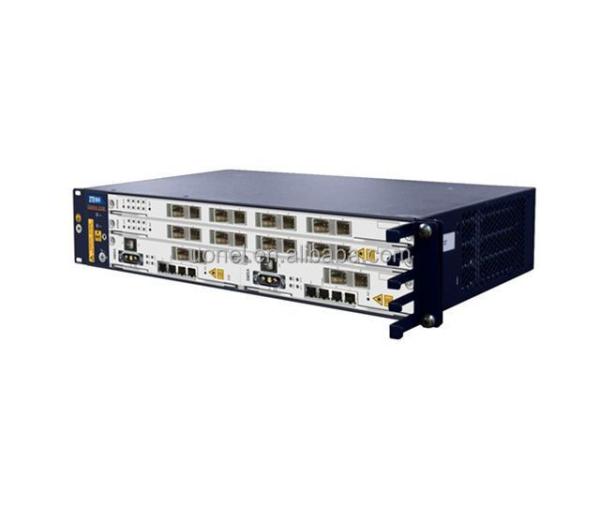

The ZXA10 C320 is a small-capacity OLT with 2U height. It can be installed in 19inch rack with 300mm depths. ZXA10 C320 is compatible with all ZXA10 C300 line cards, including xPON cards, and P2P cards. The single system can provide up to 1,024 (splitting ratio 1:64) ONTs access.ZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLT

ZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLT

Product Feature

Compact design

Achieves room space saving, and be suitable for suburban district, enterprises, township and rural area.

2U-high frame

With 2 service slots compatible with ZXA10 C300 line cards.

GPON/EPON/P2P supporting

It greatly saves the initial investments and enhance the operator’s competitiveness.

Flexible networking

Supports FTTH,FTTO, FTTB, FTTV, FTTx+Remote-CMTS and mobile backhaul, enhances the network ability with deployment of the ZXA10 C300.

Higher reliability and protection

Provides boards redundancy and hot swappable, supports type B and type C protection for PON downlink and RSTP/ERPS/UAPS/LACP for uplink.

Perfect clock/time synchronization

Supports synchronous Ethernet and 1588V2 to meet the network and service requirements for mobile backhaul.

Powerful QoS control and E-OAM

Supports three-level hierarchical QoS and provides E-OAM functions for efficient network management.

Green design

Supports multiple ways to reduce the power consumption and complies with the Europe CoC standard.ZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZXA10 C320 -

1. Unified Platform Lowering TCO and Preserving Initial Investments

As a unified platform, ZXA10 C320 supports GPON, EPON, P2P.

The ZXA10 C320 is compatible with all ZXA10 C300 line cards, including xPON cards, and P2P cards.

2. Small Size and High Density to Meet Requirements of the Sparse Areas and Market

ZXA10 C320 with non-blocked line rate switching capability, support 1:64 splitter ratio and long reach up to 20km coverage, up to 1024 subscribers. ZXA10 C320 only has 2U high, easy installation.

3. Full Redundancy Support to Ensure Carrier-class Reliability

The key parts of the system, including the main control card, the power input, work in active/standby mode or in redundant mode.

4. Mobile Backhaul Over PON Solution Can Achieve Fixed Mobile Convergence

ZXA10 C320 support time and clock synchronization, support TDM clock source to meet the networking and service requirements for mobile backhaul.

5. Powerful QoS and Security Control to Ensure Multiple Service Provision

The system has powerful abilities for multicast control, bandwidth allocation as required, priority control, rate limitation and security control, meets QoS and security requirements of different services such as VoIP, HSI, Video, VPN and others to improve ARUP.

6. Efficient OAM Process with Easy Management and Maintenance

The platform supports troubleshooting, alarm, quick diagnose and remote recovery, series of schemes including equipment authentication, service release, remote management and network security are provided.

7. Green Product Assure a Green Communication

With the low power consumption design, ZXA10 C320 is leading in the energy saving. The design complies with Europe CoC, RoHS and relative energy saving and environment protection requirements.

ZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLTZTE C320 Original Mini ZTE ZXA10 C320 FTTx Networks Optical Line Terminal EPON/GPON OLT

System Architecture

•Capacity
GPON up to 16 ports
EPON up to 16 ports
Uplink interfaces up to 4 *GE (Optical )+2*GE(Electronic) or 2*10GE(Optical )+2*GE(Optical ) +2*GE(Electronic)
•Chassis Configuration (19”) Total 5 slots
2 slots for universal line cards 2 slots for switch& control cards 1 slot for fan module
Subscriber Card Density
GPON card: 8 ports per card
EPON card: 8 ports per card
GE card: 8 ports per card
Uplink interface card
1*10GE optical port ( Configurable 1*GE optical port)
1*GE optical port
1*10 M/100 M/1000 M electrical Ethernet port
Common interfaces
1*environment monitoring interface 1*management interface
1*maintainance serial interface

Environment

•Operating temperature: -25 °C ~55 °C ( long term), -25°C ~65°C (short term)

•Operating humidity: 5% ~ 95%(short term), 10%~100%(long term) non-condensing
•Air pressure: 70 kPa - 106 kPa
Power Supply
•Working voltage: -48 V/-60V, later will support 220V AC (±20%, 50Hz)

PON Features

PON Features
EPON compliant with IEEE 802.3ah
GPON compliant with ITU G.984.x
Support 1:64 optical split ratio for
GPON/EPON
Support OLS (Optical Laser Supervising )
•Max logical reach: 60km
Max physical reach: 20km
Max link difference: 20km
High-efficient DBA: NSR-DBA,SR-DBA
Synchronous Ethernet
Transceiver power budget: Class B+ or class C+
•Type B and type C optical uplink protection
•Support FEC
•Support AES128
•Support SCB
•Support 1550nm for third party CATV broadcasting
•Traffic statistics
WRED and triple color
SLA: CIR, PIR, EIR, MBS

L2/L3 Features

•1:1/N:1 VLAN
•802.1ad, SVLAN, Selective QinQ, VLAN stacking
Line-rate forwarding
STP/RSTP/MSTP compliant to IEEE 802.1d/802.1w/802.1s
UAPS/EAPS/LACP protection
Link aggregation IEEE 802.3ad
L3 routing:
Multicast – IPTV
QoS
Queue & scheduling mechanism: SP,
DWRR, SP+DWRR
IPv4 DSCP Diffserv
Stream classification, rate limiting, shaping and priority setting

Security

L2- L4 ACL
IP and MAC source guard
Resistance against DOS attacks
MAC/IP anti-spoofing (MAC binding, IP binding, DHCP snooping)
Anti-flooding: broadcast packet suppression, IGMP packet suppression, DHCP packet suppression
MAC address number limit based on VLAN or GEM-port
Port mirroring
User port identification such as PPPOE+ and DHCP Option 82


O&M

•Operator security, Multi-privileged operator, SSH v1/v2, FTP/TFTP, ACL

•Management protocol and interface: CLI, Telnet ,SNMP V1/V2C/V3, MIBII

•Remote firmware download and upgrade

•Environment monitoring, control and alarm


Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
