In the latest wave of broadband acceleration, utilizing the last-mile copper wire is a rational choice for operators. Compared with FTTH, which is costly and difficult in terms of wiring, FTTB/C + DSL is a more cost-effective solution.

ZTE has launched an integrated pizza box-shaped access unit, ZXDSL9816, to help operators achieve high bandwidth easily.

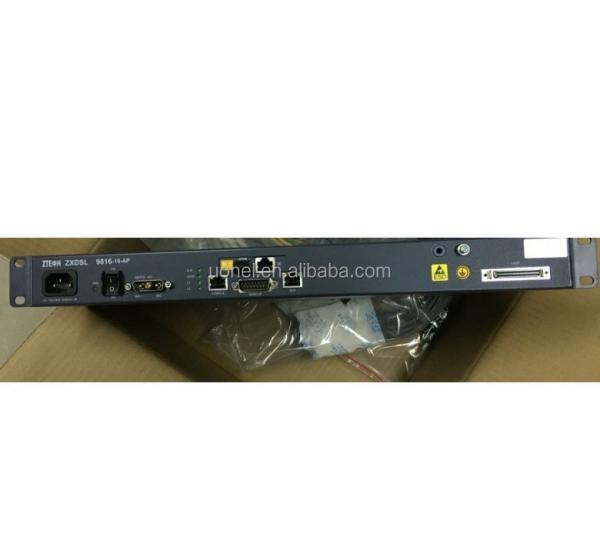

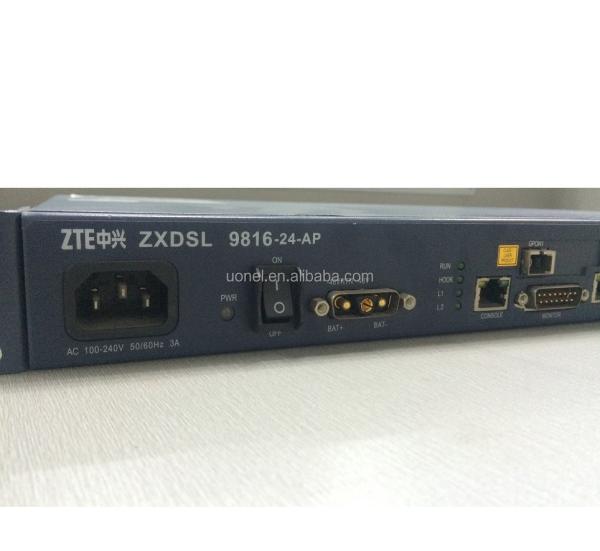

ZXDSL 9816 is an EPON Optical Network Unit used in an FTTB/FTTC environment. It is a small sized device that supports POTS and ADSL2+ access. ZXDSL 9816 provides an EPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTB/C access.

Interface Function

Optical ports (line terminal):

• EPON interface (SC/PC)

• GE / FE n User

network interfaces:

• ADSL2+ interface

• POTS (VoIP) interface

• VDSL2

Transmission Rate

• Line terminal: Symmetrical 1.25Gbps for uplink and downlink

Transmission Distance

• Link distance: 0 ~ 20km max.

Transmission Wavelength

• Receiving: 1,490 nm

•Transmitting: 1,310 nm

Physical Performance

• Working temperature: -30oC ~60oC

• Working humidity: 5% ~95% n Weight: 4.5kg

• Power supply: -48V DC or/and 110V/220 V AC

• Mounting mode: Rack/Cabinet/Desktop/Pole

• None-fan design

Service Function

• Service: VoIP, Internet, IPTV

•SIP/H.248

•Codec: G.711a/u, G.729a/b, G.723.1

•Auto registration at power-on

• 802.1q and 802.1p, 802.1d

•STP, RSTP

•Support SP,WRR and SP+WRR

• Loop back test for user ports

• DBA and FEC

•Priority queues and scheduling

•VLAN Trunking and Stacking

•Automatic L2 learning and aging

• Support on-line version upgrade

•1K Multicast groups

•IGMP V1/2/3, IGMP snooping and proxy

•MVLAN: Multicast VLAN

•Channel Access Control (CAC), Preview (PRV) and Call Detail Record (CDR) for IPTV

Features

Compact design , flexible networking and easy Installation

Comprehensive maintenance, zero-touch O&M, low OPEX

• Unified, zero-touch remote O&M platform
• Multiple remote test methods, supporting DSL port loop test, internal and external POTS line test, and OLS test
• Real-time remote temperature, power, and access checking

High reliability, strong environmental adaptability

• Wide range of operating temperature: -30°C ~ 60°C
• Large voltage fluctuation: 90V ~ 290V AC power supply,
• -48V/+12V battery backup

High lightning protection

Energy saving, Environment-friendly

• Low power consumption, with average port power
• Consumption being less than that specified in EU CoC
• Eco-friendly and lead-free materials, harmless to human body
