ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300
Specifications
Model Number :
ZTE C300
Type :
OLT, OLT
Place of Origin :
China
Brand Name :
Huawei
Product name :
ZTE C300 OLT Equipment
Application :
FTTH FTTB FTTX FTTC Network Access Equiment
PON Capacity :
8-224Ports
Uplink Board :
2*GUFQ
Power Board :
2*PRWG
Control Board :
2*SCXM
Power Cable :
2Pcs
Chassis :
10U
Packaging Details :
Export carton package
Port :
Shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

New brand OLT C300 VoIP

router gateway with 8-ports 10G xPON Card from ZTE

Contact Us

ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300

The ZXA10 C300 allows operators to offer end users high bandwidth, multiple services, QoS and security efficiently and reduces the TCO. It provides stable technology and service platform for full-service access and management such as HSI, VoIP, TDM, IPTV, and mobile backhaul,etc.

ZTE ZXA10 C300 configuration:

2 SCXM control board; (SCXL For Option)

1 GPON or EPON 8 ports board with 8 Modules; (GTGH ETGH16Ports for Option)

2 GUFQ board(4SFP Slot), 2 uplink modules on each;(HUTQ( 10G Uplink) GUSQ(2SFP Slot & 2RJ 45 GE Ports) Board for Optioin)

2 PRWG power boards; (AC to DC Power Converter have to buy separate)

2 Power cables

1 RJ-45 first turn 9-pin RS-232 female network cable

1 RJ-45 Network cable

1 Earth Cable

ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300

Product Feature

Unified platform architecture

Delivers integrated access for GPON, EPON, P2P, 10G-EPON, XG-PON1 and TWDM-PON, achieves initial investment protection and smooth evolution.

Excellent capability

Fully meets the high-bandwidth network requirements with high system integration, large backplane bandwidth, high-density service cards, and non-blocking switching capability.

Higher reliability and protection

Provides boards redundancy and hot swappable, supports type B and type C protection for PON downlink and RSTP/UAPS/ERPS/LACP for uplink.

Perfect clock/time synchronization

Provides BITS, 1PPS+ToD, IEEE 1588V2 and synchronous Ethernet to deliver comprehensive time and clock synchronization.

Powerful QoS control and TDM capability

Supports three-level H-QoS based on service provider, user and service, provides TDM service bearing with STM-4, STM-1, E1 and T1.

Eco-friendly design

Supports multiple ways to lower the power consumption and complies with the Europe CoC, RoHS standards.

Chassis Configuration (19”)

Total 21 slots

14 slots for universal line cards

2 slots for switch& control cards

2 slots for power cards

2 slots for uplink and cascading interfaces

1 slot for environment detecting card

Specification:

Parameter ZTE ZXA10 C300
Capacity and Performance Backplane Capacity(bps) 3.2T
Exchange Capacity(bps) 800G
MAC address capacity MAX512K
Main control exchange board 2(main and spare)
Service board 14
EPON capacity single board:8*PON;single chassis:112*PON
typical configuration:224*PON/chassis
Uplink interface GE Single board: 4*GE(4 optical);
4*GE(4 electric);
2*GE(optical)+2*10M/100M/1000M(electric);
Chassis:8*GE,MAX 136*GE
10GE Per board:4*10GE(optical);
Chassis:8*10GE
User interface PTP Per board:16*FE or GE
Chassis:16 services slots,256*FE or GE
TDM interface E1/T1 Per card:32*E1/T1;
Chassis:16 service slots,512*E1/T1
STM-1/STM-4 Per board:2*STM-1or 1*STM-4;
Chassis:16 service slots,32*STM-1 or 16*STM-4
BITS interface BITS 2input/1output or 1input/2output
Power 2lineDC(-48V)
DC:-38V~-57V
Electrical Properties Dimension(mm) 19inch chassis 482.6*443.7*270mm
10U(9U insert box+1U fan)
Weight 36.6kg(full)
Heat Fan
Install Rack

Solutions

ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300

Warranty

ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

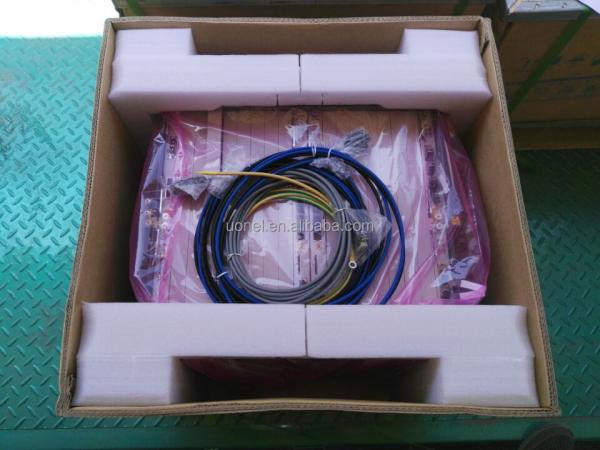

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300

ZTE C300 Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C300

Company profile

Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
