OptiX OSN 9800 TN97RPC Extended C band backward Raman processing board-- OSN9800 UPS

Functions and Features

The main function and feature supported by the RPC board are online optical performance monitoring.

For detailed functions and features, refer to Table 1.

Table 1 Functions and features of the RPC board
Function and Feature Description
Basic function
  • Supports backward Raman pump control.
  • Integrates with a Raman optical amplifier unit to amplify the input signals in the extended C-band, covering wavelengths within the range of 1528.8 nm to 1567.6 nm.
  • Generates multi-channel pump light of high power, providing energy for the amplification of signals in the fiber.
  • Implements the distributed online amplification of signals over long distance with wide bandwidth and low noise.
  • Supports the interlock switch. The interlock switch of a LINE port on the panel controls the power-on and power-off of the board and prevents eyes from being injured by laser when an optical fiber is inserted into or removed from the LINE port.
Online optical performance monitoring

Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Alarms and performance events monitoring Detects the optical power of the pump laser, temperature control current, pump current, and back facet current.

Supports board temperature detection and reporting.

Supports return loss detection.
FCD function

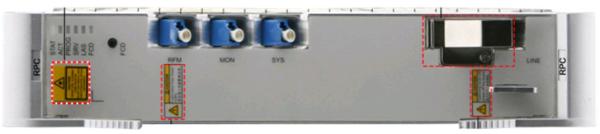

The FCD button and indicator are provided. You can press the FCD button on the front panel to trigger FCD. The detection process and results can be identified by the FCD indicator blinking frequency and indicator status. For details, see Front Panel.
Working mode

Supports the power locking modes.

TN97RPC Specifications

Specifications include optical specifications, weight and power consumption.

Optical Specifications

Table 1 Optical specifications of the RPC board
Item Unit Value
Pump wavelength range nm 1400-1500
Operating wavelength range nm 1528.8-1567.6
Maximum pump power dBm 31
Channel gain on G.652 fiber dB > 18
Channel gain on G.653 fiber dB > 16
Channel gain on LEAF fiber dB > 16
Channel gain on TWRS fiber dB > 16
Effective noise figure on G.652 fiber dB < -1
Effective noise figure on G.653 fiber dB < -1
Effective noise figure on LEAF fiber dB < -1
Effective noise figure on TWRS fiber dB < -1

PDLa

 dB < 0.5

PMDb

 ps < 0.5

a: polarization dependent loss

b: polarization mode dispersion

Mechanical Specifications

  • Dimensions of board (H x W x D): 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
  • Weight: 2.75kg (6.06 1b.)

Power Consumption

Board Typical Power Consumption (W) Maximum Power Consumptiona (W)
TN97RPC01 43 46
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
