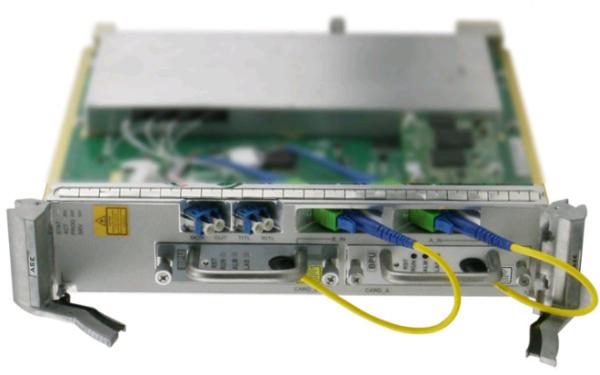

OptiX OSN 9800 TN97ASE Extended C-band Amplified spontaneous emission board with pump protection-- OSN9800 UPS

Functions and Features

The main functions and features supported by the ASE are generating dummy light, online optical performance monitoring, alarms and performance events monitoring.

For detailed functions and features, refer to Table 1.

Table 1 Functions and features of the ASE
Function and Feature Description
Basic function

Generate dummy light. The total wavelengths range from 1528.8 nm to 1567.6 nm.
Online optical performance monitoring

Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Working mode Supports power locking mode.
  • The power locking mode applies to the dummy light scenario where the ASE board is used as the light source. The optical power can be gradually increased, and the ASE board has light output if no light input is present.
Alarms and performance events monitoring
  • Detects and reports optical power.
  • Detects and controls pump laser temperature.
  • Detects pump driving current, back facet current, cooling current, and ambient temperature of board.
  • Checks and reports the working status of the pump card.
Protection
  • Provides redundancy protection for power supplies.
  • Provides redundancy protection for pump cards.
Online replacement of a pump card

When a pump card works properly, you can replace a faulty pump card without interrupting services.

ASE Specifications

Specifications include optical specifications, dimensions, weight and power consumption.

Optical Specifications

Table 1 Optical specifications of the TN97ASE board
Parameters Unit Specifications
Operating wavelength range nm 1528.8 to 1567.6
Output optical power range dBm 10 to 20
Output spectrum flatness dB

<2, @15dBm≤Output optical power≤20dBm

<3, @13dBm≤Output optical power<15dBm

<5, @10dBm≤Output optical power<13dBm
Pump leakage at output end dBm <-20
Return loss at output end dB >40
Middle insertion loss range TITL-RITL dB 0 to 7
Middle Output optical power range TITL dBm <19.5
Maximum reflectance tolerable at output dB -27

Mechanical Specifications

  • Dimensions of front panel (H x W x D): 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
  • Weight: 2.25 kg(4.95 lb.)

Power Consumption

Board Typical Power Consumption (W) Maximum Power Consumptiona a (W)
TN97ASE 37 47
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
