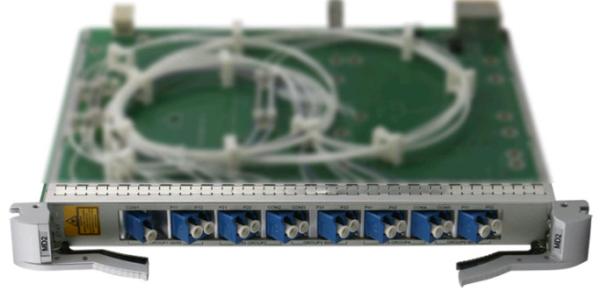

OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS
Specifications
Model Number :
TN97MD2
Place of Origin :
China
TN97MD2 :
2-port Multiplexing and Demultiplexing Board (Extended C Band)
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS

Functions and Features

The MD2 board supports wavelength multiplexing and demultiplexing and the monitoring of alarms and performance events.

Table 1 describes the functions and features of the MD2.

Table 1 Functions and features of the MD2 board
Function and Feature Description
Basic functions

Provides five groups of 1x2 couplers to implement wavelength multiplexing and demultiplexing. Three groups have a 50:50 split ratio, and two groups have a 90:10 split ratio.

Supports extended C band.

MD2 Specifications

Specifications include optical specifications, dimensions, weight, and power consumption.

Optical Specifications

Table 1 Optical specifications of the MD2 board
Item Unit Value
Operating wavelength range nm 1528.8 to 1567.6
Insertion loss

COM1-P11/P12

COM2-P21/P22

COM3-P31/P32

 dB < 4
COM4-P41

COM5-P51

 dB < 1
COM4-P42

COM5-P52

 dB < 12

Mechanical Specifications

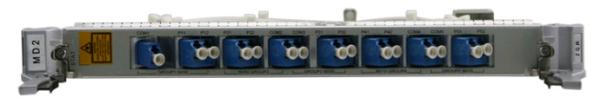

  • Dimensions of front panel (H x W x D): 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
  • Weight: 0.6 kg (1.32 lb.)

Power Consumption

Board Typical power consumption (W) Maximum power consumptiona (W)
TN97MD2 1.0 1.0
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
Delivery

Delivery Options Estimated Delivery Time
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPSDHL 3-5 business days
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS Fedex 3-5 business days
OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS By Sea 10-20 business days

OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPSNotice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPSDeliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPSDeliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS Free Technical Support:

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


OptiX OSN 9800 TN97MD2 2-port Multiplexing and Demultiplexing Board (Extended C Band)-- OSN9800 UPS Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed product: 1 Year

The Support Contacts:

If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.

Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
