Description

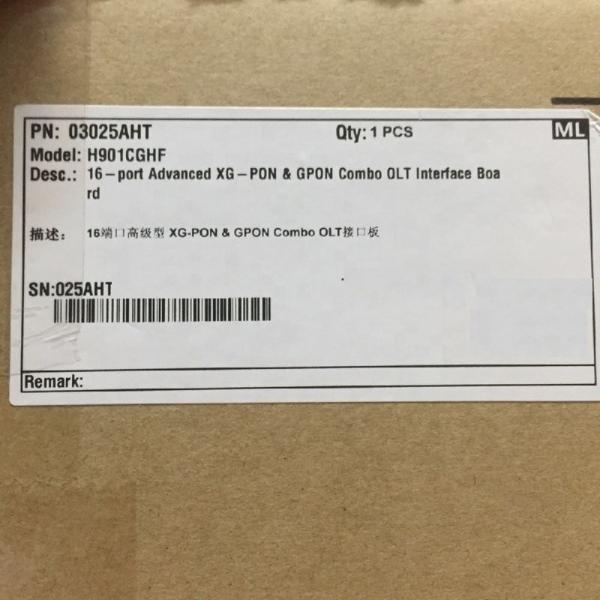

Huawei CGHF 16-Port XG-PON And GPON Combo OLT Interface Board H901CGHF

Contact Us

Huawei CGHF 16-Port XG-PON& GPON Combo OLT N2a Interface Board H901CGHF huawe MA5800 XEHD XGHD XELD XGLD CGID XEUD H902CGHF

Huawei MA5800 series 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module

Huawei 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module

Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system

Max split radio: 1:256

GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s

XG-PON channel: Tx: 9.95Gbit/s, Rx: 2.49Gbit/s

Interface Type: SC

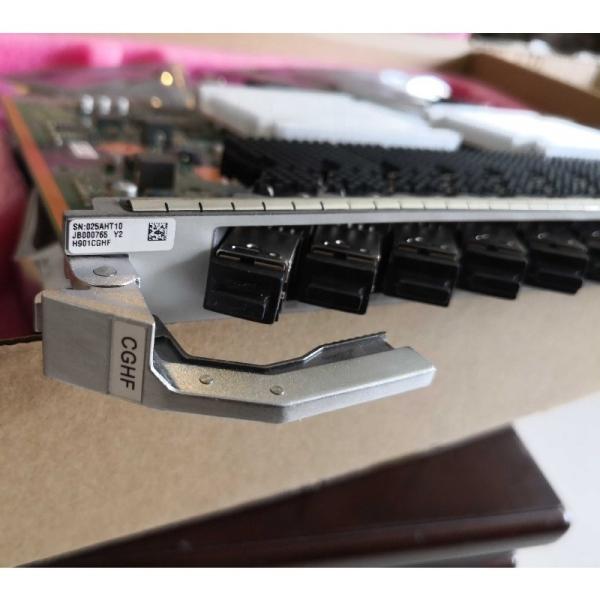

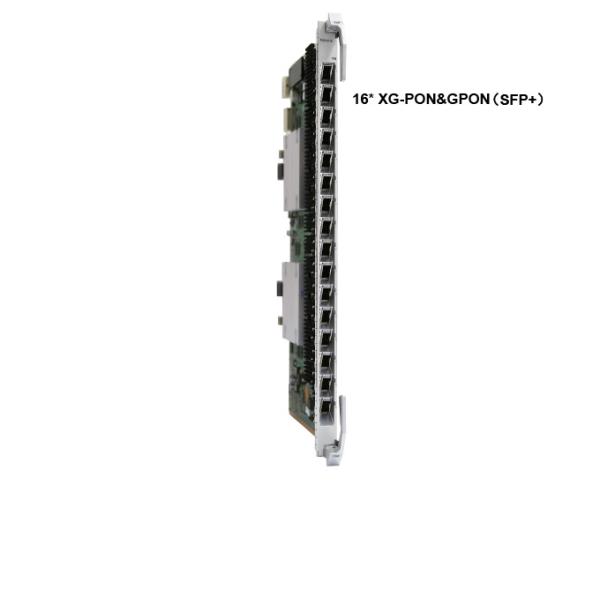

H901CGHF H902CGHF is a 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

Tech Specs

Specification
Service ports
GPON Port16 XG-PON & GPON ports

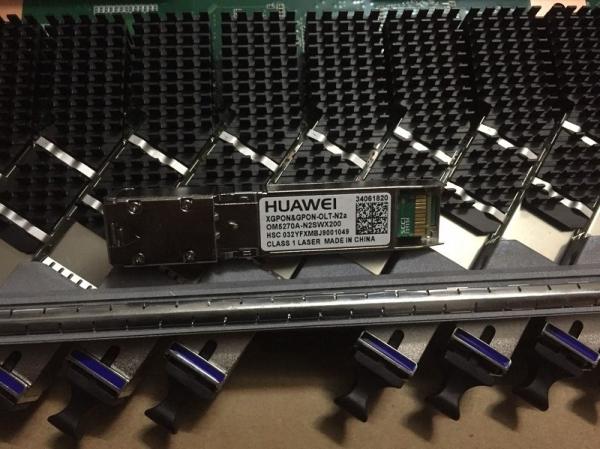

GPON SFP+ Module Specification
TypeOne-fiber bi-directional optical module
Operating WavelengthGPON channel:

Tx: 1490 nm

Rx: 1310 nm

XG-PON channel:

Tx: 1577 nm

Rx: 1270 nm

Encapsulation TypeSFP+
Port Rate

GPON channel:

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

XG-PON channel:

Tx: 9.953 Gbit/s

Rx: 2.488 Gbit/s

Minimum Output Optical Power

GPON channel: 3 dBm

XG-PON channel: 4 dBm

Maximum Output Optical Power

GPON channel: 7 dBm

XG-PON channel: 8 dBm

Maximum Receiver Sensitivity

GPON channel: -32 dBm

XG-PON channel: -29.5 dBm

Optical Connector TypeSC
Optical Fiber TypeSingle-mode
Overload Optical Power

GPON channel: -12 dBm

XG-PON channel: -9 dBm

Extinction Ratio8.2 dB
Function
Forwarding capability200 Gbit/s
Rate modeAsymmetric rate
T-CONTs per PON port

GPON: 1024

XG-PON: 2048

Service flows per PON board16352
Maximum frame size

2052 bytes

9216 bytes (jumbo frame enabled)

Maximum number of MAC addresses131072

Maximum distance difference between

two ONUs under the same PON port

40 km
Device Specifications
Dimensions (W x D x H)23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption

Static: 48 W

Maximum: 106 W

Operating temperature-40°C to +65°C

Warranty

Huawei CGHF 16-Port XG-PON& GPON Combo OLT N2a Interface Board H901CGHF huawe MA5800 XEHD XGHD XELD XGLD CGID XEUD H902CGHF

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Huawei CGHF 16-Port XG-PON& GPON Combo OLT N2a Interface Board H901CGHF huawe MA5800 XEHD XGHD XELD XGLD CGID XEUD H902CGHF

Huawei CGHF 16-Port XG-PON& GPON Combo OLT N2a Interface Board H901CGHF huawe MA5800 XEHD XGHD XELD XGLD CGID XEUD H902CGHF

Company profile

Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
