H902MPLA Board Description

The H902MPLA board is a control board. It is the core of the system control and service switching and aggregation. The H902MPLA board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel. In this manner, the H902MPLA board configures, manages, and controls the device, and also implements the simple route protocol functions.

Feature and Specifications

Please refer to "Comparison Between Boards of the Same Type".

Parameters

Please refer to "Power Consumption and Maximum Frame Size of Boards".

Working Principle

Figure 1 Working principle of the H902MPLA board

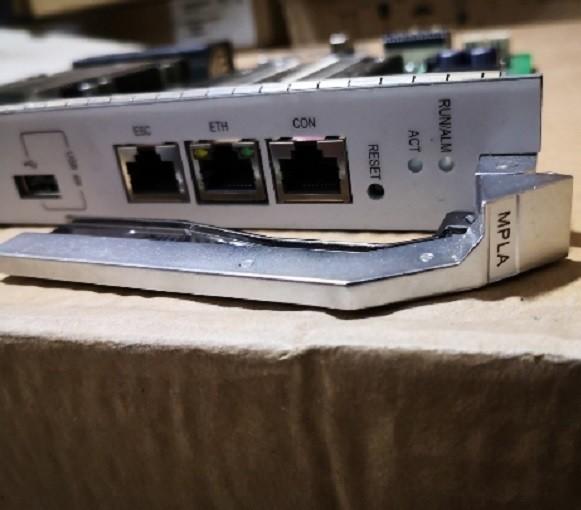

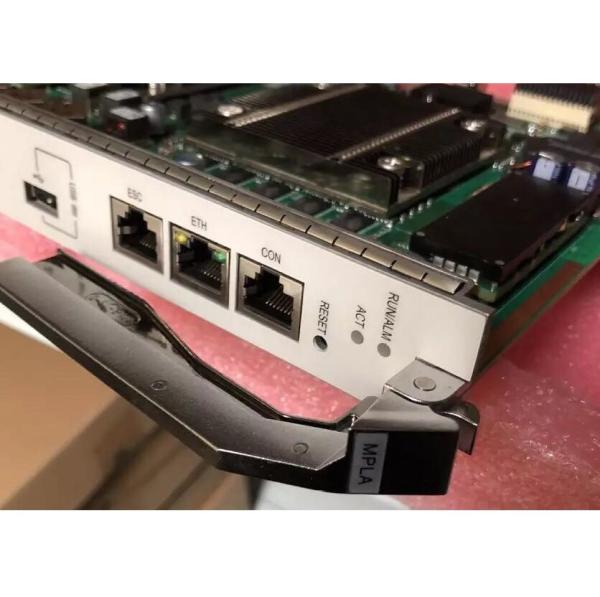

Front Panel Port

For details about supported optical module, see 10GE Optical Module and GE Optical/Electrical Module.

NOTE:

Default transmission rate of the upstream port or cascade port is 10000 Mbit/s (10GE), which can be set to 1000 Mbit/s (GE) by running the speed command.

Daughter Board

The H902MPLA board can be configured with a matching daughter board. Figure 2 shows the position of the daughter board on the H902MPLA board.

For details about the daughter board and functions supports by the H902MPLA board, see Daughter Board.

Figure 2 Position of the daughter board on the H902MPLA board
