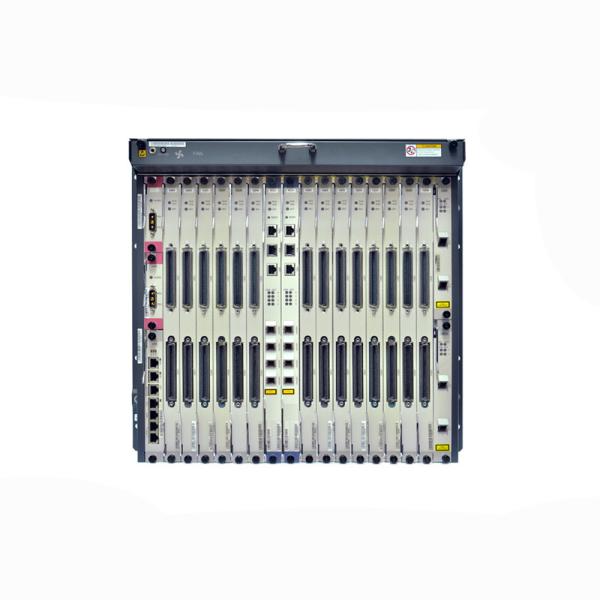

Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices
Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices
Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices
Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices
Specifications
Model Number :
OLT
Place of Origin :
China
Brand Name :
Huawei
Packaging Details :
Export carton package
Port :
shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

Huawei Access Network SmartAX MA5600T Series OLT MA5680T MA5683T MA5603T MA5608T MA5683 MA5680

Specifications

Specifications

MA5600T

MA5603T

MA5608T

Dimensions (H x W x D)

447 mm x 490 mm x 275.8 mm

263 mm x 442 mm x 283.2 mm

88 mm x 442 mm x 233.5 mm

Operating Environment

–25°C to +55°C

5% RH to 95% RH

–40°C to +65°C

5% RH to 95% RH

–40°C to +65°C

5% RH to 95% RH

Power

–48V DC power input

Dual-power supply protection

Operating voltage range of –38.4V to –72V

–48V DC power input

Dual-power supply protection

Operating voltage range of –38.4V to –72V

–48V DC power input

Dual-power supply protection

Operating voltage range of –38.4V to –72V

Switching Capacity — Backplane Bus

3.2 Tbit/s

1.5 Tbit/s

720 Gbit/s

Switching Capacity — Control Board

1,920 Gbit/s

960 Gbit/s

512 Gbit/s

Access Capacity

64 x 10G GPON

256 x GPON

768 x GE

24 x 10G GPON

96 x GPON

288 x GE

8 x 10G GPON

32 x GPON

96 x GE

Port Type

Upstream ports: 10 GE optical and GE optical/electrical ports

Service ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port

System Performance

Layer 2/Layer 3 line-rate forwarding

Static route, RIP, OSPF, and MPLS

Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD

Maximum split ratio of 1:256

Maximum logical distance between devices: 60 km

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devicesHuawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devicesDHL3-5 business days
Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices Fedex3-5 business days
Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices By Sea10-20 business days

Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devicesNotice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devicesDeliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devicesDeliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices Free Technical Support:

Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


Huawei SmartAX MA5600T IEC Service Subrack OLT/DSLAM fiber-copper access devices Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Huawei product: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
