Specifications
Model Number :
GPBD
Place of Origin :
China
Brand Name :
Huawei
Packaging Details :
Export carton package
Port :
shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

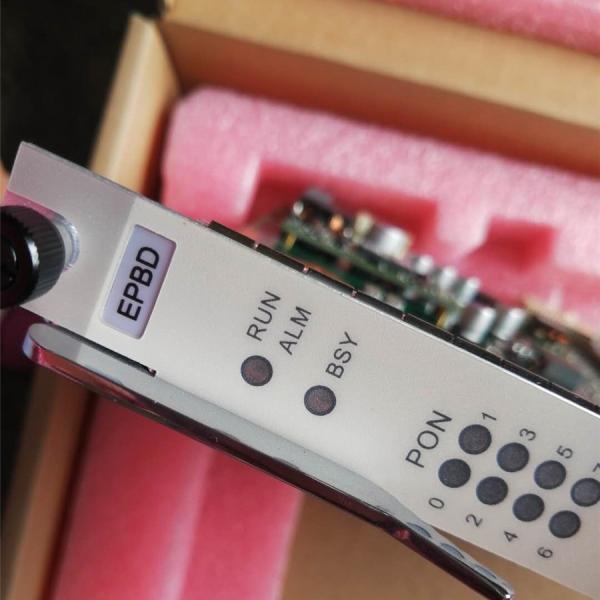

Huawei H809EPBD 8-port EPON OLT Interface Board for MA6500T MA5680T

H802EPBD/H809EPBD Board

The H802EPBD/H809EPBD is an 8-port EPON OLT interface board. It works together with the optical network unit (ONU) to provide EPON access services.

Feature and Specifications

EPON Service Board Comparison

In the table, "Yes" indicates "supported" and "No" indicates "not supported".

Table 1 Specifications lists of EPON service board

Specification

H802EPBD

H809EPBD

Port quantity

8

8

MAX Split ratio

1: 64

1: 64

Optical Module

SFP

SFP

Prevent IP spoofing

Yes

Yes

Prevent MAC address spoofing

Yes

Yes

prevent DOS attacks

Yes

Yes

Optical performance monitor

Yes

Yes

Controlled optical signal transmission of the optical module

No

Yes

Temperature query and high temperature alarm

Yes

Yes

Automatic power shutdown in case of a high temperature

Yes

Yes

1588v2

No

Yes

Parameters

Power Consumption and Maximum Frame Size of Boards

You can query power consumption, maximum frame size, and normal operating temperature of all boards.

lists the power consumption and maximum frame size of boards. "-" indicates N/A.

The operating temperature of all the boards is -40°C to +65°C. The lowest board startup temperature is -25°C.

NOTE:

The power consumption of the board is tested in the following conditions:

Working voltage: -53.5 V DC.

Ambient temperature: 25 °C.

Static power consumption: All ports do not carry any loads. Specifically, users under POTS ports hang up phones, xDSL ports are deactivated, and optical modules are not installed on optical ports

Maximum power consumption: All ports fully carry loads. However, only 25% users under POTS ports concurrently pick up phones and the feeding current is 20 mA.

The board power consumption slightly varies with the power module configured for the board and discreteness of components.

Table 1 Power consumption and maximum frame size of boards

Board

Power Consumption

Maximum Frame Size

H802EPBD

Static: 45.5 W

Maximum: 55 W

1996 bytes

H809EPBD

Static: 23 W

Maximum: 31 W

1996 bytes
