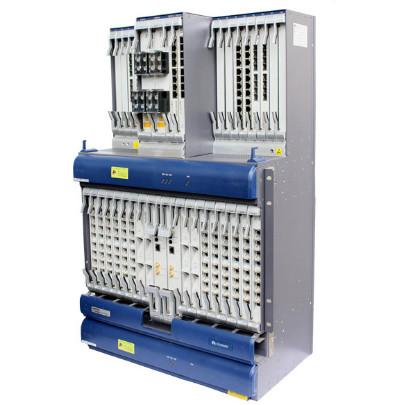

OptiX OSN 7500II TNN1D75E 32-port 75-ohm E1 interface board -- OSN7500II

Functions and Features

The D75E works with the EG8 to receive and process 32 channels of E1 services. It can be configured with a range of services such as E1 ATM services, E1 IMA services, and E1 CES services.

Table 1 provides the functions and features of the D75E.

Table 1 Functions and features of the D75E board
Function and Feature Description
Basic functions Provides 32 E1 ports, and can transmit/receive 32 fractional E1 services or thirty-two 64 kbit/s CES/IMA services.
Interface types Supports 75-ohm E1 electrical interface. The electrical interface uses the DB44 connector.
Interface characteristics Loopback types of the port Supports inloops and outloops.
Auto disabling of port loopback Supported
CES Number of supported CES services 32
Supported emulation mode

CESoPSN

SAToP
Timeslot compression Supports the timeslot compression function. In the case of the CES service in CESoPSN mode, the D75E compresses idle timeslots to improve the bandwidth utilization on the NNI side.
Jitter compensation buffering time 0.375 ms to 16 ms, in increments of 0.125 ms
Packet loading time 0.125 ms to 5 ms, in increments of 0.125 ms
ATM/IMA Number of supported IMA groups 32
Maximum number of E1 links in each IMA group 16
Number of V-UNI ports 8k
Number of V-NNI ports 4k
Cell concatenation Mode:

  • Concatenation

  • Non-concatenation
Maximum number of concatenated cells: 31
ATM OAM Type:

  • CC

  • LB
  • AIS
  • RDI
Quantity: 8k
Service type

CBR

UBR

UBR+

rt-VBR

nrt-VBR
ATM QoS Supported.
Clock function Restores four CES adaptive clock recover (ACR) clocks.

Clocks that are recovered from services over ports 1 and 9 can be added to the clock priority list.

NOTE:

Clock recovery over ports 1 to 16 is independent of clock recovery over ports 17 to 32. That is, clocks that are recovered from services over ports 1 to 16 can be transmitted out of ports 1 to 16 and clocks that are recovered from services over ports 17 to 32 can be transmitted out of ports 17 to 32.
Line code of E1 link HDB3 code
Frame format of E1 link Unframed format, double-framed format, or E1 CRC-4 multiframe format (default value)
Maintenance features
  • Supports the query of the board manufacturer information.
  • Supports the in-service loading of the FPGA.
  • Supports the upgrade of the board software without affecting services.
  • Supports the PRBS function. For details, see Availability.

Technical Specifications of the D75E

The technical specifications of the D75E include the parameters specified for electrical interfaces, mechanical specifications, and power consumption.

Parameters Specified for Interfaces

Table 1 lists the parameters specified for the electrical interfaces of the D75E.

Table 1 Specifications of the ports
Port type Description
E1 electrical interfaces 75 ohm E1 electrical interfaces

Mechanical Specifications

The mechanical specifications of the D75E are as follows:

  • Dimensions (mm): 22.0 (W) x 125.2 (D) x 261.4 (H)
  • Weight (kg): 0.4

Power Consumption

The maximum power consumption of the D75E at room temperature (25°C) is 15 W.
