Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU
Specifications
Model Number :
BSC
Place of Origin :
China
Brand Name :
Huawei
Packaging Details :
Export carton package
Port :
shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU

Contact Us

Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU

Huawei DC Switched Power Distribution Unit

DCDU-12B

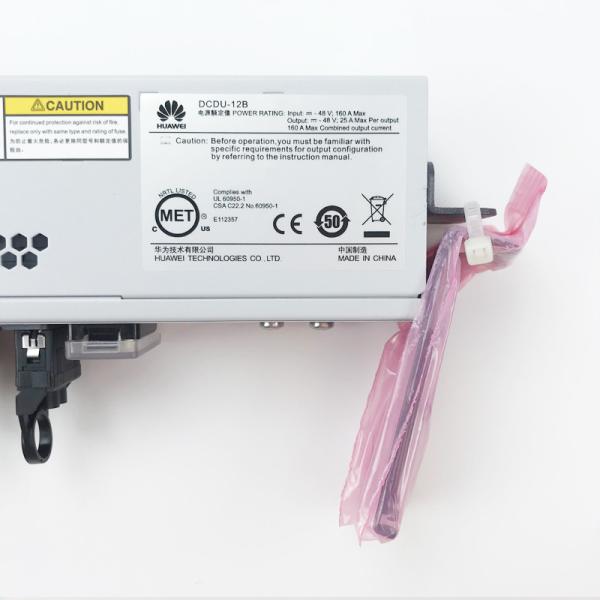

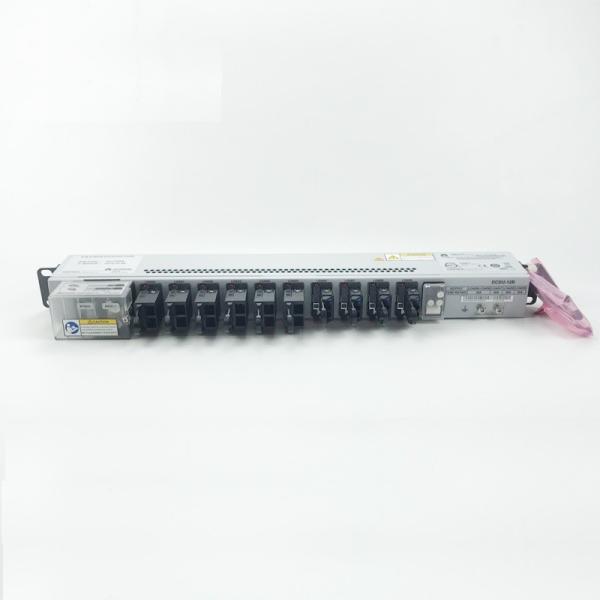

Huawei DCDU-12B DC Power Distribution Unit
Part Number: 02120731
Model: TD1MDCDU12B0

Electrical Specifications
Specification
Input
Input Voltage
-38.4Vdc~-57Vdc; 2 blocks, DC-48V,Max 100A
Input Current(Max)
100A
Rated voltage
-48V
Output
Voltage drop
≤0.5Vdc
Output protection
Circuit breaker
Output voltage
-38.4Vdc~-57Vdc, rated value: -48Vdc
Output channels
9 channels, 6 x 20A and 3 x 12A
Others
Dimension
L*D*H(mm).442 mm *310 mm *42 mm
Weight
3.5Kg
Packing
580 mm *225 mm *120mm, 4.0kg
Environmental Specifications
Operating temperature
-40℃~+65℃
Storage temperature
-40℃~+70℃
Operating humidity
5%~95%(non-condensing)
Altitude
0~3000m (If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)
Warranty

Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU

Huawei PDU DCDU-12B DC power distribution unit Huawei BBU RRU

Company profile

Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
