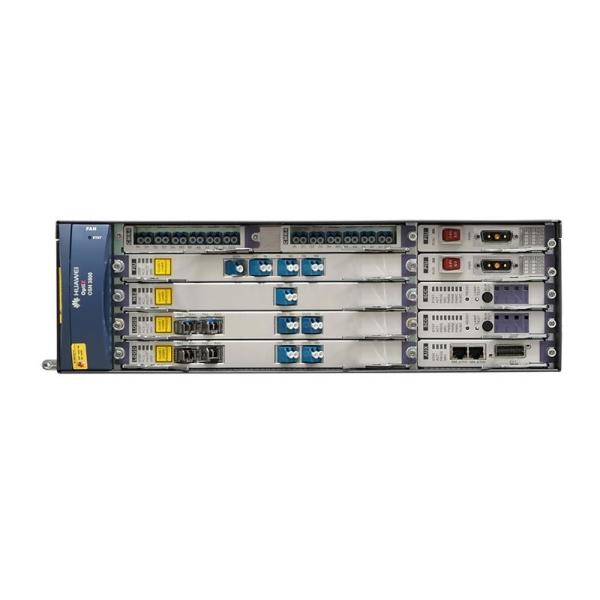

OptiX OSN 1500 SSN1LWX01 arbitrary bit rate wavelength conversion board-- OSN1500
OptiX OSN 1500 SSN1LWX01 arbitrary bit rate wavelength conversion board-- OSN1500
OptiX OSN 1500 SSN1LWX01 arbitrary bit rate wavelength conversion board-- OSN1500
OptiX OSN 1500 SSN1LWX01 arbitrary bit rate wavelength conversion board-- OSN1500
OptiX OSN 1500 SSN1LWX01 arbitrary bit rate wavelength conversion board-- OSN1500
OptiX OSN 1500 SSN1LWX01 arbitrary bit rate wavelength conversion board-- OSN1500
Specifications
Model Number :
SSN1LWX01
Place of Origin :
China
SSN1LWX01 :
Single fed and single receiving
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX OSN 1500 SSN1LWX01 arbitrary bit rate wavelength conversion board-- OSN1500

Functions and Features

The LWX converts a wavelength at an arbitrary rate (10 Mbit/s to 2.7 Gbit/s, NRZ code) on the client side into a standard wavelength defined in ITU-T G.692, and performs the reverse process.

The LWX supports the optical wavelength conversion, 3R function, protection, and loopback function.

Table 1 provides the functions and features of the LWX.

Table 1 Functions and features of the LWX
Function and Feature LWX
Basic functions

Converts a wavelength on the client side into a standard wavelength defined in ITU-T G.692 (DWDM), and performs the reverse process.

Transparently transmits signals.
3R function Provides the 3R function for the signals at a rate ranging from 10 Mbit/s to 2.7 Gbit/s on the client side, restores the clock, and monitors the rate.
Protection schemes Single fed and single receiving Supports the inter-board protection and 1+1 inter-board hot standby protection. The protection switching time is less than 50 ms.
Dual fed and selective receiving Supports the intra-board protection. One board can realize the optical channel protection. The protection switching time is less than 50 ms.
ALS function Supports the ALS function. When the LWX does not receive light, the LWX automatically turns off the corresponding optical transmit module.
Loopback function Supports inloops and outloops at optical interfaces so that faults can be located quickly.
Performance and alarm monitoring Reports various alarms and performance events, which facilitates the maintenance of the equipment.
Central wavelength Supports the standard wavelengths defined in ITU-T Recommendations. The channel spacing is 100 GHz.

Relationship between the feature code of the LWX and the signal receive/transmit scheme

Board Feature Code Signal Receive/Transmit Scheme
SSN1LWX01 01 Single fed and single receiving
SSN1LWX02 02 Dual fed and selective receiving

Technical Specifications of the LWX

The technical specifications of the LWX include the parameters specified for optical interfaces, the safety class of the laser, mechanical specifications and power consumption.

Parameters Specified for Optical Interfaces

Table 1 and Table 2 list the parameters specified for the client-side and WDM-side optical interfaces of the LWX.

Table 1 Parameters specified for the client-side optical interfaces of the LWX
Parameter Value
Nominal bit rate 10 Mbit/s to 2.7 Gbit/s
Line code pattern NRZ
Type of fiber Single-mode LC Single-mode LC Single-mode LC
Transmission distance (km) 15 40 80
Characteristics of the transmitter at point S
Operating wavelength range (nm) 1260 to 1360 1260 to 1360 1500 to 1580
Maximum mean launched power (dBm) 0 +3 +3
Minimum mean launched power (dBm) -5 -2 -2
Minimum extinction ratio (dB) +8.2 +8.2 +8.2
Minimum side mode suppression ratio (dB) 30 30 30
Eye pattern mask Complies with the mask defined in ITU-T G.957. Complies with the mask defined in ITU-T G.957. Complies with the mask defined in ITU-T G.957.
Characteristics of the receiver at point S
Receiver type PIN APD APD
Receiver wavelength range (nm) 1200 to 1600 1200 to 1600 1200 to 1600
Receiver sensitivity (dBm) -18 -27 -28
Minimum overload (dBm) 0 -9 -9
Maximum reflectance (dB) -27 -27 -27
Table 2 Parameters specified for the WDM-side optical interfaces of the LWX
Parameter Value
Channel spacing (GHz) 100
Line code pattern NRZ
Characteristics of the transmitter at point Sn
Transmission distance (km) 640 170 (2 mW) 170 (10 mW) 360
Maximum mean launched power (dBm) +3 +3 +7 +3
Minimum mean launched power (dBm) -2 -2 5 -2
Minimum extinction ratio (dB) +10 +10 +10 +10
Nominal central frequency (THz) 192.10 to 196.00 192.10 to 196.00 192.10 to 196.00 192.10 to 196.00
Central frequency deviation (GHz) ±12.5 ±12.5 ±12.5 ±12.5
Maximum -20 dB spectral width (nm) 0.2 0.4 0.4 0.4
Minimum side mode suppression ratio (dB) 35 35 35 35
Dispersion compensation (ps/nm) 12800 3400 3400 7200
Eye pattern mask Complies with the mask defined in ITU-T G.957. Complies with the mask defined in ITU-T G.957. Complies with the mask defined in ITU-T G.957. Complies with the mask defined in ITU-T G.957.
Characteristics of the receiver at point Rn
Receiver type APD PIN
Receiver wavelength range (nm) 1200 to 1600 1200 to 1600
Receiver sensitivity (dBm) -28 -18
Minimum overload (dBm) -9 0
Maximum reflectance (dB) -27 -27

Laser Safety Class

The safety class of the laser on the board is Class 1. The maximum launched optical power of the optical interfaces is less than 10 dBm (10 mW).

Mechanical Specifications

The mechanical specifications of the LWX are as follows:

  • Dimensions (mm): 25.4 (W) x 235.2 (D) x 261.4 (H)
  • Weight (kg): 1.1

Power Consumption

The maximum power consumption of the LWX at room temperature (25°C) is 30 W.
