juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License
Specifications
With Modem Function :
Yes
Standards And Protocols :
Wi-Fi 802.11g
Encryption Type :
WPA2-PSK
Products Status :
New, Stock
Type :
routers
Application :
ENTERPRISE
Function :
Router, router
LAN Ports :
8
WAN Ports :
2
Certification :
CE FCC RoHS
Brand Name :
Huawei
Place of Origin :
China
Color :
Black
Packaging Details :
Export carton package
Port :
ShenZhen or HongKong
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

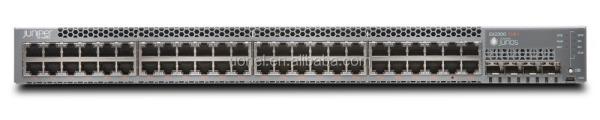

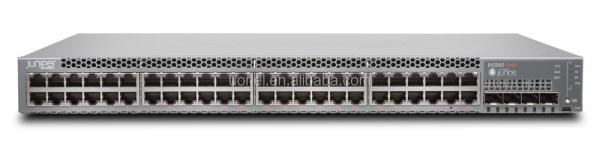

EX2300 Overview

The EX2300 Ethernet Switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1 U footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.

Two EX2300 switch models are available, offering either 24 or 48 10/100/1000BASE-T ports in a single platform. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports are provided to support connections to higher layer devices.

EX2300 switches support Juniper’s Virtual Chassis technology, enabling up to four of the platforms to be interconnected and managed as a single, logical device. The switches can also serve as satellite devices in a Junos Fusion Enterprise deployment, which allows large numbers of access switches to be merged into a logical management platform.

Form factor
Fixed platform
Virtual Chassis configuration consisting of up to four switches
Junos Fusion Enterprise Satellite device
Access ports
N/A
Dimensions (W x H x D)
EX2300-24T/24P/48T:
17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)
1 rack unit

EX2300-48P: 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm)
1 rack unit
Backplane speed
80 Gbps
Data rate
EX2300-24P/24T: 128 Gbps
EX2300-48T/48P: 176 Gbps
Throughput
EX2300-24P/24T: 95 Mpps (wire speed)
EX2300-48T/48P: 130 Mpps (wire speed)
10/100/1000BASE-T port densities
N/A
10GBASE-X port densities
N/A
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities
N/A
100GBASE C form-factor pluggable transceiver (CFP) port densities
N/A
Resiliency
Integrated power supply and fans
Operating system
Junos OS
Traffic monitoring
sFlow
Quality-of-service (QoS) queues/port
8
MAC addresses
16,000
Jumbo frames
9216 bytes
IPv4 unicast/multicast routes
4096 / 2048
IPv6 unicast/multicast routes
2048 / 1024
Number of VLANs
4093
ARP entries
1500
Innovative Design

Innovative, cost-effective switch design reduces cost and complexity, while unified management and automation tools consolidate system monitoring.

Virtual Chassis

With Virtual Chassis technology, up to four interconnected EX2300 switches operate as a single logical device, reducing operational expenses and simplifying management.

Eight QoS Queues

Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.

Always-On Reliability

Based on a field-proven Juniper architecture and the Junos OS, EX Series switches deliver always-on reliability for every application.

Centralized Management with Junos Fusion

When deployed as satellite devices in a Junos Fusion Enterprise environment, large numbers of EX2300 switches can be managed from a single interface.

High Port Densities and Wire-Speed Performance

High 1GbE and 10GbE port densities and wire-speed performance provide flexibility when creating network topologies.

juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License

juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License

Packaging & Shipping

juniper EX2300 Compact, 100% New sealed original Juniper module EX2300-48T-VC EX2300 48-port non-PoE+ w/ VC License

Our Services

100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Company Information

Uonel is one of the biggest &juniper Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.

Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.

Any request for juniper or any questions for cisco specifications ,please contact me .
skype:18814126177
whechat:18814126177
QQ:1018415071
E-mail:miki at uonel.com
