Specifications
Products Status :
Stock
Type :
routers
Application :
ENTERPRISE
Function :
Router, router
LAN Ports :
8
WAN Ports :
2
Certification :
CE FCC RoHS
Brand Name :
Huawei
Model Number :
QFX5100 and QFX5110
Place of Origin :
China
Color :
Black
Packaging Details :
Export carton package
Port :
ShenZhen or HongKong
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

QFX5100 Overview

The QFX5100 line of scalable Layer 2/3 switches—including the 10/40GbE QFX5100 and the 10/40/100GbE QFX5110—is optimized for application delivery and contains a powerful feature set for virtualized data centers.

The QFX5100 and QFX5110 data center switching platforms provide universal building blocks for multiple fabric architectures. They work with the Juniper mixed 1/10/40/100GbE Virtual Chassis, Virtual Chassis Fabric, and Junos Fusion architectures. The QFX5100 and QFX5110 switches also support open architectures, such as spine and leaf, Layer 3, and Open Clos IP fabrics.

QFX5100 and QFX5110 switches enable high-availability data center operations by allowing unified in-service software upgrades (ISSU). They also support virtualized network environments, including Juniper Contrail and VMware NSX Layer 2 gateway services.

Seven switch models are available:

  • QFX5110-48S, a 10GbE switch with 48 SFP+ ports and four QSFP28 ports that can be configured as 40GbE or 100GbE ports.
  • QFX5110-32Q, a 40GbE switch offering 32 QSFP+ ports or 20 QSFP+ ports with four QSFP28 ports.
  • QFX5100-48S, a 10GbE switch that offers 48 dual-mode, small form-factor pluggable (SFP and SFP+) transceiver ports and six quad small form-factor pluggable plus (QSFP+) 40GbE ports.
  • QFX5100-48T, a 10GbE switch with 48 tri-speed (100 Mbps/1GbE/10GbE) RJ-45 ports and six QSFP+ ports.

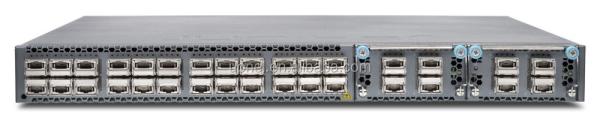

  • QFX5100-24Q, a 40GbE switch that supports up to 32 QSFP+ ports.
  • QFX5100-24Q-AA, a high-performance 40GbE switch that supports an FPGA-based 4x40GbE expansion module with customizable logic for accelerating compute-intensive, latency-sensitive, and mission-critical application processing.
  • QFX5100-96S, a 10GbE switch that provides 96 dual-mode SFP and SFP+ ports and eight quad QSFP+ 40GbE ports.

For added flexibility, the QSFP+ ports on both the QFX5100 and QFX5110 switch models can serve as 4x10GbE ports using QSFP+ to SFP+ direct-attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics. Additionally, the QSFP28 ports on the QFX5110 can be configured as 4x10GbE ports using breakout cables, providing additional configuration flexibility.

In converged server-edge access environments, the QFX5100 switches can be deployed as standards-based Fibre Channel-over-Ethernet (FCoE) transit switches, protecting investments in existing data center aggregation and Fibre Channel storage-area network (SAN) infrastructures.

Dimensions (W x H x D)
QFX5100-48S, -24Q, -24Q-AA: 17.4 x 1.72 x 20.5 in (44.1 x 4.4 x 52.0 cm); 1 U
QFX5100-48T: 17.4 x 1.72 x 21.5 in (44.1 x 4.4 x 54.6 cm); 1 U
QFX5100-96S: 17.4 x 3.46 x 22.4 in (44.1 x 8.8 x 57.0 cm); 2 U
QFX5110-48S and -32Q: 17.36 x 1.72 x 20.48 in (44.09 x 4.37 x 52.02 cm); 1 U
Power options
100 to 240 VAC (single phase) at 50/60 Hz or –36 to –72 VDC
System throughput
QFX5100-48S: 1.44 Tbps
QFX5100-48T: 1.44 Tbps
QFX5100-24Q: 2.56 Tbps
QFX5100-24Q-AA: 2.56 Tbps
QFX5100-96S: 2.56 Tbps
QFX5110-48S: 1.76 Tbps
QFX5110-32Q: 2.56 Tbps
Form factor
Fixed-configuration platform
Data rate
QFX5100-48S: 1.08 Bpps
QFX5100-48T: 1.08 Bpps
QFX5100-24Q: 1.44 Bpps
QFX5100-24Q-AA: 1.44 Bpps
QFX5100-96S: 1.44 Bpps
QFX5110-48S: 1.32 Bpps
QFX5110-32Q: 1.44 Bpps
Port densities
QFX5100-48S: 48 1GbE/10GbE; 6 40GbE
QFX5100-48T: 48 tri-speed (100 Mbps/1GbE/10GbE); 6 40GbE
QFX5100-24Q: 24 40GbE; 2 expansion slots for 4 x 40
QFX5100-24Q-AA: 24 40GbE; 2 expansion slots for 4 x 40 or 1 double-wide slot for FPGA-based module
QFX5100-96S: 96 1GbE/10GbE; 8 40GbE
QFX5110-48S: 48 1GbE; 48 10GbE; 4 40GbE; 4 100GbE
QFX5110-32Q: 104 10GbE (with breakout cable); 32 40GbE; 20 40GbE with 4 100GbE
Maximum 10GbE density
QFX5100-48S: 72 ports (48 10GbE SFP or SFP+ ports plus 24 10GbE ports using QSFP+ to SFP+ DAC or QSFP+ to SFP+ fiber splitter cables and optics)
QFX5100-96S: 104 ports (96 10 GbE SFP or SFP+ ports plus 8 10GbE ports using 2 QSFP+ to SFP+ DAC or QSFP+ to SFP+ fiber splitter cables and optics)
QFX5110-48S: 64 ports with breakout cable
QFX5110-32Q: 104 ports with breakout cable
Maximum 25GbE/50GbE densities
N/A
Maximum 40GbE density
QFX5100-48S: 6 ports
QFX5100-48T: 6 ports
QFX5100-24Q: 32 ports (with hot-swappable expansion modules)
QFX5100-24Q-AA: 32 ports (with hot-swappable expansion modules)
QFX5100-96S: 8 ports
QFX5110-48S: 4 ports
QFX5110-32Q: 32 ports
Maximum 100GbE density
QFX5110-48S/-32Q: 4
Resiliency
Dual hot-swappable AC or DC power supplies for 1+1 redundancy.
Hot-swappable fan trays.
Power consumption
QFX5100-48S: 150W
QFX5100-48T: 335W
QFX5100-24Q: 161W
QFX5100-24Q-AA: 175W (QFX-PFA-4Q: 120W)
QFX5100-96S: 263W
QFX5110-48S: 300W; idle load: 200W
QFX5110-32Q: 300W; idle load: 200W
Overlay services
Contrail Layer 3 gateway (roadmap)
VMware NSX Layer 2 gateway (roadmap)
Traffic monitoring
Port-based
LAG port
VLAN-based
Access control list (ACL)-based
Mirror to local and remote destinations (Layer 2 over VLAN)
QoS queues/port
12 (8 unicast; 4 multicast)
MAC addresses
288,000
Jumbo frames
9216 bytes
IPv4 hosts
144,000
IPv4 unicast routes
208,000
IPv4 multicast routes
104,000
IPv6 hosts
72,000
IPv6 unicast routes
104,000
IPv6 multicast routes
52,000
Number of VLANs
4,096
ARP entries
48,000

High-Performance Throughput

Throughput of up to 2.56 Tbps sustains wire-speed switching with low latency and jitter, as well as full Layer 2 and Layer 3 performance.

Redundant Power and Cooling

Dual hot-swappable AC or DC power supplies provide 1+1 redundancy, while five hot-swappable fan trays maintain high system availability.

Separate Control and Data Planes

Keeping the control and data planes independent maximizes system availability and throughput.

Server and Network Virtualization

A software-programmable infrastructure lets you make the most of your network resources and quickly adapt to changing needs.

Unified In-Service Software Upgrades (ISSU)

Network administrators make software upgrades in minutes with no downtime, which means no lost user productivity.
