Description

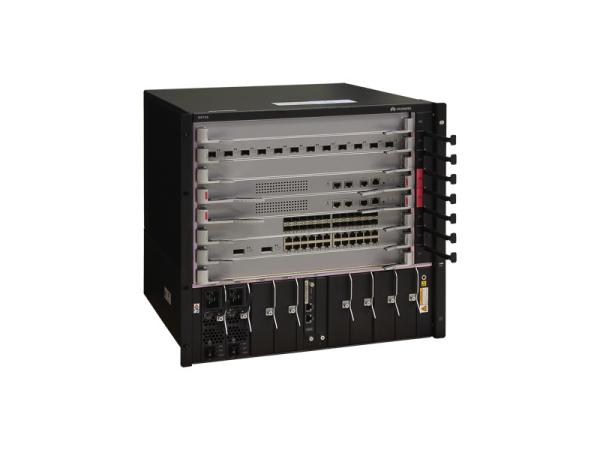

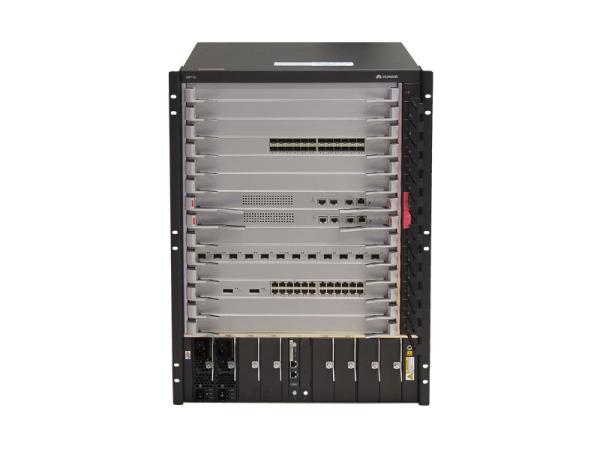

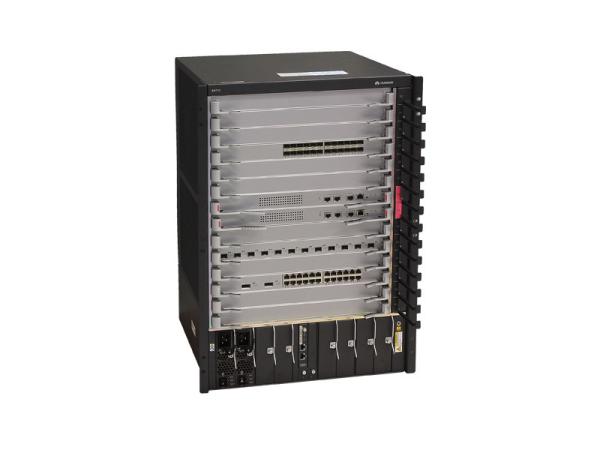

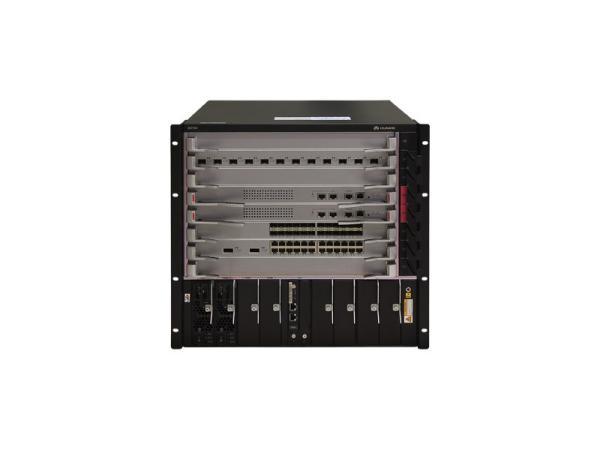

S9700 Terabit Switches for data centers and large-scale enterprise campus networks

The S9700 series terabit routing switches are high-end switches designed for next-generation campus networks and data centers to implement service aggregation.

Based on Versatile Routing Platform (VRP), the S9700 provide high L2/L3 switching capabilities and integrate diversified services such as MPLS VPN, hardware IPv6, desktop cloud, video conferencing, and wireless access. In addition, the S9700 also provide a variety of reliability technologies including In-Service Software Upgrade (ISSU), non-stop forwarding, hardware OAM/BFD, and ring network protection. These technologies improve customers’ network operation efficiency, maximize the device running time, and reduce customers’ Total Cost of Ownership (TCO).

An S9700 switch can be upgraded to an agile switch when it is equipped with X2S/X2E/X2H/X1E cards, the line cards with ’s first Ethernet Network Processor (ENP). Agile switches allow customers to innovate their networks.

The S9700 series is available in three models: S9703, S9706, and S9712.

S9700 Terabit Switches for data centers and large-scale enterprise campus networks

Product specifications

Item S9703 S9706 S9712
Switching Capacity

2.88/5.76 Tbit/s

6.72/14.72 Tbit/s

8.64/18.56 Tbit/s
Packet Forwarding Rates 2,160 Mpps 2,880/5,040 Mpps 3,840/6,480 Mpps
Service Slots 3 6 12
Dimensions (W x D x H) 442 mm × 476 mm × 175 mm 442 mm × 476 mm × 442 mm 442 mm × 476 mm × 664 mm
Chassis Weight (empty) <15 kg <30 kg <45 kg
Operating Voltage

DC:–38.4V to –72V

AC:90V to 290V
Equipment Power Supply Capability

2,200W

4,400W

6,600W
S9700 basic configuration
LE2BN66ED000 N66E DC Assembly Rack (Eight 60A Outputs, maximum 2,200W per output, 600 mm x 600 mm x 2,200 mm)
LE0BN66EAC N66E AC Assembly Rack (Eight 10A Outputs, maximum 1,600W per output, 600 mm x 600 mm x 2,200 mm)
LE2BN66EA000 N66E AC Assembly Rack (Four 16A Outputs, maximum 2,500W per output, 600 mm x 600 mm x 2,200 mm)
EH1BS9703E00 S9703 assembly chassis
EH1BS9706E00 S9706 assembly chassis
EH1BS9712E00 S9712 assembly chassis
EH1BS9703E01 S9703 assembly chassis-sustain FCC
EH1BS9706E01 S9706 assembly chassis-sustain FCC
EH1BS9712E01 S9712 assembly chassis-sustain FCC
EH1M00FBX000 Wide Voltage 74 Fan Box
Monitoring Unit (Sustain FCC)
EH1D200CMU00 Centralized monitoring unit
MPU
EH1D2MCUAC00 S9703 MCUA-clock (Sustain FCC)
EH1D2SRUDC00 S9706/S9712 SRUD-clock
EH1D2SRUC000 S9706/S9712, Main Control Unit C, Option clock
