S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW
S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW
Specifications
Products Status :
Stock
Ports :
≥ 48
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Certification :
CE FCC RoHS
Switch Capacity :
128Gbps
Model Number :
S1720-10GW-2P-E
Place of Origin :
China
Packaging Details :
Export carton package
Port :
Shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW

S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW

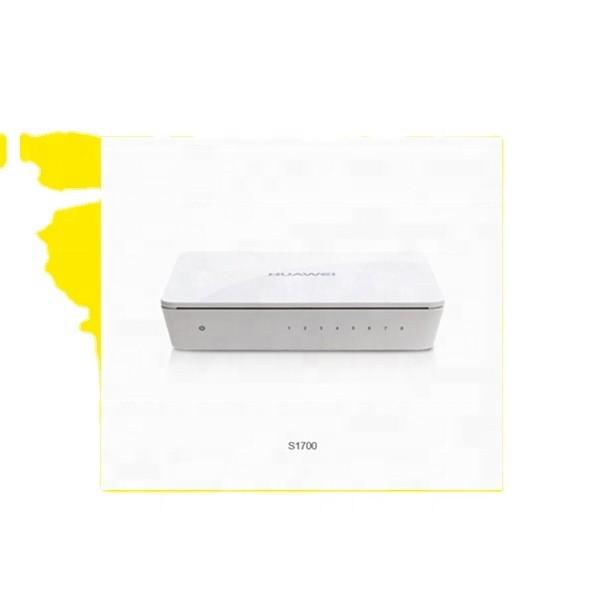

Huawei S1700 series switches are ideal for small to mid-sized businesses, Internet cafes, hotels, schools, and others. They are easy to install and maintain and provide rich services, helping customers build secure, reliable, and high-performance networks.

Depending on management types, S1700 series switches are classified into unmanaged switches, web-managed switches, and fully-managed switches.

Unmanaged switches are plug-and-play and do not require installation of any software. They have no configuration options and do not need subsequent management. Web-managed switches can be managed and maintained through the web browser. They are easy to operate and have user-friendly Graphic User Interfaces (GUIs).Fully-managed switches support various management and maintenance methods, such as web, SNMP, command line interface (supported by S1720GW-E, S1720GWR-E, and S1720X-E). They have user-friendly GUIs.
Product model S1720-10GW-2P-E
S1720-10GW-PWR-2P-E		 S1720-28GWR-4P-E
S1720-28GWR-PWR-4P-E
S1720-28GWR-PWR-4TP-E
S1720-28GWR-4X-E
S1720-28GWR-PWR-4X-E
S1720-52GWR-4P-E
S1720-52GWR-PWR-4P-E
S1720-52GWR-4X-E
S1720-52GWR-PWR-4X-E		 S1720X-16XWR-E
S1720X-32XWR-E
Device
Management		 SNMP
Web system network management (HTTPS)
DHCP client
User password protection
One-key restoration
CLI configuration (S1720GWE,S1720GWR-E,S1720X-XWR-E series)
Switching Capacity 68 Gbps S1720-28GWR-P/TP series: 68 Gbps
S1720-28GWR-X series: 168 Gbps
S1720-52GWR-P series: 336 Gbps
S1720-52GWR-X: 336 Gbps		 680 Gbps
Forwarding Performance 15 Mpps S1720-28GWR-P/TP series: 42 Mpps
S1720-28GWR-X series: 96 Mpps
S1720-52GWR-P series: 78 Mpps
S1720-52GWR-X series: 132 Mpps		 S1720X-16XWR-E: 240 Mpps
S1720X-32XWR-E: 252 Mpps
Fixed Ports Downlink: 8 x 10/100/1000Base-T electrical ports
Uplink: 2 x 1000Base-X optical ports		 S1720-28GWR-P series
Downlink: 24 x 10/100/1000Base-T electrical ports
Uplink: 4 x 1000Base-X optical ports
S1720-28GWR-TP series
Downlink: 24 x 10/100/1000Base-T electrical ports
Uplink: 4 x 1000Base-X optical ports, 2 of which are 10/100/1000Base-T combo ports
S1720-28GWR-X series
Downlink: 24 x 10/100/1000Base-T electrical ports
Uplink: 4 x 10GBase-X optical ports
S1720-52GWR-P series
Downlink: 48 x 10/100/1000Base-T electrical ports
Uplink: 4 x 1000Base-X optical ports
S1720-52GWR-X series
Downlink: 48 x 10/100/1000Base-T electrical ports
Uplink: 4 x 10GBase-X optical ports		 S1720X-32XWR-E: 32 x 10GBase-X optical ports
Note: These ports can be used for both upstream and downstream transmission.
VLAN Features 4K VLANs
Access port
Trunk port
Hybrid port
Management VLAN
Voice VLAN
IP Routing IPv4 and IPv6 static routing
RIP,RIPng,OSPF (S1720-E series)
Device
Maintenance		 Remote Network Monitoring (RMON)
System log
Ping and traceroute
Virtual Cable Test (VCT)
Link Layer Discovery Protocol (LLDP)
Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options Estimated Delivery Time
S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GWDHL 3-5 business days
S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW Fedex 3-5 business days
S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW By Sea 10-20 business days

S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GWNotice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GWDeliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GWDeliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW Free Technical Support:

Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


S1700 Series Enterprise Switches S1720-10GW-2P-E S1720-10GW-PWR-2P-E S1720-10GW-2P S1720-10GW-PWR-2P S1720-10GW Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Huawei product: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
