S5730-SI Series for Huawei Switches S5730-48C-SI-AC
S5730-SI Series for Huawei Switches S5730-48C-SI-AC
Specifications
Products Status :
Stock
Ports :
24
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Certification :
CE FCC RoHS
Switch Capacity :
128Gbps
Brand Name :
Huawei
Model Number :
S5730-48C-SI-AC
Place of Origin :
China
Product Name :
S5730-48C-SI-AC
Device Type :
S5730-48C-SI-AC
Type :
S5730-48C-SI-AC
Packaging Details :
Export carton package
Port :
Shenzhen
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
MOQ :
Negotiable
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

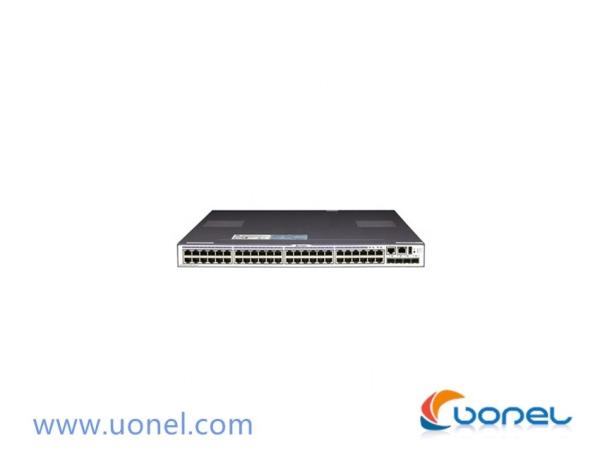

S5730-SI Series for Huawei Switches S5730-48C-SI-AC

S5730-SI Series for Huawei Switches S5730-48C-SI-AC S5730-48C-SI S5730-48C

S5730-SI Series Standard Gigabit Ethernet Switches

The S5730-SI series switches (S5730-SI for short) are next-generation standard gigabit Layer 3 Ethernet switches. They can be used as an access or aggregation switch on a campus network or as an access switch in a data center.

The S5730-SI series switches provide flexible full gigabit access and cost-effective fixed GE/10 GE uplink ports. Meanwhile, the S5730-SI can provide 4 x 40 GE uplink ports with an interface card.

Specifications¹

Product modelS5730-48C-SI-ACS5730-48C-PWR-SI-ACS5730-68C-SI-ACS5730-68C-PWR-SI-AC
S5730-68C-PWR-SI
Switching Capacity680 Gbit/s680 Gbit/s680 Gbit/s680 Gbit/s
Forwarding Performance240 Mpps240 Mpps240 Mpps240 Mpps
Fixed Ports24 x 10/100/1,000 Base-T, 8 x 10 Gigabit SFP+24 x 10/100/1,000 Base-T, 8 x 10 Gigabit SFP+48 x 10/100/1,000 Base-T, 4 x 10 Gigabit SFP+48 x 10/100/1,000 Base-T, 4 x 10 Gigabit SFP+
Extended SlotsOne extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card
MAC Address Table32K
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features4K VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP RoutingStatic route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
InteroperabilityVLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)

For detailed interoperability certifications and test reports, click HERE.
Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
S5730-SI Series for Huawei Switches S5730-48C-SI-AC S5730-SI Series for Huawei Switches S5730-48C-SI-ACS5730-SI Series for Huawei Switches S5730-48C-SI-ACDHL3-5 business days
S5730-SI Series for Huawei Switches S5730-48C-SI-AC Fedex3-5 business days
S5730-SI Series for Huawei Switches S5730-48C-SI-AC By Sea10-20 business days

S5730-SI Series for Huawei Switches S5730-48C-SI-ACNotice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

S5730-SI Series for Huawei Switches S5730-48C-SI-ACDeliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

S5730-SI Series for Huawei Switches S5730-48C-SI-ACDeliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

S5730-SI Series for Huawei Switches S5730-48C-SI-AC 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


S5730-SI Series for Huawei Switches S5730-48C-SI-AC 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


S5730-SI Series for Huawei Switches S5730-48C-SI-AC Free Technical Support:

Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


S5730-SI Series for Huawei Switches S5730-48C-SI-AC 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


S5730-SI Series for Huawei Switches S5730-48C-SI-AC Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Huawei product: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
