-18~-20°C Low Temperature Walk In Freezer For Fish, Meat, Poultry

Introduction

Low-temperature walk in freezer refers to cold storage whose temperature is lower than -18 degrees. Low-temperature cold storage is generally used to store high-value goods that need to be stored for a long time. Due to the large temperature difference between the temperature in the low-temperature cold storage and the external environment (in hot summer, the temperature difference between inside and outside the cold storage will reach more than 70 degrees), generally low-temperature cold storage uses polyurethane cold storage insulation boards with a thickness greater than 150MM.

According to the different forms of cold storage evaporators, low-temperature cold storage is divided into low-temperature cold storage in the form of air coolers and low-temperature cold storage in the form of aluminum row. The low-temperature storage in the form of a cold storage air cooler has the advantages of fast cooling speed and convenient defrosting, and is generally suitable for occasions that require high cooling speed. The aluminum row low-temperature cold storage has the advantages of good heat preservation effect and low energy consumption, so it is widely used in large-scale low-temperature cold storage. Care should be taken in the design of the defrost control system when coil evaporators are used.

Due to the relatively large cooling consumption of low-temperature cold storage, piston cold storage compressors are mostly used in small low-temperature cold storage, while semi-hermetic screw cold storage compressors are used in large cold storage.

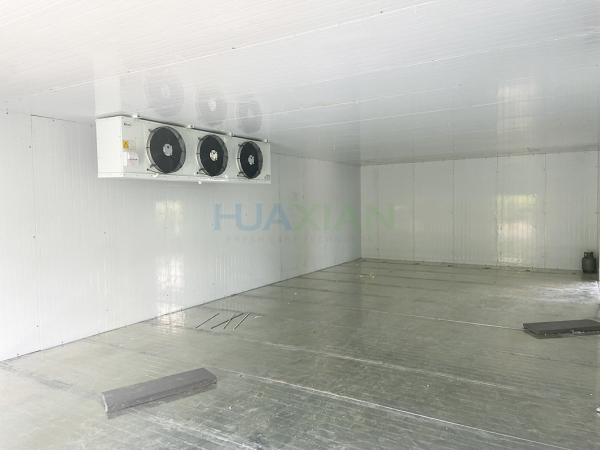

-18~-20­°C Walk In Freezer Picture

Components for Reference

The food-grade freezer room is mainly composed of color plate steel storage boards, German compressors, Denmark refrigeration accessories, fans with good heat exchange effects, PLC control electric panels, and precise temperature controllers.

	Panels a.Sandwich type pu panel b.Two sides are color plate steel sheet c.Middle foaming polyurethane (density 40~42kg/m3)		Door a.Manual hinge door b.With emergency open and c.luminescent switch d.Safe when people is locked inside the room
	Compressor Condenser Unit a.Box type, can be placed outdoor b.Germany compressor c.Denmark refrigeration parts d.Low noise + long service life		Evaporator a.Fast cooling speed b.Low consumption c.Electricity or water defrosting
	Control Panel a.Stainless steel case b.PLC control c.Korea or France electric parts d.Automatic operation, automatic frost, alarm		Branded Components a.Expansion valve b.solenoid valve c.Pressure controller d.filter Etc.

Applications

Cold storage has always been an important part of the logistics industry. Cold storage is mainly used for constant temperature and humidity storage of food, dairy products, meat, aquatic products, poultry, fruits and vegetables, beverages, flowers, green plants, tea, medicines, chemical raw materials, electronic instruments, tobacco, alcoholic beverages and other semi-finished and finished products.

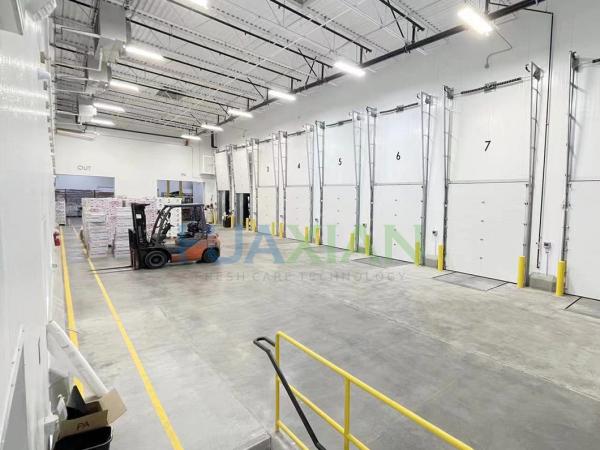

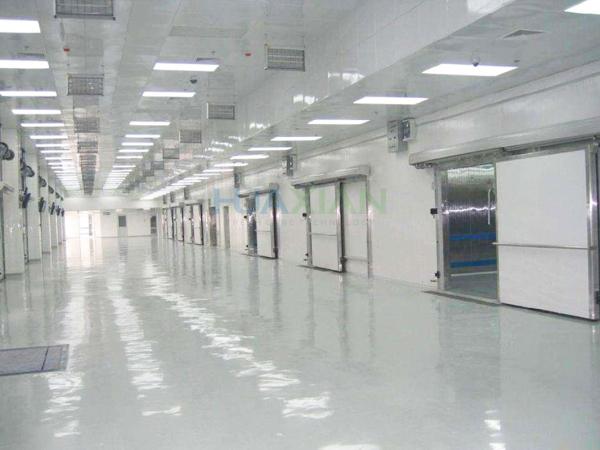

Customer's Usage Case

Our Service

• Project design
• Drawing
• Manufacturing
• On site supervise
• Clients training
• After sales services.

After-sales Services

• 24/7 consults
• 24~72 hours to solve problem
• 1 year warranty
• Life-long maintenance
• Installation: installation and operation manual, online training.

FAQ

1.How can I get quotation?

For professional and suitable quotation, we need to know more information from the end user.

• Products for storage:
• Storage capacity (ton):
• External or internal room size(m or feet):
• Room temperature:
• Daily input capacity (ton):
• Power supply (Voltage/Hz/Phase):
• Installation area/country:
• Does the product finish precooling process before storage?

2.If the products don't do the precooling process, can we put the products into cold storage room or walk in freezer?

• Yes, some customers cannot use pre-cooling equipment due to economic or space problems and directly use cold storage equipment. However, it is recommended that the daily input volume should not exceed 10% of the design cold storage volume.

3.How to install the cold storage room / walk in freezer?

• Huaxian offers operation manual, online installation support service; Customer can find local team to install the cold room / freezer, or Huaxian sends technician to customer's site.

4.What is the payment term?

• By T/T, 30% deposit, the balance will be paid before shipment.
