Low Attenuation RG6 Coaxial Cable Tinned Copper Conductor Physical Foam PE Insulation
Low Attenuation RG6 Coaxial Cable Tinned Copper Conductor Physical Foam PE Insulation
Specifications
Brand Name :
HUAXIN/ OEM
Model Number :
Coaxial Cable RG6
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
CHINA
MOQ :
2000M
Price :
$0.3-$0.7
Payment Terms :
L/C,T/T
Supply Ability :
2000KM PER DAY
Delivery Time :
5-30Work Days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation.
Description

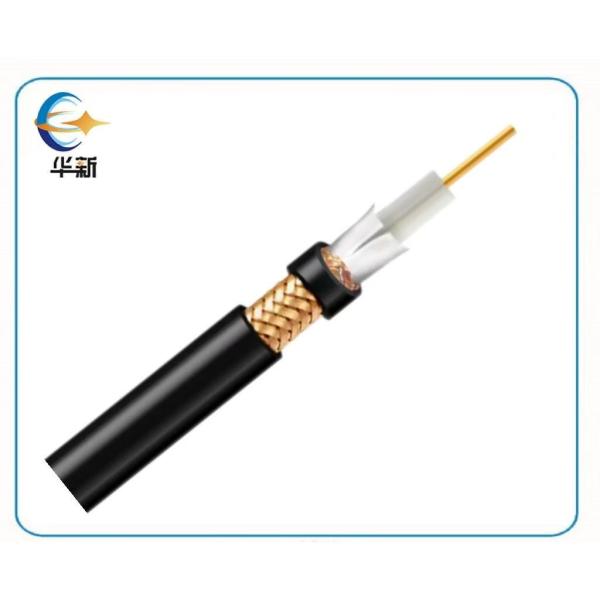

RG6 Coaxial Cable Low Attenuation Coaxial Cable Tinned Copper Conductor Physical Foam PE Insulation

RG6 is a 75 ohm impedance high performance coaxial cable designed for high frequency signal transmission.

Inner conductor Copper Clad Steel (CCS) Φ1.02 mm
Insulation Foamed PE Φ4.57 ±0.20 mm
Taping Shielding (Shield 1) Aluminum-plastic composite polyester tape
Shielding Coverage 100%
Outer conductor (Shield 2) Aluminum wire 96 x 0.12 mm
Shielding Coverage 82%
Sheath PVC / LSZH Φ6.91 mm

Electrical and Physical Properties

Characteristic impedance 75±5 Ohm
Nominal capacitance 54 pF/m
Propagation speed 83%
Insulation resistance >5000 Mohm.Km
Inner conductor resistance 21.7 Ohm/Km
Outer conductor resistance 24.1 Ohm/Km
Operating temperature range -30 °C - +70 °C
Cable weight 45 Kg/Km

Attenuation Index

Frequency (MHZ) Attenuation (DB/100 M) Attenuation (DB/100IFT)
50 5.0 1.5
100 6.7 2.0
200 9.5 2.9
400 14.1 4.2
700 19.9 6.0
900 23.2 7.0
1000 24.8 7.5
1350 29.9 9.0
1750 35.1 10.5
2150 37.9 11.4
2500 39.0 11.7

Company Profile

Low Attenuation RG6 Coaxial Cable Tinned Copper Conductor Physical Foam PE Insulation

Certification

Low Attenuation RG6 Coaxial Cable Tinned Copper Conductor Physical Foam PE Insulation

Exhibition

Low Attenuation RG6 Coaxial Cable Tinned Copper Conductor Physical Foam PE Insulation

Packaging and Transportation

Low Attenuation RG6 Coaxial Cable Tinned Copper Conductor Physical Foam PE Insulation

FAQ

  • Do you accept customized packaging/labels?

We can provide OEM packaging (such as customer LOGO box label), but need to confirm the design in advance.

  • Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

  • Can you provide samples?

We can provide free samples, but the shipping cost is borne by the customer.

  • Is the quality of your fiber optic cable products guaranteed?

All our fiber optic cable products are ISO 9001 certified.

  • How do I make a payment?

Support T/T (Telegraphic Transfer), L/C (Letter of Credit), 30% deposit, 70% final payment before shipment.
