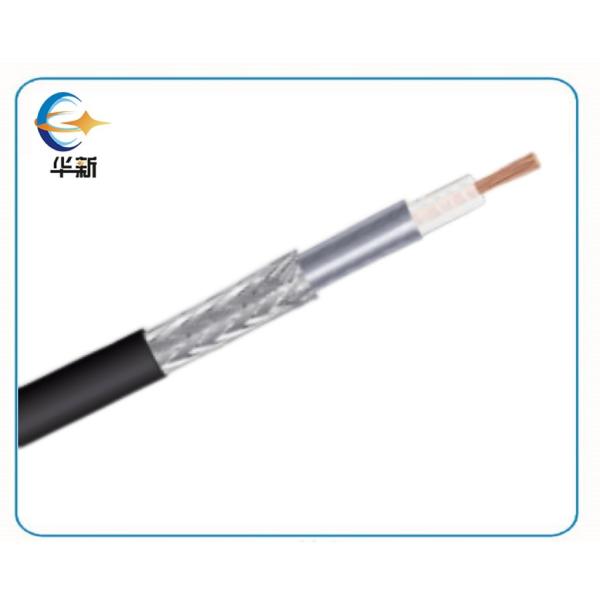

Cable Rg 174 U 50 Ohm Coaxial Cable 2.8mm PVC/LSZH High Frequency Short Distance Signal Transmission
Cable Rg 174 U 50 Ohm Coaxial Cable 2.8mm PVC/LSZH High Frequency Short Distance Signal Transmission
Specifications
Brand Name :
HUAXIN/ OEM
Model Number :
Coaxial Cable RG174UR
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
CHINA
MOQ :
2000M
Price :
$0.3-$0.8
Payment Terms :
L/C,T/T
Supply Ability :
2000KM PER DAY
Delivery Time :
5-30Work Days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation.
Description

RG174 Coaxial Cable Ultrafine 50 Ohm PVC/LSZH High Frequency Short Distance Signal Transmission

Coaxial cable RG174 is an ultra-fine 50 ohm coaxial cable with a diameter of only about 2.8mm, providing excellent flexibility and space adaptability. Designed for high-frequency short-distance signal transmission, it is widely used in test instruments, RF connections and compact space wiring scenarios.

Cable Rg 174 U 50 Ohm Coaxial Cable 2.8mm PVC/LSZH High Frequency Short Distance Signal Transmission

Inner conductor Bare copper 7 x 0.16 mm
Insulation Low Density PE Φ1.50 ± 0.08 mm
Outer conductor (shield) Bare copper 64 x 0.10 mm
Shield coverage 88%
Sheath PVC / LSZH Φ2.80 ± 0.13 mm

Electrical and Physical Properties

Characteristic impedance 50±3 Ohm
Nominal capacitance 100 pF/m
Propagation speed 66%
Insulation resistance >2000 Mohm.Km
Inner conductor resistance 122 Ohm/Km
Outer conductor resistance 39 Ohm/Km
Operating temperature range -30 °C - +70 °C
Copper weight 6.1 Kg/Km
Cable weight (approx.) 12.7Kg/Km
Shielding effectiveness >50 dB

Attenuation Index

Frequency (MHZ) Attenuation (DB/100 M) Attenuation (DB/100IFT)
50 17.7 5.40
100 26.0 7.93
200 38.5 11.74
400 55.3 16.86
500 63.6 19.39
600 69.2 21.10
860 81.9 24.97
100 88.3 26.92

Company Profile

Cable Rg 174 U 50 Ohm Coaxial Cable 2.8mm PVC/LSZH High Frequency Short Distance Signal Transmission

Certification

Cable Rg 174 U 50 Ohm Coaxial Cable 2.8mm PVC/LSZH High Frequency Short Distance Signal Transmission

Exhibition

Cable Rg 174 U 50 Ohm Coaxial Cable 2.8mm PVC/LSZH High Frequency Short Distance Signal Transmission

Packaging and Transportation

Cable Rg 174 U 50 Ohm Coaxial Cable 2.8mm PVC/LSZH High Frequency Short Distance Signal Transmission

FAQ

  • Do you accept customized packaging/labels?

We can provide OEM packaging (such as customer LOGO box label), but need to confirm the design in advance.

  • Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

  • Can you provide samples?

We can provide free samples, but the shipping cost is borne by the customer.

  • Is the quality of your fiber optic cable products guaranteed?

All our fiber optic cable products are ISO 9001 certified.

  • How do I make a payment?

Support T/T (Telegraphic Transfer), L/C (Letter of Credit), 30% deposit, 70% final payment before shipment.
