5mm RG58 Coaxial Cable 50 Ohm Coax Cable Double Shielded Base Station Patchcord/Test Instrument Specialized
5mm RG58 Coaxial Cable 50 Ohm Coax Cable Double Shielded Base Station Patchcord/Test Instrument Specialized
Specifications
Brand Name :
HUAXIN/ OEM
Model Number :
Coaxial Cable RG58
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
CHINA
MOQ :
2000M
Price :
$0.3-$1.0
Payment Terms :
L/C,T/T
Supply Ability :
2000KM PER DAY
Delivery Time :
5-30Work Days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation.
Description

RG58 Coaxial Cable 50Ω Coaxial Cable Double Shielded Base Station Patchcord/Test Instrument Specialized

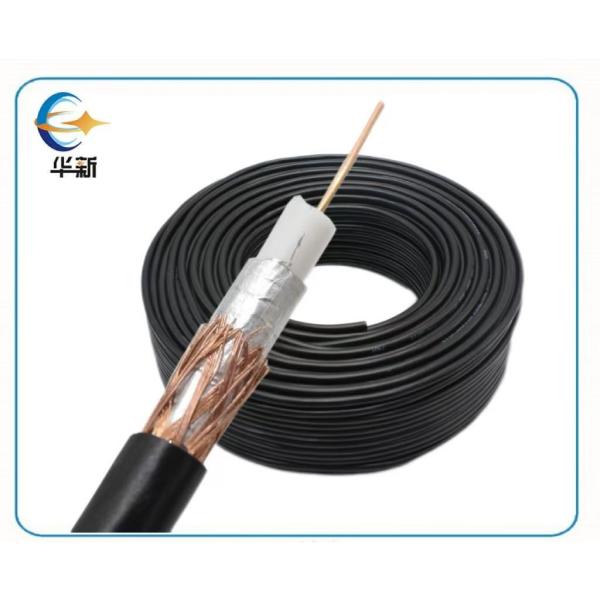

Coaxial cable RG58 is a standard 50 ohm impedance coaxial cable with a diameter of about 5mm, which is one of the most commonly used types of coaxial cable for RF applications. It offers excellent cost performance and good high-frequency characteristics and is widely used in communication equipment, test instruments and RF systems.

5mm RG58 Coaxial Cable 50 Ohm Coax Cable Double Shielded Base Station Patchcord/Test Instrument Specialized

Core Advantages:

  • Standards compatibility: MIL-C-17 compliant, compatible with most RF equipment
  • Balanced Performance: Optimized balance between attenuation, flexibility and cost.
  • Easy to install: Adapts to common BNC/SMA connectors for simple installation.
  • Reliable and durable: strong anti-interference ability, long service life

Inner conductor Bare copper 7 x 0.16 mm
Insulation Low Density PE Φ1.50 ± 0.08 mm
Outer conductor (shield) Bare copper 64 x 0.10 mm
Shield coverage 88%
Sheath PVC / LSZH Φ2.80 ± 0.13 mm

Electrical and Physical Properties

Characteristic impedance 50±3 Ohm
Nominal capacitance 100 pF/m
Propagation speed 66%
Insulation resistance >2000 Mohm.Km
Inner conductor resistance 122 Ohm/Km
Outer conductor resistance 39 Ohm/Km
Operating temperature range -30 °C - +70 °C
Copper weight 6.1 Kg/Km
Cable weight (approx.) 12.7Kg/Km
Shielding effectiveness >50 dB

Attenuation Index

Frequency (MHZ) Attenuation (DB/100 M) Attenuation (DB/100IFT)
50 17.7 5.40
100 26.0 7.93
200 38.5 11.74
400 55.3 16.86
500 63.6 19.39
600 69.2 21.10
860 81.9 24.97
100 88.3 26.92

Company Profile

5mm RG58 Coaxial Cable 50 Ohm Coax Cable Double Shielded Base Station Patchcord/Test Instrument Specialized

Certification

5mm RG58 Coaxial Cable 50 Ohm Coax Cable Double Shielded Base Station Patchcord/Test Instrument Specialized

Exhibition

5mm RG58 Coaxial Cable 50 Ohm Coax Cable Double Shielded Base Station Patchcord/Test Instrument Specialized

Packaging and Transportation

5mm RG58 Coaxial Cable 50 Ohm Coax Cable Double Shielded Base Station Patchcord/Test Instrument Specialized

FAQ

  • Do you accept customized packaging/labels?

We can provide OEM packaging (such as customer LOGO box label), but need to confirm the design in advance.

  • Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

  • Can you provide samples?

We can provide free samples, but the shipping cost is borne by the customer.

  • Is the quality of your fiber optic cable products guaranteed?

All our fiber optic cable products are ISO 9001 certified.

  • How do I make a payment?

Support T/T (Telegraphic Transfer), L/C (Letter of Credit), 30% deposit, 70% final payment before shipment.
