GJFJV Duplex Optical Cable Flame Retardant PVC Sheath FTTH Building Cabling
GJFJV Duplex Optical Cable Flame Retardant PVC Sheath FTTH Building Cabling
Specifications
Brand Name :
HUAXIN/ OEM
Model Number :
Indoor Optical Fiber GJFGV
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
CHINA
MOQ :
2000M
Price :
$0.03-$0.05
Payment Terms :
L/C,T/T
Supply Ability :
2000KM PER DAY
Delivery Time :
5-30Work Days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation.
Description

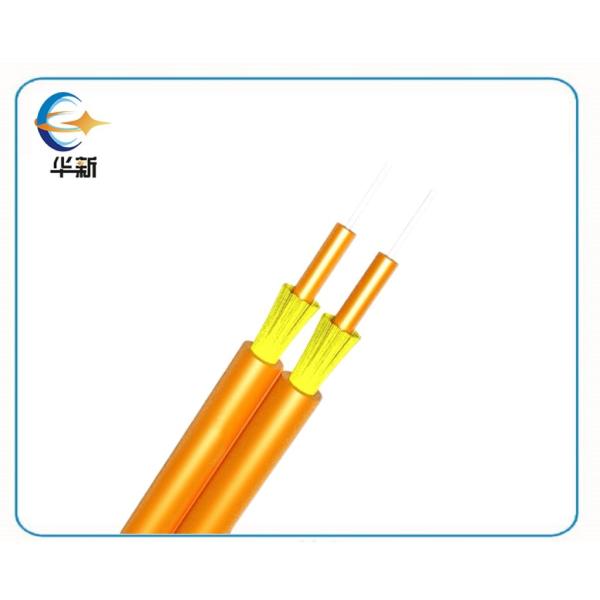

GJFJV Duplex Optical Cable Flame Retardant PVC Sheath FTTH Building Cabling

Duplex zipcord cable use 900μm tight buffer fiber as optical communication medium. The tight buffer fiber wrapped, and aramid yarn as strength member units, then the cable is completed with a layer of LSZH jacket as out sheath .

Application

  • Adopted to indoor distribution..
  • As pigtail of communication equipment.
  • Suitable for communication equipment served.
  • Can be installed conveniently.

Characteristics

  • Hight strength kevlar yarn member.
  • High quality tight buffered or loose tube.
  • Soft and easy to strip.
  • Round construction.

Technical Parameters

Cable construction details

No. of fiber 2F
SM fiber Fiber type Single mode Concentricity error ≤0.5um
MFD 8.6～9.8um Cladding non-circularity ≤0.7%
Cladding diameter 125±1um Fiber color white and blue
Tight buffer Material PVC Color white
Diameter 0.9±0.05mm Thickness 0.32±0.05mm
Yarn Material Kevlar yarn Color yellow
Type 1000D Qty 3 strands/unit
4 strands/unit
Out sheath Material LSZH Color yellow
Diameter 1.9±0.05mmx3.9±0.1 mm Thickness 0.35±0.05mm
2.9±0.05mmx5.9±0.1 mm 0.45±0.05mm
Gross weight 8.5±2kg/km (2.0mm)
15±3kg/km (3.0mm)

Cable mechanical and environment characteristics

Tensile strength Long term(N) 90 (2.0mm) 120 (3.0mm)
Short term(N) 150 (2.0mm) 225 (3.0mm)
Crush load Long term(N) 100N/100mm
Short term(N) 500N/100mm
Bending radius Dynamic 20D
Static 10D
Temperature -20℃～70℃

Company Profile

GJFJV Duplex Optical Cable Flame Retardant PVC Sheath FTTH Building Cabling

Certification

GJFJV Duplex Optical Cable Flame Retardant PVC Sheath FTTH Building Cabling

Exhibition

GJFJV Duplex Optical Cable Flame Retardant PVC Sheath FTTH Building Cabling

Packaging and transportation

GJFJV Duplex Optical Cable Flame Retardant PVC Sheath FTTH Building Cabling

FAQ

  • Can you provide the samples?

Yes,Samples free of charge, but freight necessary to bear yourself.

  • Does this fiber support outdoor use?

We offer both indoor and outdoor types of fiber optic products. The outdoor optical fiber is armored design with waterproof and UV protection, which is suitable for outdoor environment.

  • Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

  • Is the packaging of the product safe?

We use high-strength anti-shock packaging with anti-static foam or bubble wrap inside to make sure the products are not damaged during transportation.

  • Do you support bulk purchase?

Yes, we support bulk purchase and offer preferential price and customized service. Please contact our sales team for a detailed quotation.
