220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
Specifications
Place of Origin :
Shandong, China
Brand Name :
HUICAI
Type :
Vulcanizer
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Motor, Pressure vessel, Pump
Tire Machine Type :
Other Tire Machine
Voltage :
220/380V
Dimension(L*W*H) :
3200x1050x1730 mm
Year :
New
Warranty :
1 year
Key Selling Points :
Long Service Life
Power (kW) :
7.5 kW
Weight (KG) :
8000 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Certification :
ISO9001/CE
Nominal Molding Power (MN) :
1.20 MN
Plate Size (mm) :
400x1200 mm
Plate Pressure (MPa) :
2.5 MPa
Motor Power (kW) :
7.5 kW
Overall Size (LxWxH) (mm) :
3200x1050x1730 mm
After-sales Service Provided :
Engineers available to service machinery overseas
warranty period :
1 year
Color :
green, blue or as the customer's request
Packaging Details :
The package is suitable to long distance transportation, and can protect the machine perfectly.
Port :
Qingdao port
Supply Ability :
150 Set/Sets per Year
Price :
$6,000.00/sets >=1 sets
MOQ :
1
Description

Product Description

Uses:

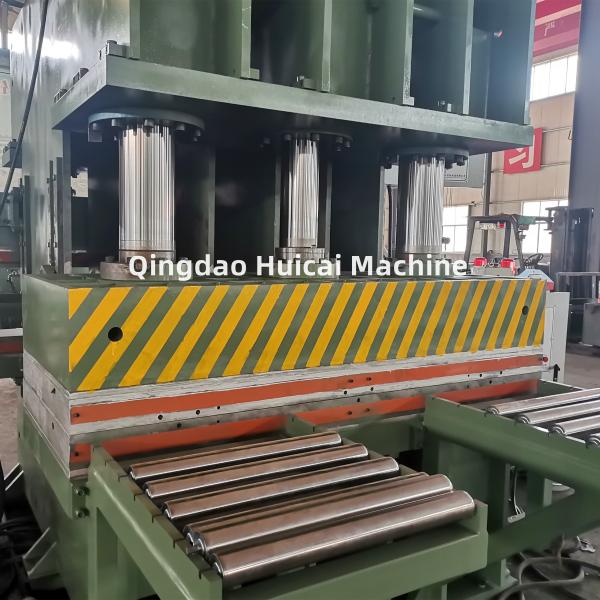

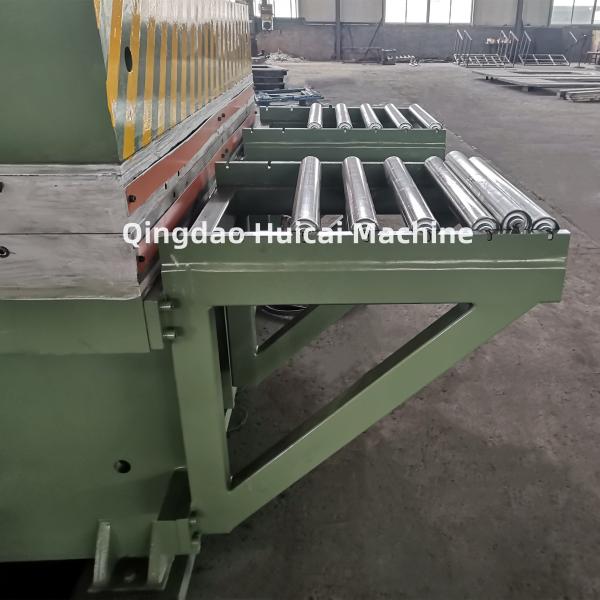

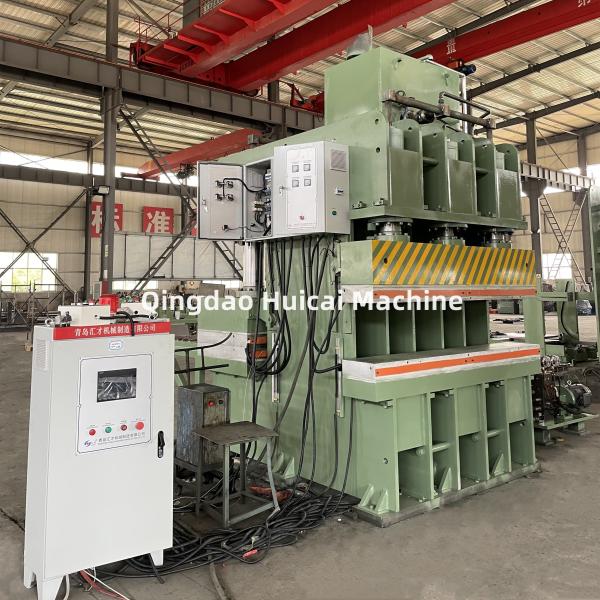

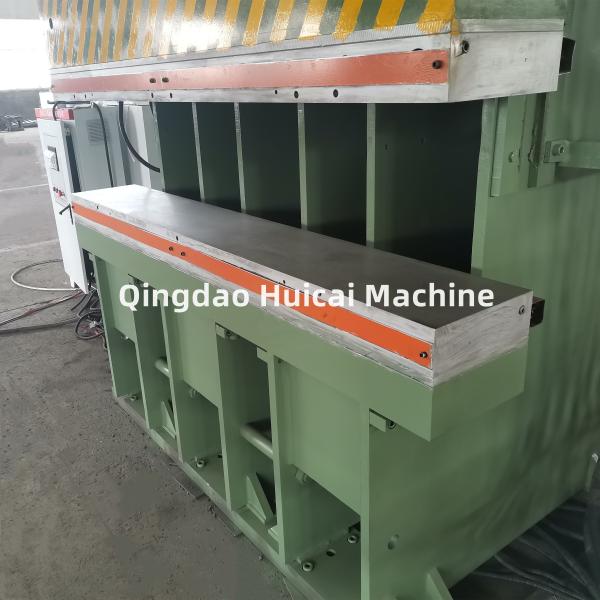

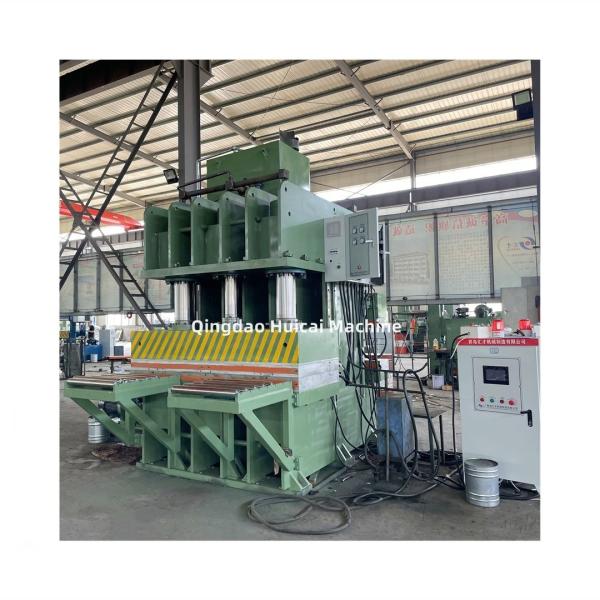

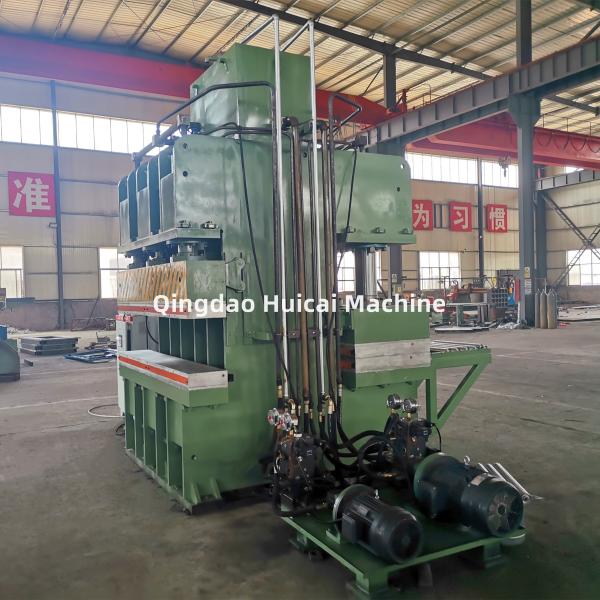

This plate vulcanizing press (jaw type) is mainly used for vulcanizing all kinds of ring rubber products such as vee belt, crawler belt, etc.

Main Features

1. High speed open/close molds, high production efficiency. 2. Automatic in/out mold and ejector device, low labor strength. 3. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption. 4. The electric system adopt PLC programming control, which is easy to be operated.
Technical parameters
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
Certifications
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power

Our Service

Why choose our company?
Qingdao Huicai Machinery Manufacturing Co., Ltd. is an export-oriented enterprise based on Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, we have over ten years' history in manufacturing rubber machinery. We can provide all technical support, best after-sell service for all you require.
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
1) AAA grade credit enterprise and Ce and ISO 9001

2) With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.

3) Exported to more than 20 contries with good quality. Example: The good year company in Chile.

Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.

Why choose our rubber mixing mill machine?

1. Roller is made by special technology. There are normal roller and alloy roller for the customer to choose.
2. All of these adopt hardened gear reducer made of 35CrMo to reduce the speed. It has the advantages of low noisy, large
transmission power, wear-resistant and impact resistance.
3. Adopt quenching gear to drive and increase the life of the whole machine.
4. Adopt foreign technology to weld the steel pedestal which is non-deformation, non-fracture. It can avoid the expense caused by wrong operation.
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
Packing & Delivery
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
Customer visting and acceptance:
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power
Related Products
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power

Products Name with link

91.8% Response Rate
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power

Products Name with link

91.8% Response Rate
220/380V C Model V-belt Vulcanizing Press Machine with 1.20 MN Nominal Molding Power

Products Name with link

91.8% Response Rate

FAQ

1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
4.Q:What's your payment term?
A:30% TT in advance, 70% TT before shipment Or L/C at sight.
5.Q:Can you design new product for us?
A:we have a professional development team that make new products according to your requirements.
