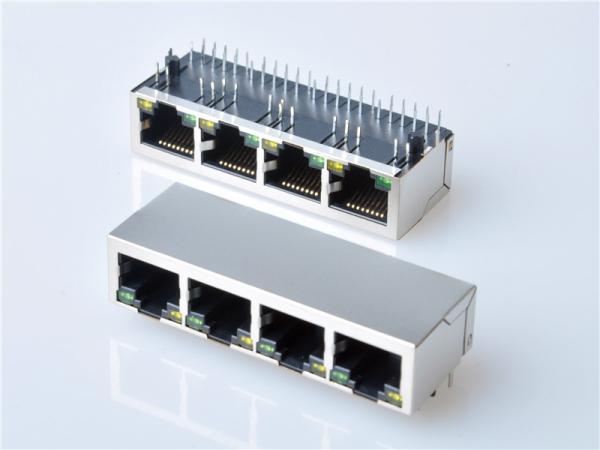

Shielded RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED, 1x4 Ports
Shielded RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED, 1x4 Ports
Shielded RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED, 1x4 Ports
Shielded RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED, 1x4 Ports
Shielded RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED, 1x4 Ports
Shielded RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED, 1x4 Ports
Shielded RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED, 1x4 Ports
Shielded RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED, 1x4 Ports
Specifications
Brand Name :
HULYN
Model Number :
HRK14-XXXX
Certification :
UL,CE,FCC,REACH
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
USD-0.1-5.0
Supply Ability :
100000pcs
Delivery Time :
2-3days
Packaging Details :
36*35*25cm
Payment Terms :
D/P, D/A, L/C, T/T, Western Union
Description
Electrical Characteristic:
Insulation Resistance:
500 MΩ Min.
Contact Resistance:
50 mΩ Max.
Withstand Voltage:
1000 VAC
Current Rating:
1.5 Amperes
Material:
Housing:
Thermoplastic UL94V-0
Contact:
Selective Gold Plating
Terminal:
0.35 mm Thick Gold Plated Contacts with Tin Plated Solder Area
Shield:
Nickel Plated Brass

Description:

10/100/1000Base-TX RJ45 1x1 Tab-DOWN Integrated Magnetics Connector,

designed to support high volume cost-conscious consumer applications such as:

ADSL modems, Cable modems, STB and Video on Demand.

Features and Benefits:

RoHS peak wave solder temperature rating 260°C

Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

Meets IEEE 802.3 specification

350μH minimum OCL with 8mA bias current

High performance for MAX EMI suppression for cost-conscious applications
