OEM Water Level Sensor Measuring Level Instruments For Tank

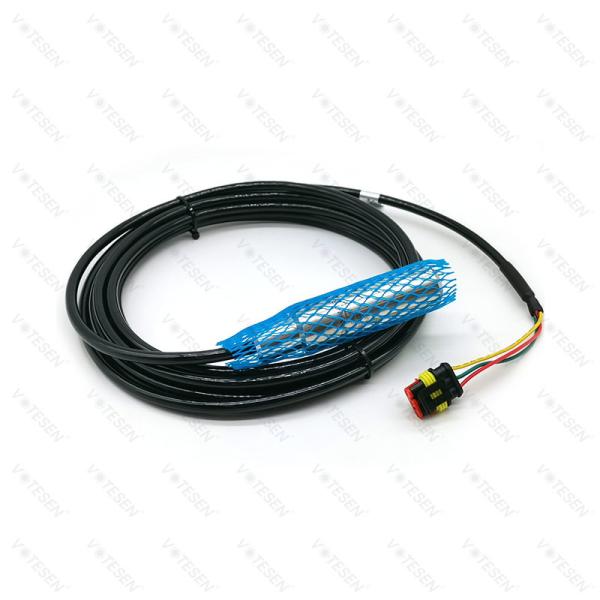

VLS710 Measuring principle is measuring hydrostatic pressure to calculate the height of liquid by pressure sensor. The VOTESEN water level sensor has a slim diameter 316 stainless steel protective housing and a nose cap for protection of the sensor diaphragm. This type thread size is NPT 1/2, this type is customization one for our customers (Default thread size is M20*1.5). We accept to customize probe part to suit for more application. The cable is made of PU coating with atmospheric vent tube, and providing a 4-20 mA and others output signal such as RS485, 0-5V. This special custom wire provides the product with corrosion resistance.It is widely used in sewage, river and lakes treatment as well as water/oil tanks ,channel, large rivers, reservoirs and coastline monitoring.

Application: Static liquid level, liquid tank, sewage, industrial water, pool, Well, etc.

1. Using holder to hang the sensor.

2. Flange connector to hold the transmitter and sensor.

3. Thread connector to hold the transmitter and sensor.

Widely use in various environments:

* Sewage Treatment

* Agricultural Irrigation

* Reservoir Level Measurement

* Deep Well Level Measurement

* Hydraulic Monitoring In Rivers And Sea

* Water Diversion Project

Different probe is suitable for different liquid measurement. There are many different material probe for suiting different measuring medium, such as ceramic probe, metal bellows, different dimension diameter; Users need to be aware of the most important issues facing the device, anti-sediment, corrosion resistant or others; Please Feel free to consult us and we can suggest the most suitable probe based on your requirements.

You may also consider an additional accessories such as Level Display as above to help you in monitoring the liquid level. Feel free to contact us to get a quotation of Submersible Liquid Level Transmitter with Display.
