Fiberglass RTD PT1000 Temp Sensor With Stainless Steel Braided Cable PT100
Fiberglass RTD PT1000 Temp Sensor With Stainless Steel Braided Cable PT100
Fiberglass RTD PT1000 Temp Sensor With Stainless Steel Braided Cable PT100
Fiberglass RTD PT1000 Temp Sensor With Stainless Steel Braided Cable PT100
Specifications
Brand Name :
VOTESEN
Model Number :
VTS300
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
3
Price :
Negotiable Price
Payment Terms :
T/T
Supply Ability :
35000pcs per day
Delivery Time :
7-25 working days
Packaging Details :
Carton
Sensor Chip :
IST, Heraeus
Temperature Range :
-50ºC to 500ºC (Customizable)
Application :
Industrial, IoT Temperature Monitoring, Lab, Oven
Accuracy :
Class A (Customizable)
Probe Material :
Stainless Steel
Probe Size :
Customizable
Cable Material :
Fiberglass Insulated Stainless Steel Braided
Cable Length :
1M, 2M, 5M, 10M (Customizable)
Wiring :
3 Wire (Customizable)
Connector :
Tinned Wire End (Customizable)
Description

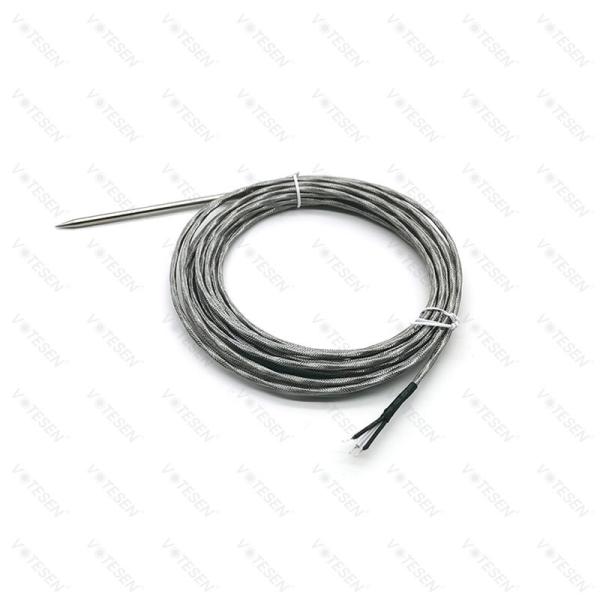

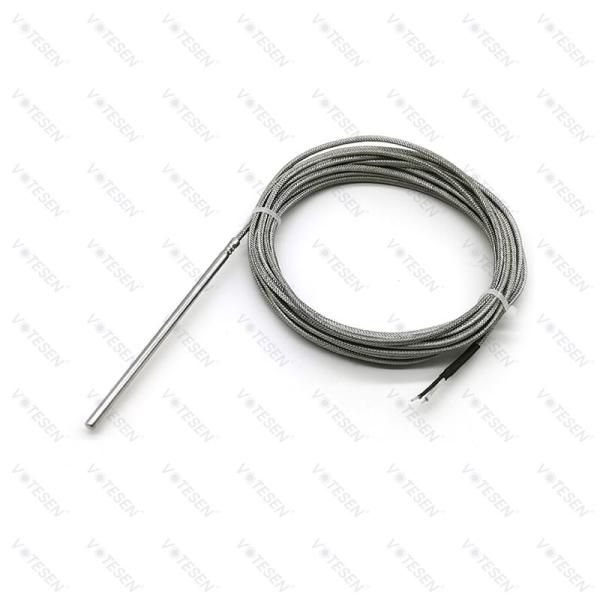

Fiberglass with Stainless Steel Braided Cable PT100 PT1000 Temperature Sensor

VTS300 RTD PT100 PT1000 fiberglass insulated stainless steel braided cable is ideal for higher temperature applications up to 500°C and the rugged construction of the stainless steel braided cable makes it ideal for heavy industrial applications such as in brick kilns and in the glass industry. The RTD elements connected directly to a fiberglass insulated, fiberglass jacketed, stainless steel overbraided cable without the need for extension wires or metal transition fittings. This sensor can be bespoke manufactured with many options for length, diameter and alternative lead wires available.

PRODUCT PARAMETERS
Sensor Type RTD (PT00/PT1000) Temperature Sensor
Sensor Element Original IST / Heraeus
Temperature Range -50ºC ~ +500ºC (Customizable)
Accuracy Class A (Customizable)
Wiring Configuration 2-wire, 3-wire, 4-wire (Customizable)
Probe Type Stainless Steel Tube
Probe Size Customizable
Cable Material Fiberglass insulated stainless steel braided, PTFE, Silicone, TPE, PVC etc (Customizable)
Cable Length 1M, 2M, 5M, 10M etc (Customizable)
Connector Tinned Wire End, Aviation Plug, USB, Audio Jack 2.5mm 3.5mm, JST, Molex, RJ45, DuPont, XH, CWB, CJT, PH, Micro-Fit 3.0, RJ11 etc (Customizable)

PRODUCT FEATURES

★ High temperature resistance

★ Wide temperature range measurement

★ Stable

★ High precision

★ Fast response

PRODUCT APPLICATIONS

★ IoT temperature monitoring

★ Pharmaceutical

★ Laboratories

★ Food handling and processing

★ Industrial electronics

★ Automotive

★ Welding equipment

★ Thermostat

HOW TO ORDER?

To customize the most suitable RTD temperature sensor for your application, kindly let us know your requirements:

1. RTD Type: PT100 or PT1000

2. Temperature Range:

3. Accuracy:

4. Probe Type:

5. Probe Size:

6. Cable Material:

7. Cable Length:

8. Wiring Configuration:

9. Connector:

10. Order Quantity:
