Integrated RTD PT100 Temperature Sensor RS485 PT1000 For Power Station
Integrated RTD PT100 Temperature Sensor RS485 PT1000 For Power Station
Integrated RTD PT100 Temperature Sensor RS485 PT1000 For Power Station
Integrated RTD PT100 Temperature Sensor RS485 PT1000 For Power Station
Specifications
Brand Name :
VOTESEN
Model Number :
VTS700R
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
3
Price :
Negotiable Price
Payment Terms :
T/T
Supply Ability :
35000pcs per day
Delivery Time :
7-25 working days
Packaging Details :
Carton
Sensor Chip :
IST, Heraeus
Temperature Range :
-200℃ to 500℃ (Customizable)
Application :
Petroleum, Chemical Engineering, Power Station, Hydrology, Industrial
Accuracy :
Class A (Customizable)
Probe Material :
Stainless Steel
Probe Size :
Customizable
Electrical Connector :
Hirschmann plug (Customizable)
Thread Connection :
Customizable
Output :
RS485 (Customizable)
Description

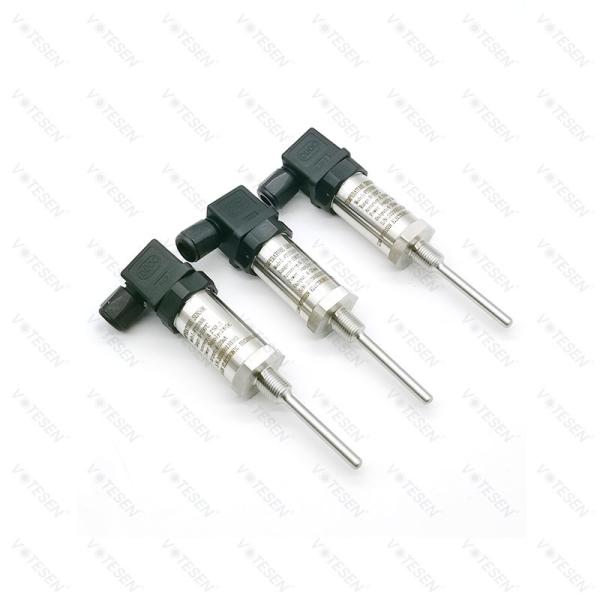

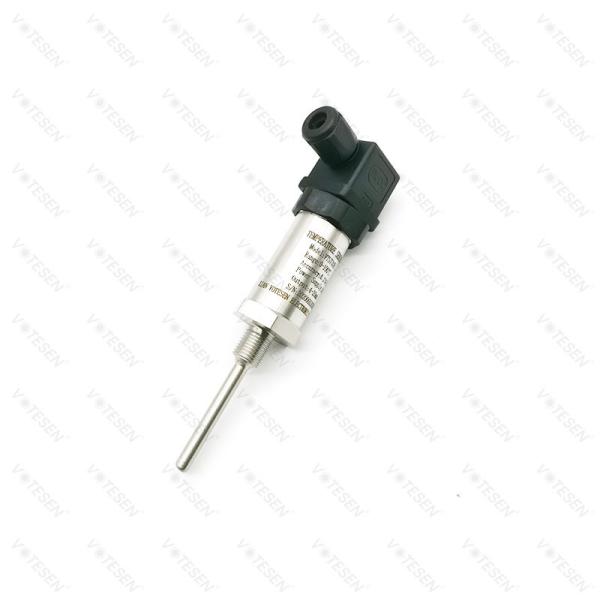

Insertion Type RS485 RTD PT100 PT1000 Integrated Temperature Transmitter

VTS700R PT100 PT1000 temperature sensor with integral RS485 transmitter and standard DIN Hirschmann connection. A DIN style Hirschmann connector is used for easy installation and replacement whilst maintaining reliability. Other than Hirschmann connector, it can be customize with M12 socket or cable connection. It is housed in a 304/316 Stainless Steel body with 1/2" BSP process connection and fitted din connector with connection lead. The temperature transmitter can be customized with digital or analog output. It is high accuracy, good stability, durable, high reliability and convenient to install. It is converted into a standard electrical signal output with a good linear relationship with temperature through signal amplification, compensation and nonlinear correction processing by the internal dedicated digital adjustment module.

Integrated RTD PT100 Temperature Sensor RS485 PT1000 For Power Station

PRODUCT PARAMETERS
Sensor PT100 / PT1000
Operating Temperature -200°C ~ 500°C; or other operation temperature range available
Probe Diameter 6mm, 10mm (Customizable)
Probe Length 5mm, 10mm, 50mm (Customizable)
Thread Size M20*1.5, G1/4, G1/2, G3/4 (Customizable)
Accuracy Class A (Customizable)
Output RS485, 4-20mA, 0-5V, 0-10V (Customizable)
Power Supply DC10~30V, Nominal voltage 24VDC
Electrical Connector Hirschmann, M12 Aviation Socket, Waterproof Metal Joint (Customizable)

PRODUCT FEATURES

★ Stainless steel housing, all-in design with anti-condensation function and good heat dissipation

★ Apply to fluid

★ Insertion type probe size can be customized

★ Shock resistance and anti-corrosion

★ Stainless steel case

★ Digital or Analog output options

★ Handy installation

PRODUCT APPLICATIONS

★ Petroleum

★ Chemical engineering

★ Metallurgy

★ Power station

★ Hydrology

★ Air conditioner

★ Agriculture
★ Machinery

★ Duct, pipe

★ Ventilation

HOW TO ORDER?

To customize the most suitable RTD temperature transmitter for your application, kindly let us know your requirements:

1. RTD Type: PT100 or PT1000

2. Temperature Range:

3. Accuracy:

4. Probe Size:

5. Thread Size:

6. Electrical Connector:

7. Output:

8. Order Quantity:
