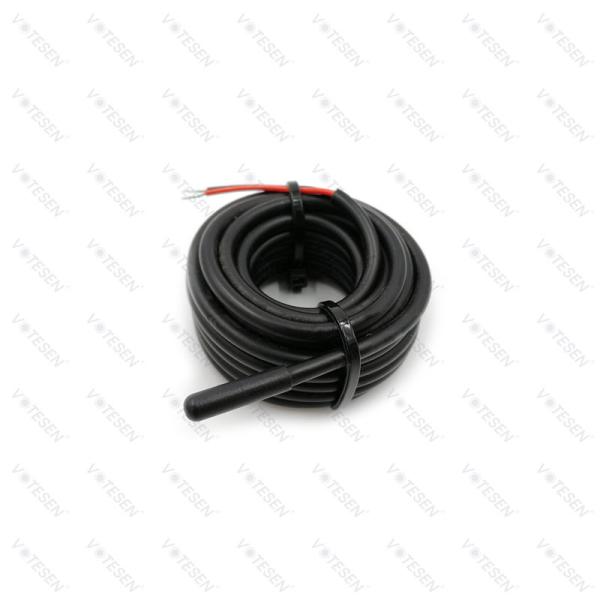

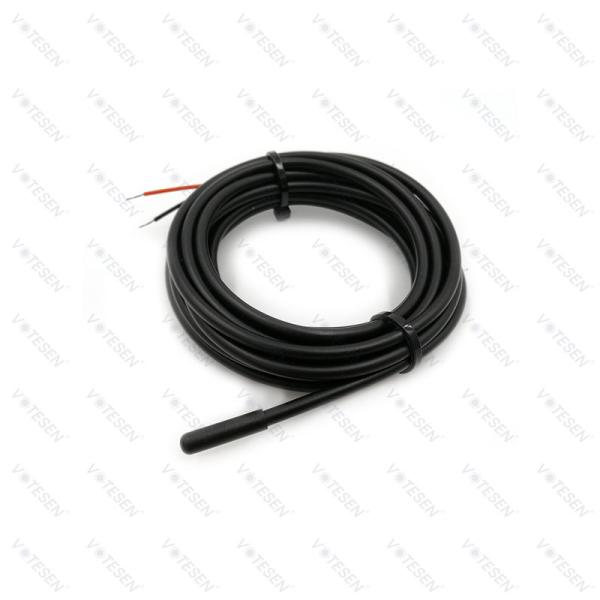

10K 3977 NTC Thermistor Temperature Sensor Underfloor Heating
10K 3977 NTC Thermistor Temperature Sensor Underfloor Heating
10K 3977 NTC Thermistor Temperature Sensor Underfloor Heating
10K 3977 NTC Thermistor Temperature Sensor Underfloor Heating
10K 3977 NTC Thermistor Temperature Sensor Underfloor Heating
10K 3977 NTC Thermistor Temperature Sensor Underfloor Heating
10K 3977 NTC Thermistor Temperature Sensor Underfloor Heating
10K 3977 NTC Thermistor Temperature Sensor Underfloor Heating
Specifications
Brand Name :
VOTESEN
Model Number :
VTS100
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
35000 Pcs per Day
Delivery Time :
7-25 Working Days
Packaging Details :
Carton Box
Standard NTC :
R25℃=10KΩ, B25/50=3977K (Customizable)
Operating Temperature :
-40°C ~ 105°C
Application :
Measure Floor Temperature, Monitoring Piping Water Temperature, Indoor & Outdoor Temperature, etc.
Theory :
Resistance Sensor
Probe Type :
Black ABS Plastic Straight Type Probe (Customizable)
Probe Material :
ABS (Customizable)
Probe Dimension :
Φ5*20mm (Customizable)
Cable Material :
PVC Cable (Customizable)
Cable Length :
3M (Customizable)
Connector :
Wiring Tinning End (Customizable)
OEM :
Acceptable
Warranty :
1 Year
Description

VOTESEN VTS100 series NTC Thermistor Temperature Sensors employ NTC sensor elements and feature mechanical protection in different packaging technologies and integrated connectors. Thanks to the robust design and excellent performance, our NTC Temperature Sensors can suitable for the most demanding temperature sensing applications, such as Measure Floor Temperature, Monitoring Piping Water Temperature, Indoor & Outdoor Temperature, etc. Our VOTESEN VTS100 Series NTC Temperature Sensors are the best when it comes to accuracy, precision, and durability. Standard technical parameters make these NTC Temperature Sensors ideal for field use.

PRODUCT PARAMETER

NTC thermistor 10k 3977 underfloor heating system black abs plastic straight type probe temperature sensor is a black ABS plastic straight type probe for underfloor heating system, made with PVC cable. its NTC thermistor is housed in a black ABS plastic straight type probe, ideal for measure floor temperature, monitoring piping water temperature, indoor & outdoor temperature, etc.

Standard NTC R25℃=10KΩ, B25/50=3977K (Customizable)
Theory Resistance Sensor
Resistance 5KΩ/10KΩ/20KΩ/50KΩ/100KΩ/230 KΩ/1000KΩ (Customizable)
B Value 3270K/3380K/3470K/3550K/3700K/3950K/4200K/4537K/4250K/4267K/4650K (Customizable)
Operation Temperature -40°C ~ 105°C
Accuracy ± 1%
Thermal Response Time 5~15s
Probe Type Black ABS Plastic Straight Type Probe/Flange Probe/Thread Probe/Ring Lug/Epoxy (Customizable)
Probe Material ABS/Nickel-Clad Copper/ Copper/Plastic/Aluminum/Alloy/PVC/Epoxy/Glass (Customizable)
Probe Dimension Φ5*20mm, Φ6*25mm, Φ7.5*20mm (Customizable)
Probe Protection IP68
Cable Material PVC Cable/Fiberglass Cable/Stainless Steel Braided/Silicone/TPE (Customizable)
Cable Length Customize according to your requirements
Connector Wiring Tinning End/Stripped Soldered/Wiring Tinning End/Molex/JST/DuPont/CWB/CJT/PH/Micro-Fit 3.0/RJ11/RJ45/RJ50/3.5mm Stereo Plug/2.5mm Mono Jack (Customizable)
Application Measure Floor Temperature, Monitoring Piping Water Temperature, Indoor & Outdoor Temperature, etc.

PRODUCT FEATURE

★ Suitability for Underfloor Heating System

★ Various Dimensions

★ Waterproof IP68

★ High Rigidity PVC Cable

★ Easily Passed Through the Existing Flexible Conduit

★ Excellent Tolerance and Interchangeability

★ Long-term Stability and Reliability

★ Fast Response

★ Easy to Connect with an Underfloor Heating Thermostat

★ The ABS Probe can be Easily Stick to the Electro-Thermal Film

PRODUCT APPLICATION

Our Votesen NTC Thermistor 10K 3977 Underfloor Heating System Black ABS Plastic Straight Type Probe Temperature Sensor works with a wide range of different thermostats. Mainly used for underfloor heating thermostat to measure the floor temperature, also suitable for monitoring piping water temperature, indoor temperature, and outdoor temperature. The 3 Meters long PVC cable has high rigidity, allowing it to be easily passed through an existing flexible conduit. This sensor is IP68 Rated waterproof suitable for use in wet areas. No polarity, simply connect the two wires either way round to the sensor outlet on the thermostat. Good ABS Plastic Straight thermoplastic protective housing for NTC sensor. Easy to connect with an underfloor heating thermostat, the sensor probe can be stick to the electrothermal film.

HOW TO ORDER?

We can customize your NTC products according to your demand. We produce all kinds of special requirements of standard and non-standard temperature sensors and provide OEM and technical support. If you are unsure of the type of thermistor sensor or assembly that fits your requirements, kindly provide us the following information for custom made NTC temperature sensors:

★ Operation Temperature Range

★ Resistance Value

★ B Value

★ Application

★ Probe Type/Shape & Dimension

★ Cable Material

★ Cable Length

★ Connector

★ Sample Order Quantity

★ Bulk Order Quantity

If there is a specific request or custom made, you are welcome to provide us your detailed drawing. Feel free to connect with us!
