• Q CPU modules available as single & multi processor
• RS232C interface for easy programming & monitoring
• Integrated flash ROMs for memory operation
• Processing the inputs & outputs with refresh mode
• Q02HCPU & upwards have a USB interface
• Floating point arithmetic according to IEEE 754
• Mathematical functions such as angle/exponential functions & logarithm
• Q Process CPUs offer:
• Simplified control & engineering
• Extensive loop control
• High speed loop control
• Hot-swap module replacement in run mode
• Works with CCLink IE, MELSECNET/H for multiplex remote I/O system
• Loop control & sequence control with 1 CPU
• Use with isolated analogue modules, ideal for process control
• Smoothed analogue input value

• System Q, a modular PLC system
• Communication hub connecting to fieldbus or data networks
• Multi CPU solutions on a single backplane
• Solutions can include PLC, Motion, Robots, NC, PC & Process CPUs
• Integration with HMI, Soft HMI through to SCADA & OPC
• MES & web server modules
• Redundancy options for both PLC hardware & networks
• Pulse catch & interrupt modules
• Communication modules
• Network modules
• Digital input/output modules
• Analogue input/output modules
• Positioning modules

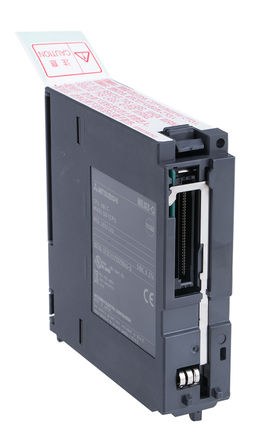

Q Series CPU - Q01CPU - 14kStep

Cost effective, powerful processor ideal for local and remote machine control, remote I/O networking of conveyors, pump control or any other PLC application. The processors can control up 1024 local I/O and store 8ksteps of program (Q00CPU) and 14k steps (Q01CPU). Both have 249 available instructions to allow easy and flexible development of control programs.
PID instructions
Support for floating-point numbers
Networking capability
Multiple CPU configurations
RS232 equipped for programming and monitoring from PC or operating panel
Integrated flash ROMs for memory operation without additional memory cards

Mitsubishi Q Series CPU's and I/o Bases

Mitsubishi Q Series CPU's and I/O Bases

The Mitsubishi Q Series is highly flexible. It can be a single or multi processor solution, with up to four CPUs installed on the same backplane. Users can also opt to swap PLC CPUs with motion control CPUs or even add a PC directly (as an intregal part) to the PLC backplane. Q Series can meet modern process challenges by offering an “Automation Rich Environment” from the combination of advanced PLC technology with Motion and a PC as one seamless solution with no networking requirement between them. The Q Series replaces the Mitsubishi A series of PLCs.

Easy to set up and to expand a system
Fast processing speeds and large memory capacity
Uses Windows based GX software
