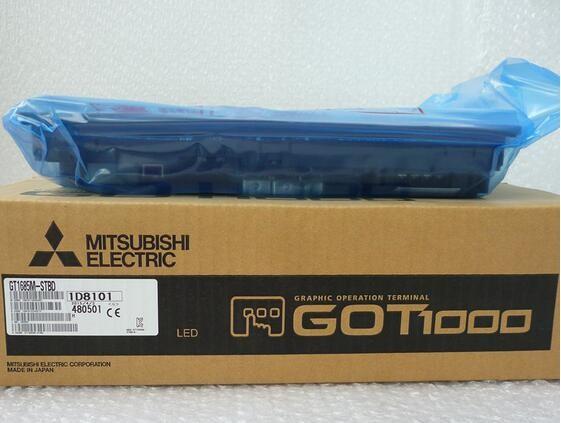

Mitsubishi GT1685M-STBD GOT main units 12.1 (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan
Mitsubishi GT1685M-STBD GOT main units 12.1 (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan
Mitsubishi GT1685M-STBD GOT main units 12.1 (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan
Mitsubishi GT1685M-STBD GOT main units 12.1 (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan
Mitsubishi GT1685M-STBD GOT main units 12.1 (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan
Mitsubishi GT1685M-STBD GOT main units 12.1 (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan
Mitsubishi GT1685M-STBD GOT main units 12.1 (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan
Mitsubishi GT1685M-STBD GOT main units 12.1 (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan
Specifications
Brand Name :
Mitsubishi
Model Number :
GT1685M-STBD
Certification :
CE
Place of Origin :
Japan
MOQ :
1
Price :
USD2965~3500/PCS
Payment Terms :
T/T
Supply Ability :
500PCS/week
Delivery Time :
in stock
Packaging Details :
Height (mm): 242 Width (mm): 316 Depth (mm): 52 Weight (kg): 2.7 IP Rating (front): IP67 IP Rating (back): IP20
Screen :
65536 Colour
Type :
Type: TFT
Pixels :
800 x 600
Size :
12.1"
Manufacturer :
Mitsubishi
Description

Mitsubishi GT1685M-STBD GOT main units 12.1" (SVGA:800×600 dots) (24V DC) NN Brand New Original Made in Japan

  • Part Number: GT1685M-STBA
  • Series: GOT 1000
  • Manufacturer: Mitsubishi
  • Our part number: GT1685MSTBA
  • Size: 12.1"
  • Pixels: 800 x 600
  • Type: TFT
  • Voltage: 100-240V AC
  • Screen: 65536 Colour
  • Keyboard: Touch screen
  • Internal memory: 15 MB
  • Standard Communications: Ethernet, RS232, RS422, USB
  • Height (mm): 242
  • Width (mm): 316
  • Depth (mm): 52
  • Weight (kg): 2.7
  • IP Rating (front): IP67
  • IP Rating (back): IP20

Information about this range

  • Six ranges, GT10, 11, 12, 14, 15 & 16
  • Easy access USB port for programming & maintenance
  • Powerful 64-bit RISC processor
  • High memory capacity
  • Full iQ platform integration possibility
  • Expressive high resolution screens
  • Innovative design
  • Multi language with Unicode 2.1
  • Scripts for reduced PLC load
  • Extended protocol support
  • Improved screen design software
  • Manifold possibilities for storing & transporting project data

GT2715-XTBA GT2103-PMBD GT2512-STBA GT2308-VTBA
GT2715-XTBD GT2103-PMBDS GT2512-STBD GT2308-VTBD
GT2712-STBA GT2103-PMBDS2 GT2508-VTWA GT2310-VTBA
GT2712-STBD GT2103-PMBLS GT2508-VTWD GT2310-VTBD
GT2710-STBA GT2710-VTWA GT2508-VTBA GS2107-WTBD
GT2710-STBD GT2710-VTWD GT2508-VTBD GS2107-WTBD
GT2708-STBA GT2710-VTBA GT2510-VTWA GS2110-STWA
GT2708-STBD GT2710-VTBD GT2510-VTWD GS2110-STWD
GT1455-QTBDE GT1455-QTBD GT2510-VTBA GT2510-VTBD

Mitsubishi GT1685M-STBD GOT main units 12.1Mitsubishi GT1685M-STBD GOT main units 12.1Mitsubishi GT1685M-STBD GOT main units 12.1Mitsubishi GT1685M-STBD GOT main units 12.1

Category GOT body
Series GOT2000/GOT1000
Classification Large: 8-15-
Product no. GT1685M-STBD
Model name GT16
Standard fit UL/cUL, CE (EMC), KC, ABS, BV, DNV, LR, NK, RINA, GL
Display unit Type TFT color LCD (high brightness, wide viewing angle)
Screen size 12.1 Type
RES SVGA:800×600 [dot]
Display size 246 (W) x 184.5 (H) [mm]
Number of display characters 16 Dot fonts time: 50-x 37 line (double-byte)
12 Dot standard font: 66-x 50 lines (double-byte)
Display colors 65536 Colors
Viewing angle Left on each 80 degrees, 60 degrees and below 80 degrees
Brightness liquid crystal unit 470 [cd / m 2 ]
Brightness adjustment 8 Stage adjustment
Life About 52,000 time (ambient temperature 25 ° c)
Screen maximum can be registered. 4096 Screen
Backlight Features (Replaceable) CCFL Backlight broken detection features with the backlight OFF / screen save time can be set
Life Approximately 50,000 hours or more (ambient temperature is at 25 ° c display brightness and 50% time)
Color White
Touch panel Method Analog resistive
Key size Minimum 2 × 2 [dot] (1 per)
At the same time press and hold points At the same time push disabled (only one can touch)
Life More than 1 million times (operation 0.98 [N] below)
Motion sensor Detection distance 1 [m]
Detection range Up and down left and right respectively 70 degrees
Detection delay time 0-4 [S]
Memory Flash memory Capacity Built-in Flash memory 15 MB
Life (write times) 100000 Times
Applications For storing project data, for storing the OS
Battery Type GT15-bat-shaped lithium battery
Backup target Clock, maintenance period for notification data, and log data
Life Approximately 5 years (ambient temperature: 25 ° c)
Integrated interface RS-422/485 (unisex) RS-422/485 1ch, transmission speed: 115200 / 57600 / 38400 / 19200 / 9600 / 4800 bps, connector shape: 14-pin (female), usage: connection devices for communication
RS-232 RS-232 1ch, transmission speed: 115200 / 57600 / 38400 / 19200 / 9600 / 4800 bps, connector shape: d Sub 9 pin (male), applications: connection devices for communication, for PC connection (project data upload / download, OS installation, FA transparent feature)
Ethernet Data transfer method: 100 Base-TX/10 base-t 1ch, connector shapes: RJ-45 (phone jack), use: connection devices for communication, gateway function for, PC connection for (project data upload/download, OS installation, MES interface features)
USB (device) USB (Full-Speed 12Mbps) 1 ch, connector shapes :TYPE Mini-B, applications: for PC connection (project data upload/download, OS installation, FA transparent feature)
USB (host) USB (Full-Speed 12Mbps) host 1ch, connector shape :TYPE-A, applications: data transfer and storage
CF card Compact Flash slot 1 ch the connector shape :TYPEI, applications: data transfer, data storage, GOT started for
Board options features MES interface for features 1 ch
Expansion unit Communication unit and options unit fitted for 2 ch
Buzzer output Single tone (length adjustable)
Protection structure Front :IP67f (JEM1030), Edition internal :IP2X (JEM1030)
External dimensions 316 (W) x 242 (H) x 52 (D) [mm]
Panel cut dimensions 302 (W) x 228 (H) [mm]
Mass (excluding mounting bracket) 2.7 [kg]
Ambient temperature Display unit 0 ~ 50 ° C
Display of non- 0 ~ 55 ° C
Storage ambient temperature -20 ° C ~ 60 ° c
Ambient humidity 10 ~ 90% RH, non-condensing.
Storage humidity range 10 ~ 90% RH, non-condensing.
Vibration resistance Standards & specifications Conform to JIS B 3502, IEC 61131-2
If there is an intermittent vibration < Frequency: 5 ~ 9 Hz > piece amplitude 3.5 mm, sweep pull number of X, Y, Z directions 10 times
< Frequency: 9 ~ 150 Hz > acceleration 9.8 m / s 2 The sweep pull number of X, Y, Z directions 10 times
If there is a continuous vibration < Frequency: 5 ~ 9 Hz > piece 1.75 mm, amplitude sweep pull number of X, Y, Z directions 10 times
< Frequency: 9 ~ 150 Hz > acceleration 4.9 m / s 2 The sweep pull number of X, Y, Z directions 10 times
Impact resistance Conform to JIS B 3502, IEC 61131-2 (147 m / s 2 The XYZ 3 direction 3 times each)
Operating atmosphere Oil smoke and corrosive gases, flammable gas without the conductivity of dust so badly, that should not direct sunlight (even when you save as)
Use elevation less than 2000 m
Installation location In the control panel
-Over voltage category II the following
Pollution degree 2 The following
Cooling method Its cold
Input power voltage DC24V (+ 25%,-20%)
Power consumption Normal season 40 W or less
When the backlight goes off 26 W or less
Inrush current 12.2A (55 ms) (at maximum load)
Permissible instantaneous stop time 10 ms or less
Noise immunity Noise voltage of 500 VP-p noise width 1 μs, 25-60 Hz noise frequency Simulator
Withstand voltage Bulk power supply terminal ⇔ grounding DC500V 1 minute
Insulation resistance Power terminal bulk ⇔ grounding between DC500V insulation tester at Ω more than 10 M.
Applicable wire size 0.75-2 [Mm 2 ]
Applicable crimp terminal M3 screws for crimp terminals RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Fit clamping torque (Terminal units Terminal screw) 0.5 ~ 0.8 [N-m]
Grounding D seeds ground (less than 100 Ω), non-grounding connected to machines for that
