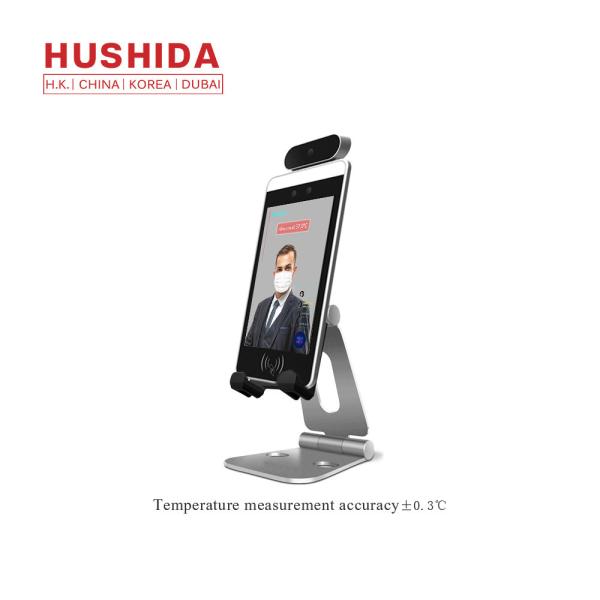

HUSHIDA Face Access Control F2 Series Automatic Fill Light Switch
Product Description:
The face recognition integrated machine can effectively check the visitor and record it for easy review and review; non-manual authentication, fast face recognition, verification can be completed in one second; automatic registration of historical registration data can be used to shorten the registration time, Reducing work pressure; automatic display of historical registration data, eliminating the need for repeated inquiries, and reducing the difficulty of work; face recognition and access control all-in-one machines are widely applicable to face recognition scenarios in various areas such as gateways, subway security inspections, public security buildings, banks, and communities.
Product Features:
● Post-type industrial design, smooth lines, stable performance, support touch screen operation;
● Touch screen display, software interface and operation prompts, face frame, real-time detection of the largest face, convenient for user calibration;
● Use binocular 1.3 million high-definition wide-angle wide-dynamic camera to support anti-fake photos and videos; use deep learning algorithm to support 20,000 white list of faces, fast recognition speed, high accuracy rate;
● The device supports external access control host or Wigan card reader through the international standard Wigan protocol (W26 W34);
● The safety gating module can be connected via RS485, and the safety gating module can be connected to the electric control lock. The door will not be opened if the host is maliciously damaged;
● The device can output a fixed voice prompt for the authentication result;
● With watchdog guard mechanism to ensure the stable operation of the equipment;
Specification | 8 inches |
Front frame | Aluminum alloy front frame + tempered glass |
Rear shell | High-quality cold-rolled sheet |
Color | Black |
Net weight | 1kg (excluding post) |
Gross weight | 1.1kg (excluding column) |
Overall size | 248 (W) × 141 (H) × 2.9 (D) mm |
Power input | DC12V / 3A |
Horn filter | 2X3W4Ω |
Overall power consumption | 30W |
Standby power consumption | 1W
|
CPU | Rockchip RK3288, quad-core ARM Cortex A17 1.8GHz |
GPU | Quad-core ARM Mali-T764 MP |
RAM | LPDDR3 1G ~ 4GB (optional) 2GB standard |
Built-in storage capacity | EMMC8GB / 16G / 32G optional (optional, standard 8GB) |
Camera | Binocular 130W3. Sensor size: 1 / 2.7 ”CMOS sensor |
Application Of Face Access Control
The intelligent temperature measuring machine can be installed in the main entrances of crowded places such as enterprises,schools, hotels, shopping malls, office buildings, banks, government halls, etc., to monitor the temperature of employees, customers, and visitors in real time, effectively helping to prevent epidemics.
