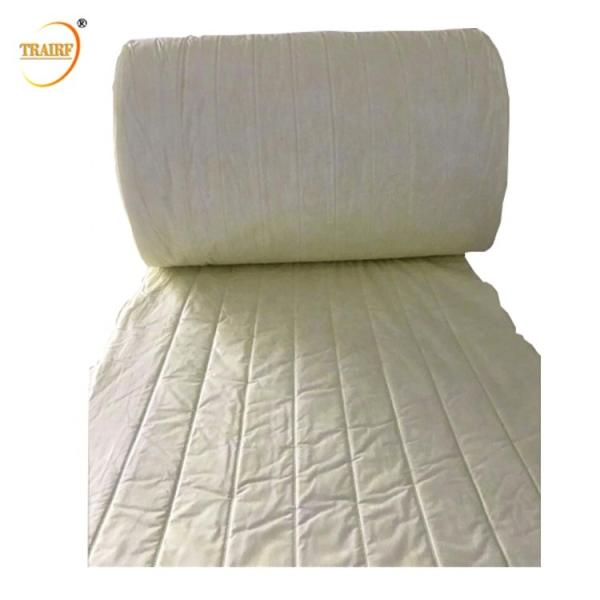

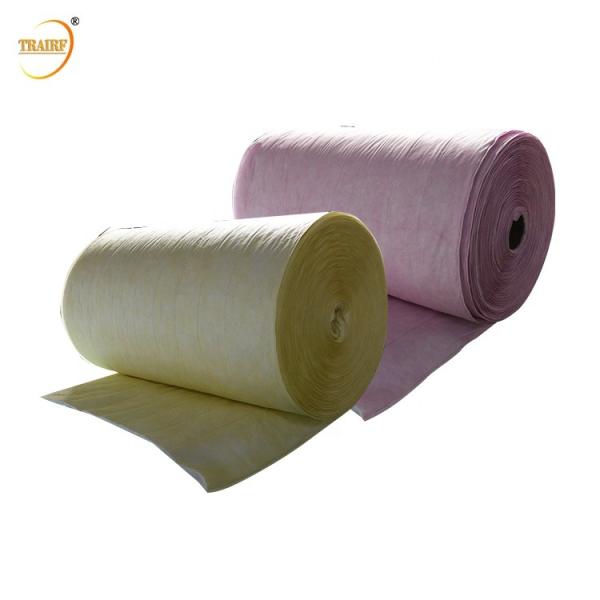

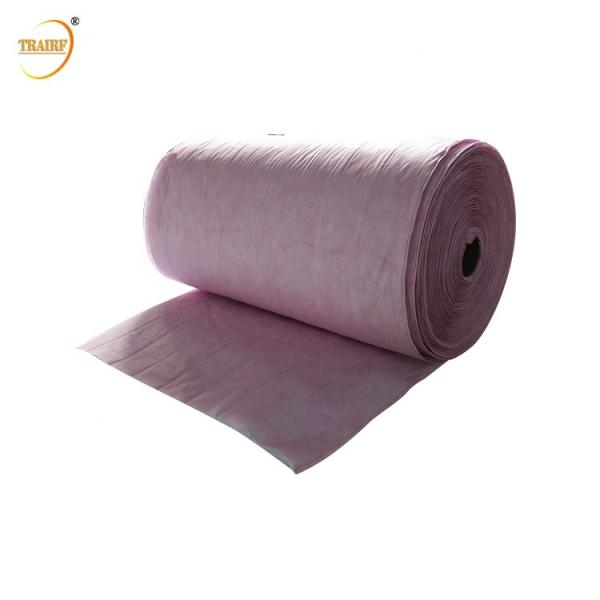

F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll
F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll
F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll
F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll
F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll
F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll
Specifications
Place of Origin :
Sichuan, China
Brand Name :
TRAIRF
Packaging Details :
1. FCL Shipment Order, using 5 layers carton case
2. LCL Shipment order, using wooden case package outside
Price :
$1.50/square meters 1-999 square meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Pieces per 2-30days
Delivery Time :
2-30days
Construction :
Bag Filter
Porosity :
0.3u
Product name :
F7 Medium Efficiency Pocket Bag Air Filter Roll Media
Filter Media :
Melt blown
Application :
Air conditioner air filter
Type :
Cut into Roll or Pieces
Description

Synthetic Melt blown Pocket Filter Roll Media

Our pocket air filter Media Material Specifiation:

1) Surface layer: 100% high strength non-woven fabric, color can be made according to customer's demand.

2) Bi-component (PP +PET) layer:bi-component structure, in that, the super-fine Melt-blown fiber give the non-woven higher filtration efficiency rate and the PET fiber convey excellent compression resilince property. The two fibers are blended in structure of"Z" shape,which makes the filter media featured with higher air permeability and dust holding capacity, more importantly, it can decrease the pressure drop raising up during its using. it is a newly developed filter media for the applications requesting higher dust holding and low resistance synchronously.

3) Lining Non-woven fabric layer: needle punched media or non-woven compound media applied, design to filter the larger particles at lower initial pressure drop and enhance to reach the max dust volume and helpful pocket longer service life.

4) Middle separator: to make sure the air is pressed evenly throughout the bag.

Pocket Filter Media Parameter Sheet:

Standard Flow rate 32L/min Air Velocity @5.3cm/s

Weight (g/㎡) ±10%

 Color
China GB/T14295-93 EURO EN779:2002 EURO EN779:2012

Initial Resistance

(mmH2O)

Initial Efficiency

(%)
Medium F5 M5 1 55 150 White
Medium F6 M6 1.8 70 200 Green
Medium F7,F8 F7,F8 2 85 220

F7-Pink

F8-Light Yellow
Senior Medium F9 F9 2.4 90 240 Dark Yellow

F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll
