Laboratory AHU HVAC System H13 H14 Mini Pleat Flow Hood HEPA Filter
Laboratory AHU HVAC System H13 H14 Mini Pleat Flow Hood HEPA Filter
Laboratory AHU HVAC System H13 H14 Mini Pleat Flow Hood HEPA Filter
Laboratory AHU HVAC System H13 H14 Mini Pleat Flow Hood HEPA Filter
Laboratory AHU HVAC System H13 H14 Mini Pleat Flow Hood HEPA Filter
Laboratory AHU HVAC System H13 H14 Mini Pleat Flow Hood HEPA Filter
Specifications
Place of Origin :
Sichuan, China
Brand Name :
TRAIRF
Packaging Details :
1. Carton Package
2. Wooden Case
3. According to your requirement
Price :
$50.00/units 1-49 units
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Pieces per 2-30days
Product name :
Laminar Air Flow Hoods H13 H14 Mini Pleat Hepa Filter
Frame :
Aluminium Alloy , Galvanized, Stainless steel
Application :
Commercial & Industrial Ventilation System
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Type :
Panel
Material :
Fiberglass media
Initial Pressure :
220
Work Temperature :
100℃
Humidity :
80%RH
Description

Laboratory AHU HVAC System H13 H14 Mini Pleat Flow Hood HEPA Filter

Description

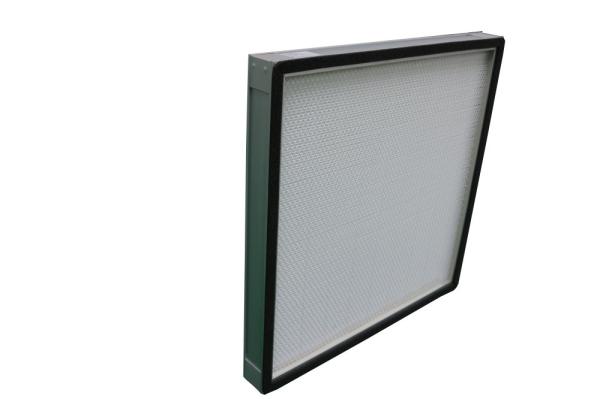

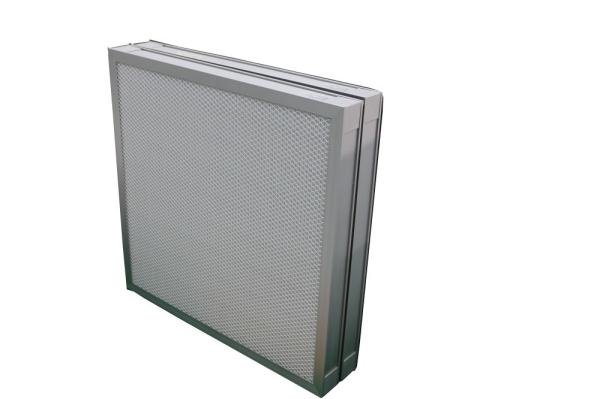

Terminal Filtration Panel Type Aluminium Alloy Frame HEPA Air Filters is made of mirco fiber glass with welded mesh, aluminium frame or galvanized frame are available, you can choose frame and size according to your using environment. It widely used as terminal filtration in all kinds of clean room or partly air purifier.

Specification:

Product Details

1.Style

Panel HEPA Filter

2.Feature

Dust collection, Large dust collection,High quality,High efficiency

3.Material

Micro Glass-fiber

4.Size

OEM,Customizing is welcome

5.Color

Silver,White

6.Frame

Aluminium Alloy Frame. SS

7.Separator

Odorless environmental Hot Melt Adhesive

8.Sealing Material

Non-volatile polyurethane

9.Application

Electronic,Biological pharmaceutical,Mechanical instrument,Petrochemical,light industry

10.Efficiency

99.99%

11.Packing

Cartons

12.Weight

Based on size&material,thickness

Purchase info

13.Minimum order

100pcs

14.Sample time

3-5 working days.

15.Lead time

15-20 days after get your payment,and based on the QTY

16.Payment

General take T/T.other payments also can be Negotiated

17.Unit Price

FOB Shanghai, Shenzhen, (also can CIF Desitination)

18.Brand

TRAIRF

19.certification

ISO9001, CE

Main Features:

1.Frame: stainless steel, aluminum alloy, galvanized plate
2.Filter media: Glass Fiber
3.Type: Panel air filter

4.Different size can be made according to your requirement

Parameter

Model

Dimensions(mm)

Airflow(m³/h)

Initial Resistance(Pa)

Efficiency(%)

Dust Capacity(g)

TR-WGB-1

610*610*50

700

≤220 or ≤140 HV

≥ 99.99

450

TR-WGB-2

915*610*50

1000

≤220 or ≤140 HV

≥ 99.99

680

TR-WGB-3

1220*610*50

1400

≤220 or ≤140 HV

≥ 99.99

900

TR-WGB-4

610*610*69

1000

≤220 or ≤140 HV

≥ 99.99

560

Advantages:

1.Air inlet and outlet side both with protect mesh

2.Low resistance , Large airflow area , High air flow

3. Long service life

4. High Leakproofness ,leak repairing good
