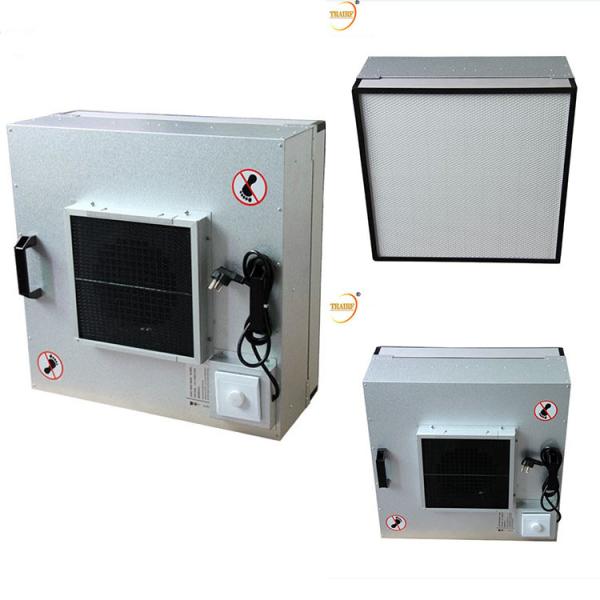

Aluminium Alloy Frame H14 HEPA Filter Laminar 19x19 FFU Unit
Aluminium Alloy Frame H14 HEPA Filter Laminar 19x19 FFU Unit
Aluminium Alloy Frame H14 HEPA Filter Laminar 19x19 FFU Unit
Aluminium Alloy Frame H14 HEPA Filter Laminar 19x19 FFU Unit
Aluminium Alloy Frame H14 HEPA Filter Laminar 19x19 FFU Unit
Aluminium Alloy Frame H14 HEPA Filter Laminar 19x19 FFU Unit
Specifications
Place of Origin :
Sichuan, China
Brand Name :
TRAIRF
Supply Ability :
10000 Set/Sets per Month H14 HEPA Filter Laminar 19x19
MOQ :
50
Price :
$125.00/sets 50-99 sets
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Delivery Time :
2-30days
Product name :
H14 HEPA Filter Laminar 19x19
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Efficiency :
99.99%
Construction :
Panel Filter
Body material :
Aluminium Alloy Frame
Filter Media :
HEPA Filter with Glass fiber media
Airflow :
900~2000 CMB/ H
Work Humidity :
80%
Work Temperature :
80 degree
Description

H14 HEPA Filter Laminar 19x19 FFU Unit

Description:

TRAIRF® HEPA Filter is made of ultra-fine fiberglass, it designed into continuity fold paper for providing larger filtration area. Mini-pleats media design also can extending filter life and decreasing filter pressure drop. Air can through media smoothly with low resistant. What’s more, folded media separated through hot melt adhesive to make sure there are no chemical pollution air release to our clean space. TRAIRF® HEPA Filter testing according to EN-1822 standard, filtration efficiency guaranteed from 99.97 % to 99.999 % for particles size at 0.3 micro meter.

Efficiency:

The series provide guarantee efficiency from 95.99%, 97.99%, 99.999% (EU12-EU14) or H10-H14 (per EN-1822 standard in MPPS Test) on 0.3 micrometer size particles HEPA filter.

Testing Method
Particle Size(um) 0.3um 0.1-0.2um
Efficiency(%) 95% 99.999% above
99.97%
99.99%
100.00%
According to EN-1822 standaed in MPPS Test

Material:

Metal Frame (Galvanized Steel and Aluminum in box type or header type) are available. TRAIRF® H14 HEPA Filter Operating Room Air Purification provide the maximum effective media area. With the advantages of long life span, light weight, easy handling of rejection and environment friendly.

Aluminium Alloy Frame H14 HEPA Filter Laminar 19x19 FFU Unit

Specifications

  • Light Weight Low cost Easy to installation
  • Fully disposable
  • Mechanical clamping structures
  • Thickness size available in 150 mm ,180 mm
  • Efficiencies of 95% up to 99.9995% @ 0.3 microns
  • Testing according to EN-1822 standard
  • Flammability: UL Classified Relative
  • Humidity: 100%
  • Standard Size
  • Aluminium Alloy Frame H14 HEPA Filter Laminar 19x19 FFU Unit
