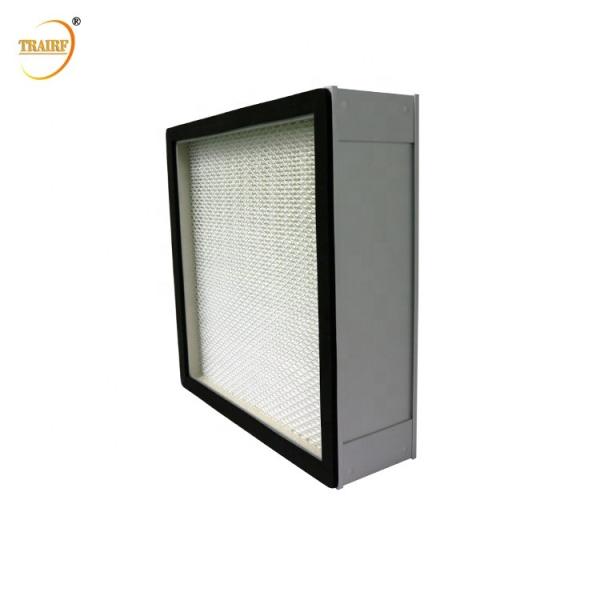

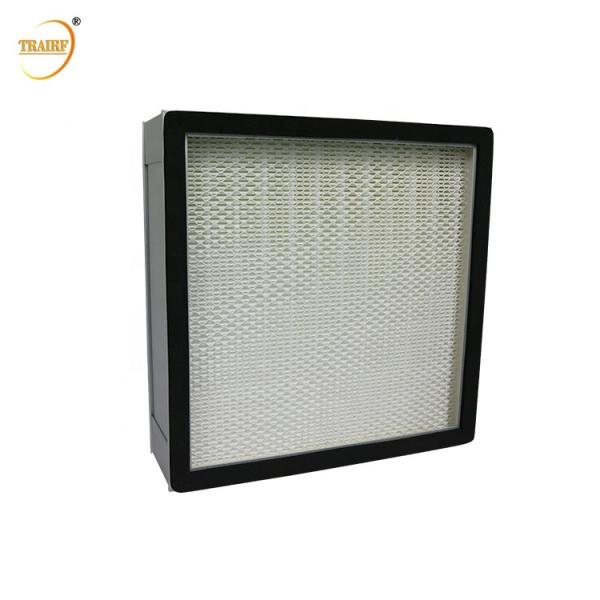

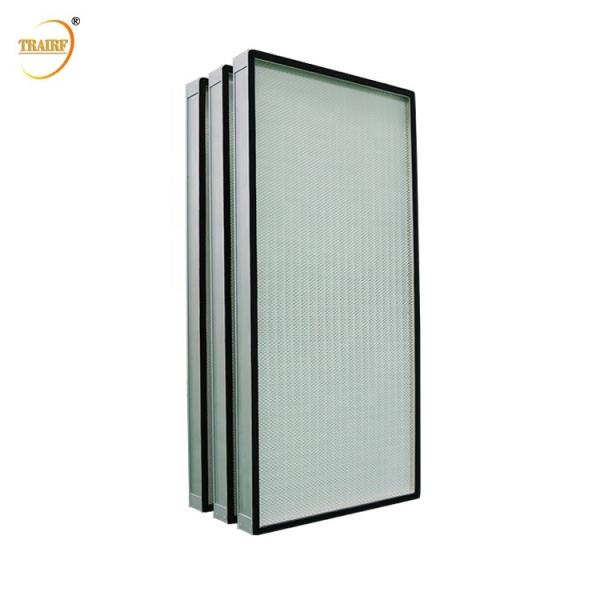

Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing
Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing
Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing
Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing
Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing
Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing
Specifications
Place of Origin :
Sichuan, China
Brand Name :
TRAIRF
Packaging Details :
1.FCL Order Filter packaged by 5 layers carton case.
2.LCL order filter packaged by wooden case.
3. According to customer's requirements.
MOQ :
10 pieces
Price :
$35.00/pieces 10-999 pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Pieces per 2-30days
Delivery Time :
2-30days
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Efficiency :
99.99%, H14
Construction :
Panel Filter
Porosity :
0.3um
Product name :
Mushroom Hepa Filter H14 for Laminar Air Flow Hood
Color :
Sliver
Function :
Fine Dust Filtration
Description


Mushroom Hepa Filter H14 for Laminar Air Flow Hood


Product Description

Material and performance

Product Name

Laminar flow hood hepa filter H14

Frame Material

Aluminum alloy ,galvanized steel,stainless steel 301

Filter media

High- quality Fiberglass filter paper

Partition

Hot melt adhesive

Sealant

Polyurethane adhesive

Separator

Paper/ Aluminum foil

Max. temperature

85°C

Max. humidity

80%RH

HEPA H14 Filter
Hepa air filters unit for cleanroom, is the terminal device in purified air supply system. It aims to provide the air with desirable static pressure before passing through HEPA filter, to enable uniform air-out.
The replacemrnt hepa requiring filed leak detection is provided with DOP dust and leakage detection mouth, and differential pressure detection mouth and lower damper based on customer’s requirements.

Specifications:

Model

Dimensions (mm)

Airflow(m³/h)

Initial Resistance(Pa)

Efficiency(%)

Dust Capacity(g)

TR-WGB-1

610*610*50

700

≤220 or ≤140 HV

≥99.99

450

TR-WGB-2

915*610*50

1000

≤220 or ≤140 HV

≥99.99

680

TR-WGB-3

1220*610*50

1400

≤220 or ≤140 HV

≥99.99

900

TR-WGB-4

610*610*69

1000

≤220 or ≤140 HV

≥99.99

560

TR-WGB-5

915*610*69

1500

≤220 or ≤140 HV

≥99.99

840

TR-WGB-6

1220*610*69

2000

≤220 or ≤140 HV

≥99.99

1120

TR-WGB-7

610*610*80

1200

≤220 or ≤140 HV

≥99.99

650

TR-WGB-8

610*610*90

1400

≤220 or ≤140 HV

≥99.99

750

TR-WGB-9

610*610*100

1600

≤220 or ≤140 HV

≥99.99

850

TR-WGB-10

1170*570*69

1800

≤220 or ≤140 HV

≥99.99

1000

TR-WGB-11

1170*570*80

2200

≤220 or ≤140 HV

≥99.99

1250

TR-WGB-12

1220*610*80

2500

≤220 or ≤140 HV

≥99.99

1300

TR-WGB-13

1220*610*90

2800

≤220 or ≤140 HV

≥99.99

1500

TR-WGB-14

1220*610*100

3200

≤220 or ≤140 HV

≥99.99

1700

* Customizable Size


HEPA filters are designed to arrest very fine particles (dust) effectively.
Dust hepa filter sheet is widely used in clean rooms. Besides, hepa air purifier(air cleaner) also suitable for ventilation system and havc system.

There are a number of sealing modes, such as dry-type sealing, wet-type sealing, dry & wet double sealing negative pressure type, wet-type double sealing negative pressure type available for customer’s option. The case material may be plastic-spry steel plate, S304 stainless steel plate, aluminum alloy section, etc.

Product Advantage



Fine Dust Filtration 99.99% H14 HEPA Flow Hood Filter Mushroom Growing


Details:
1.Strong aluminum alloy frame to protect whole structure.
2.Hard-wearing rubber to prevent scratches on the frame.
3.Perfect adhesive pouring technology to ensure no air leak.
4.Fiber Glass Filter Paper:high efficiency media, high dust holding capacity
and low resistance.

Applications:
HEPA air filter suits for all industrial filtration workplaces.
For example,Laminar Air Flow Hood, Biomedical,Vehicles,Airlines,Heating, air conditioning,respiratory protection, clean rooms, industrial processes, and building ventilation systems, Whole House Air Cleaning Systems, Electronic Air Filters for High-End Residential & Commercial Facilities.

Package details:
1.FCL Order Filter packaged by 5 layers carton case.
2.LCL order filter packaged by wooden case.
3. According to customer's requirements.
