Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System
Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System
Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System
Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System
Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System
Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System
Specifications
Brand Name :
trairf
Model Number :
320*320*46mm
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 7.56-9.12 piece
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per 7-12 days
Delivery Time :
7-12 work days
Packaging Details :
carton box
weight :
1KG
efficiency :
40-90%
color :
green
frame :
aluminum alloy frame
package :
carton box
shape :
rectangle
Description

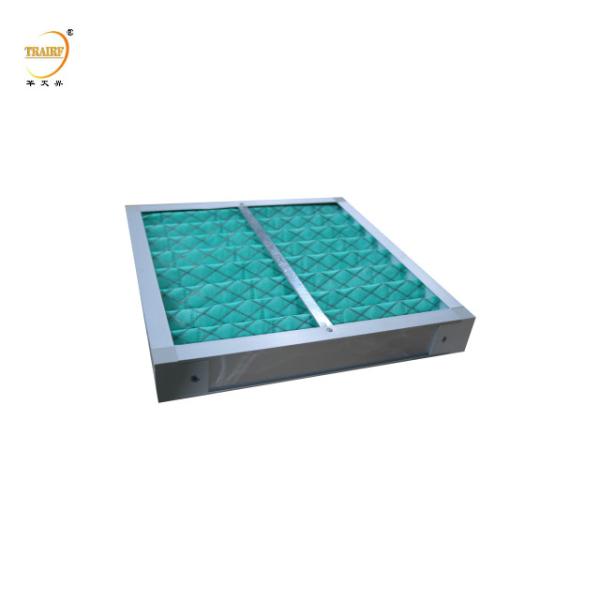

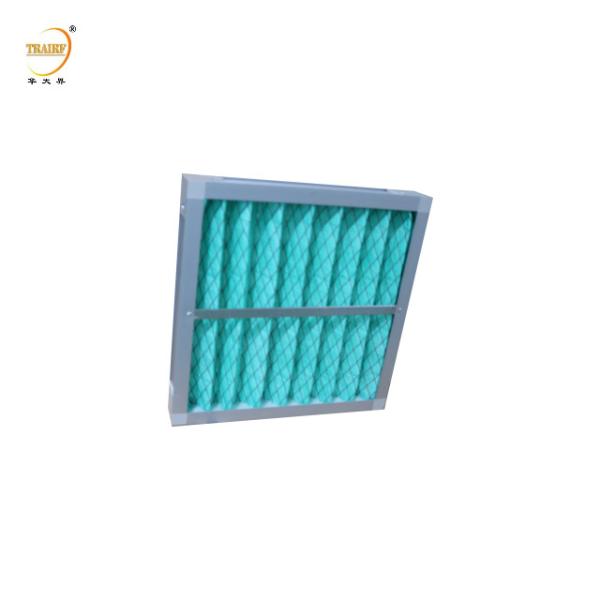

Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System

Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.
Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation SystemSecondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System
Features
Color: green
External frame: Aluminum Alloy frame
Material: cotton
Construction: Panel filter
*Long service life
* Large dust holding capacity
*Can be reused many times
*Small resistance, high air volume, low wind speed
Product parameters
Model Outside dimension(mm) Rated air flow(m³/h) Initial resistance(Pa) Efficiency(class) Model of filter media
TR-CX-P1
295×295×10/20mm
12”×12” ×1/2”/1”
 800m³/h 25-50Pa 40% weight

G2

G3

G4
Nylon nets
Early effect filter cotton
Corrugated aluminium nets
TR-CX-P2
495×295×10/20mm
20”×12” ×1/2”/1”
 1300m³/h
TR-CX-P3
495×495×10/20mm
20”×20” ×1/2”/1”
 2200m³/h
TR-CX-P4
595×295×10/20mm
24”×12” ×1/2”/1
 1600m³/h
TR-CX-P5
595×495×10/20mm
24”×20” ×1/2”/1”
 2700m³/h
TR-CX-P6
595×595×10/20mm
24”×24” ×1/2”/1”
 3200m³/h

*Customizable size

Matters needing attention for air filters:
1. After cleaning the filter cloth, if the initial resistance value of the filter is lower than the initial resistance value of the filter installed for the first time, it should not be used and replaced in time;The filter should be replaced even if the pressure difference is greater than the initial value after two times of cleaning.

2. When taking the HEPA filter, the case should be carried upside down to make the HEPA filter land smoothly.
3. After cleaning the filter, check whether it is damaged or not, and replace it in time. Do not rub, machine wash or shake dry.
4. In the cleaning process, the primary and middle effect filter should not be confused, and should be numbered in order to distinguish.
5. Each air purification system should have a set of spare filters to be replaced in time when cleaning.
Product line
Secondary Air Conditioning Filter With Aluminium Frame Air Filter for Industry Ventilation System
FAQ
1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit

4. why should you buy from us not from other suppliers?
1. Turth Factory Supply you with Factory Price 2. 7-10 days Short Delivery Time base on Strong Producing Strength 3.With more than 10 Year OEM Service Experience in Air Filter Field 4. Products Quality are Guaranteed with ISO9001 & CE Certificate

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
