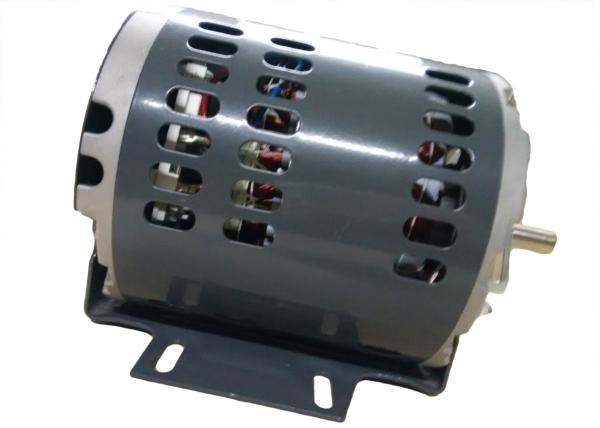

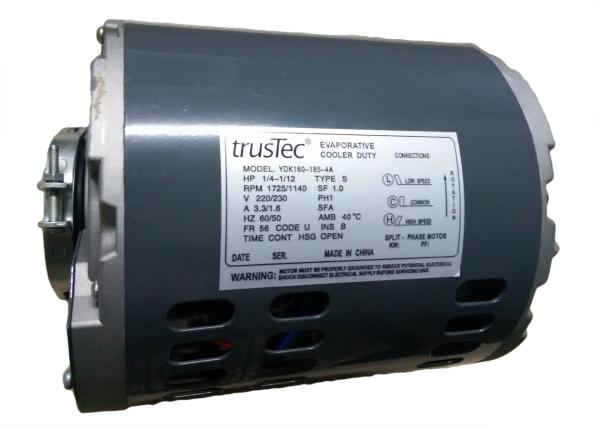

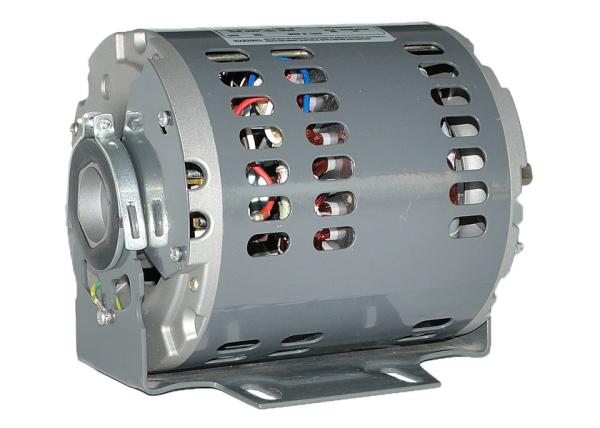

250W 220V Air Cooling Fan Motor 4 Pole , 1/3 HP Fan Motor Replacement
250W 220V Air Cooling Fan Motor 4 Pole , 1/3 HP Fan Motor Replacement
250W 220V Air Cooling Fan Motor 4 Pole , 1/3 HP Fan Motor Replacement
250W 220V Air Cooling Fan Motor 4 Pole , 1/3 HP Fan Motor Replacement
250W 220V Air Cooling Fan Motor 4 Pole , 1/3 HP Fan Motor Replacement
250W 220V Air Cooling Fan Motor 4 Pole , 1/3 HP Fan Motor Replacement
Specifications
Brand Name :
trusTec
Model Number :
YDK160-245-4A2
Certification :
UL Approval E529388，CE approval
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Frequency :
50Hz
Voltage :
220/230V
Pole :
4
Application :
Air cooler
Speed :
1425/1725RPM
Insulation class :
B
Output Power :
250W 1/3HP
Motor Diameter :
160mm
Product Name :
Air Cooler Motor
ODM Solutions :
ODM Solutions: Customized AC and EC motors
Description

250W 220V Air Cooling Fan Motor 4 Pole , 1/3 HP Fan Motor Replacement


Product specification:


Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered .

Model

Power

(HP)

Voltage

(V)

Frequency

(Hz)

Speed

(RPM)

 Rotation Insulation Class
YDK140-150-6T5 1/5 220-240 50 850/3 SPD CCW B
YDK160-185-4A 1/4 115/127 50/60 1425/1725 CW-SE B
YDK160-185-4A2 1/4 220/230 50/60 1425/1725 CW-SE B
YDK160-245-4A 1/3 115/127 50/60 1425/1725 CW-SE B
YDK160-245-4A2 1/3 220/230 50/60 1425/1725 CW-SE B
YDK160-375-4A 1/2 115/127 50/60 1425/1725 CW-SE B
YDK160-375-4A2 1/2 220/230 50/60 1425/1725 CW-SE B
YDK160-550-4A 3/4 115/127 50/60 1425/1725 CW-SE B
YDK160-550-4A2 3/4 220/230 50/60 1425/1725 CW-SE B
YDK160-735-4A 1 115/127 50/60 1425/1725 CW-SE B
YDK160-735-4A2 1 220/230 50/60 1425/1725 CW-SE B

Product features:

1. Low Noise.
2. Steady quatlity.
3. Long Expectancy.
4. Large Wind Amount.
5. Imported equipment & technical assistance.
6. Low temperature rise and a strong adaptability to the environment.
7. 100% pure copper, aluminum motor can also be available if customer need large quantity.


Product use:


1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.

Strong points:
1. We offer Professional Free Design for you.
2. Customized Fan Motor as customers' requirements (about size, airflow, speed, volt ect).
3. We support Prompt Delivery with best quality.
4. Quality approvals (ISO9001, CE, UL).
5. OEM, Low MOQ are supported.
About company:

Our new export company was established in 2011, factory occupied a land area of 20000 square meters and specialized in hvac fan motors manufacturing for 20 years.


Owing good service, variety of high quality products and competitive price.


We ensure efficient delivery, enjoying a good reputation among our customers.

FAQ:

Q1- What is the warranty of the motors?
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.

Q2- Can you design the motor according to the different request?
Yes, we can offer the ODM.

Q3- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
