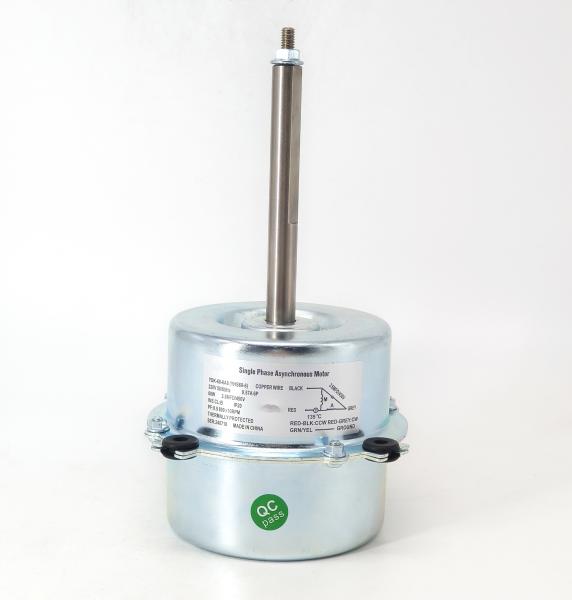

220V 50/60Hz 60W 800RPM AC Motor for Outdoor Air Conditioning Asynchronous Motor
220V 50/60Hz 60W 800RPM AC Motor for Outdoor Air Conditioning Asynchronous Motor
220V 50/60Hz 60W 800RPM AC Motor for Outdoor Air Conditioning Asynchronous Motor
220V 50/60Hz 60W 800RPM AC Motor for Outdoor Air Conditioning Asynchronous Motor
220V 50/60Hz 60W 800RPM AC Motor for Outdoor Air Conditioning Asynchronous Motor
220V 50/60Hz 60W 800RPM AC Motor for Outdoor Air Conditioning Asynchronous Motor
220V 50/60Hz 60W 800RPM AC Motor for Outdoor Air Conditioning Asynchronous Motor
220V 50/60Hz 60W 800RPM AC Motor for Outdoor Air Conditioning Asynchronous Motor
Specifications
Brand Name :
trusTec
Model Number :
YDK-60-6A8-SGR
Certification :
CE
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Outdoor Fan Motor
Frame Size :
95mm
Motor Type :
Permanent Split Capacitor
Supply Voltage :
220V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
50/60Hz
Thermal Overload :
Equipped with an Automatic Thermal Overload
Current :
0.57A
Phase :
Single Phase
Output HP :
60W
Shaft Flats :
One flat
Rated Speed :
800±10RPM
Bearings :
Ball Bearing
Pole :
6P
Mounting :
Stud Mounting All Angel
Capacitor :
3.5MFD/450V
Insulation Class :
Class B
Shaft Diameter :
0.5" /12.7mm
Rotation :
CW/CCW
Shaft Length :
5.25" /133.41mm
Max. Ambient Temperature :
40℃/104℉
Flat Length :
2.58" /65.6mm
Protection Class :
IP20
Lead Length :
45.67" /1160mm
Description
