Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl
Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl
Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl
Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl
Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl
Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl
Specifications
Brand Name :
HWASHI
Model Number :
WL-AMF-160K
Certification :
CE/CCC/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
Product Name :
HWASHI Automatic Seam Welding Machine for Italian Type Stainless Steel Kitchen Double Sink Bowl
Size :
customized
Condition :
New
Warranty :
12months
Certificate :
CE/CCC/ISO
Service Life :
8-10 years
Description

HWASHI Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

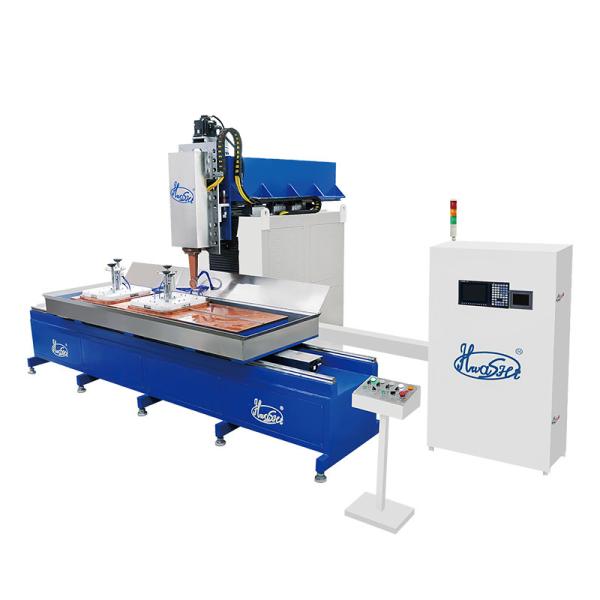

Description Of The Seam Welding Machine
This seam welding machine replaces the spot welding electrode with circle welding wheel, which is high efficiency and high quality. It basically achieves automation and completely meet the intelligent requirement of human-machine conversation.

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl
Japan Mitsubishi CNC Control System
Adopts three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel).

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

Auto Moving Welding Table
Specially designed electrode large table, more stable conductivity, to ensure the effectiveness of welding.

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

Big Copper Flat Table Electrode and Fixture
We will design the fixture according to the design of your sink bowl.

Different sizes may require different fixtures.

Be able to do welding of single bowl, double-bowl, or three-bowl product.

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

Welding electrode

Synchronized operation of welding electrodes and Moving Welding Table,

Automatic welding of sink, Uniform and beautiful welding seam.

Technical Parameter Of The Seam Welding Machine

Item Parameter
Control Mode PLC
Effective Welding Length 1600mm
Effective Welding Width 600mm
Table Size 1600x600mm
Feeder Driving Force Servo System
Max. Running Speed 300mm/s(without welding)
Welding Speed 25-35mm/s
Fixture Driving Force Cylinder
Machine Covering Space L5000mmxW3000mm
Rated Capacity 160KVA
Duty Cycle Rated 50％
Frequency 1000HZ
Control Heating Adjusting Range 15%～99%
Max. Output Voltage DC9.8V
Secondary Max. Short Circuit Current 23KA
Time Adjustment 0～999ms
Control Mode PLC
Effective Welding Length 1600mm
Effective Welding Width 600mm
Table Size 1600x600mm
Feeder Driving Force Servo System
Max. Running Speed 300mm/s(without welding)
Welding Speed 25-35mm/s
Fixture Driving Force Cylinder
Machine Covering Space L5000mmxW3000mm
Rated Capacity 160KVA
Duty Cycle Rated 50％
Frequency 1000HZ
Control Heating Adjusting Range 15%～99%
Max. Output Voltage DC9.8V
Secondary Max. Short Circuit Current 23KA
Time Adjustment 0～999ms

Application Of The Seam Welding Machine

Welding and grinding different shapes of kitchen sink.

Samples Of The Seam Welding Machine

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink BowlAutomatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

Related machine Related to The Seam Welding Machine

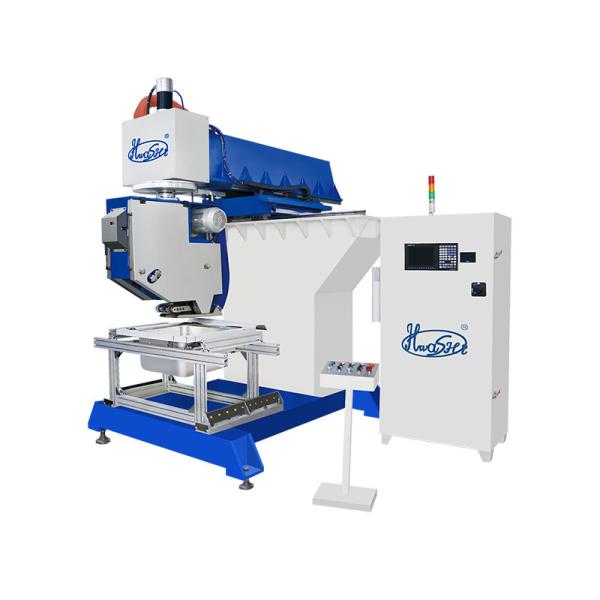

CNC Sink Edges Grinding and Polishing Machine
This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.
Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

Brown belt (fine abrasive belt) Blue belt (coarse abrasive belt) Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

Auto Moving Table and Fixture Structure

For sink bowl within 1500mm, we can choose to use fixed table with adjustable fixture. For sink bowl over the limit, we can design the automatic moving feeder to achieve full automatic grinding and polishing.

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl

CNC Sink Seam Welding Machine		 Model WL-AMF-160K
Input Power (V/φ) 380V 3φ
Rated Power (KVA) 160/250KVA (as per material thickness)
Applicable Material Stainless Steel 304/201
Material Thickness 0.8~1.5mm (customized)
Effective Welding Length 1600-3000mm (customized)
Effective Welding Width 600-800mm (customized)
Sink Bowl Shape Square/Rectangular/Round
Welding Efficiency about 40-60sec/bowl (depend on the size of bowl)
CNC Sink Edge Grinding and Polishing Machine		 Max. Moving Speed 500mm/sec
Belt Rotation Speed 1200R/min
Min. Radius R40
Rated Air Pressure 0.6MPa
Grinding Efficiency about 2min/bowl (depend on the size of bowl)

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink BowlAutomatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink BowlAutomatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Double Sink Bowl
