IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
Specifications
Brand Name :
HWASHI
Model Number :
WL-SQ-MF160Kx6
Certification :
CE/CCC/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
product name :
WL-SQ-MF160Kx6
condition :
new
warranty :
12 months
service life :
8-10 years
application :
IBC 1000L Water Tank Stainless Steel Cage
Description

Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

Description of Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainles Steel Cage

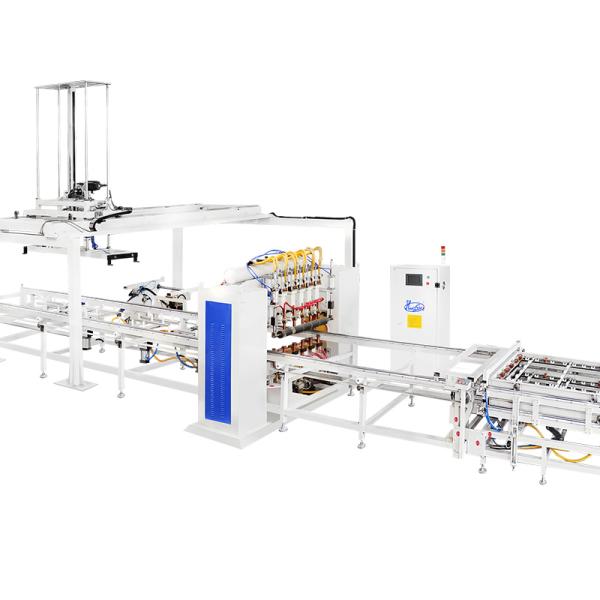

Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically. We can add the automatic loading and unloading device for the base frame welding machine as per your requirement.

Features of Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

Gantry structure with the advantage of high rigidity and stable running Medium frequency inverter power supply system with the features of electricity and energy saving

Automatic stepping welding and automatic demolding device

 6 sets of welding head and 4 sets of power supply systems(The welding current of each single point could be adjusted independently in order to ensure the reliability of welding spot.

Hole Making Efficiency and Quality
Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage is using hydraulic force. It will takes about 25-30sec to complete the complete process.

  • Pressing heads with pressing mold
  • Hydraulic station
  • Punching head locating panel
  • Left-right, forward-backward adjustable loacing panel can make the punching position in a wider using range.​

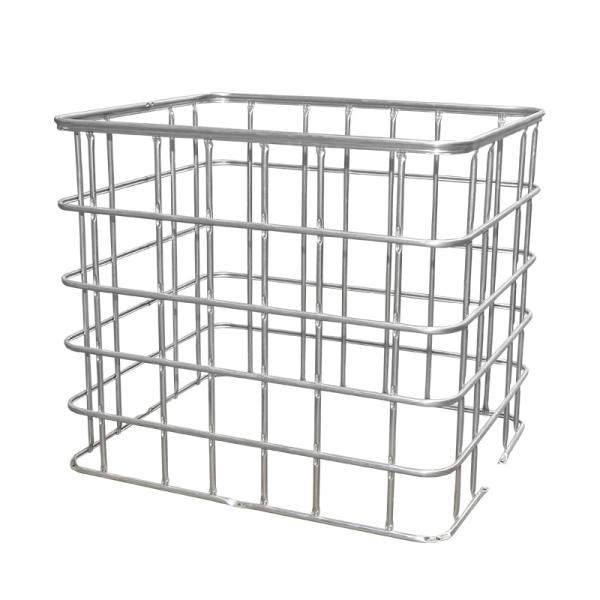

Samples of Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

Parameters of Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

Items Data
Electricity Requirement Three-phase Four Wires 380V±10%
Electricity Requirement 400KVA,air switch 600A
Control Method PLC
Effective Welding Width 1200mm
Effective Welding Length 4000mm
Cooling Water Temperature 15-25℃
Required Operator Number 2 people

Running Process Of The IBC Cage Frame Automatic Production Line

Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame

IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

Our Company

IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

Cooperated Customers

IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
